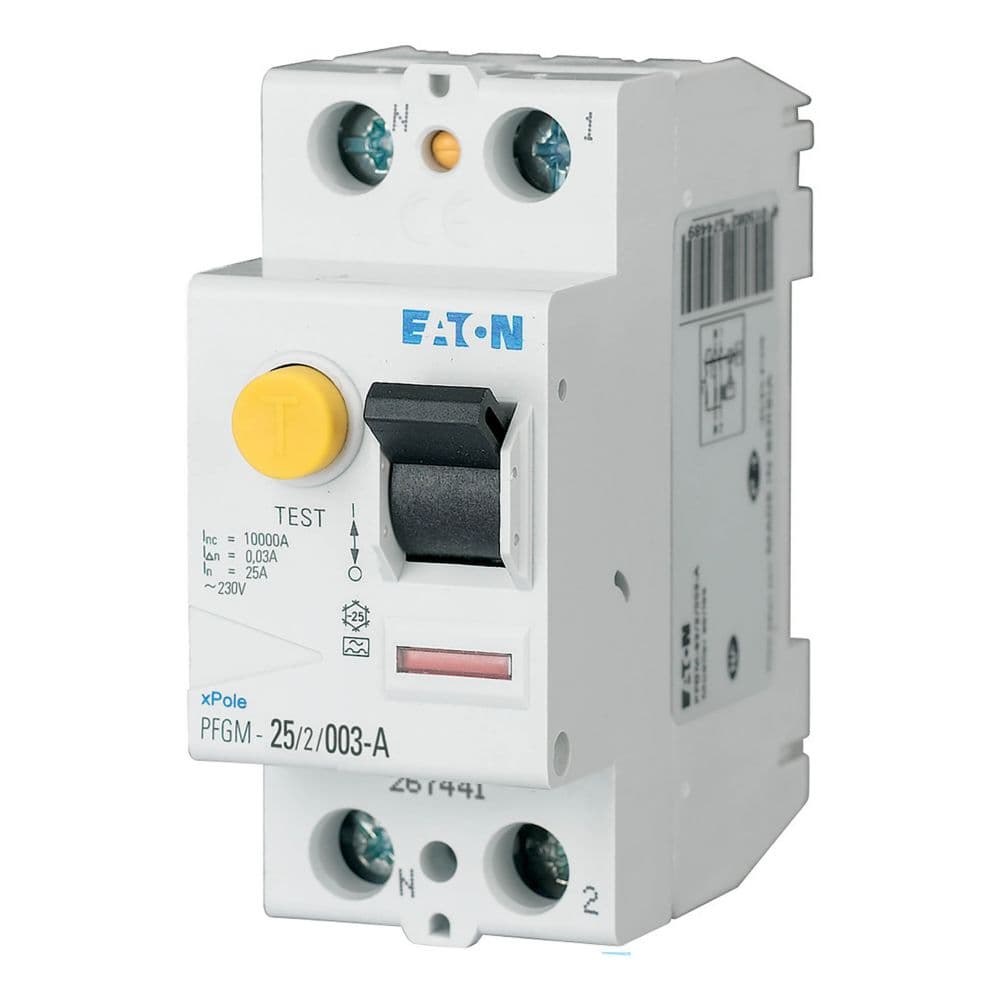

Eaton Moeller series xPole - PFGM RCCB

المواصفات

Ambient operating temperature - max	55 °C
Ambient operating temperature - min	-25 °C
Climatic proofing	25-55 °C / 90-95% relative humidity according to IEC 60068-2
RAL-number	7035
Special features	Maximum operating temperature is 55 °C: Starting at 40 °C, the max. permissible continuous current decreases by 3% for every 1 °CTripping signal contact for subsequent installation Z-NHK 248434
Product Name	Eaton Moeller series xPole - PFGM RCCB
Catalog Number	267441
Model Code	PFGM-25/2/003-A
EAN	4015082674410
Product Length/Depth	76 mm
Product Height	80 mm
Product Width	35 mm
Product Weight	0.22 kg
Compliances	RoHS conform
Certifications	IEC/EN 61008
Source URL	https://www.eaton.com/gb/en-gb/skuPage.267441.html
Used with	Type A Residual current circuit breakers PFGM KLV-TC-2 276240 (Compact enclosure) Z-FW/LP 248296 (Remote control and automatic switching device) Z-RC/AK-2TE 285385 (sealing cover set)
Features	Residual current circuit breaker Additional equipment possible
Type	PFGMResidual current circuit breakersType A
10.10 Temperature rise	The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating	Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility	Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function	The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance	Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures	Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat	Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects	Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation	Meets the product standard's requirements.
10.2.5 Lifting	Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact	Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions	Meets the product standard's requirements.
10.3 Degree of protection of assemblies	Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances	Meets the product standard's requirements.
10.5 Protection against electric shock	Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components	Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections	Is the panel builder's responsibility.
10.8 Connections for external conductors	Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength	Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage	Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material	Is the panel builder's responsibility.
Degree of protection	IP20, IP40 with suitable enclosure IP20
Built-in depth	69.5 mm
Color	Gray
Width in number of modular spacings	2
Mounting method	Quick attachment with 2 latch positions for DIN-rail IEC/EN 60715 DIN rail
Fitted with:	Interlocking device IS/SPE-1TE 101911
Number of poles	Two-pole
Amperage Rating	25 A
Rated operational voltage (Ue) - max	230 V
Voltage rating	230 V AC
Terminal capacity (solid wire)	1.5 mm² - 35 mm²
Terminal capacity (stranded cable)	16 mm² (2x)
Rated operational current for specified heat dissipation (In)	25 A
Frequency rating	50 Hz
Pollution degree	2
Rated insulation voltage (Ui)	440 V
Frame	45 mm
Rated impulse withstand voltage (Uimp)	4 kV
Lifespan, mechanical	20000 operations
Voltage type	AC
Lifespan, electrical	4000 operations
Connectable conductor cross section (multi-wired) - max	16 mm²
Connectable conductor cross section (multi-wired) - min	1.5 mm²
Connectable conductor cross section (solid-core) - max	35 mm²
Connectable conductor cross section (solid-core) - min	1.5 mm²
Accessories required	Z-HK 248432
Heat dissipation per pole, current-dependent	0 W
Equipment heat dissipation, current-dependent	2 W
Application	Residual current circuit breaker for residential and commercial applicationsxPole - Switchgear for residential and commercial applications
Static heat dissipation, non-current-dependent	0 W
Heat dissipation capacity	0 W
Terminal protection	Finger and hand touch safe, DGUV VS3, EN 50274
Surge current capacity	0.25 kA
Fault current rating	30 mA
Impulse withstand current	Partly surge-proof 250 A
Leakage current type	A
Sensitivity type	Pulse-current sensitive
Rated short-time withstand current (Icw)	10 kA
Admissible back-up fuse overload - max	25 A gG/gL
Built-in width (number of units)	35 mm (2 SU)
Busbar material thickness	0.8 mm - 2 mm
Short-circuit rating	63 A (max. admissible back-up fuse)
Terminals (top and bottom)	Open mouthed/lift terminals
Permitted storage and transport temperature - max	60 °C
Permitted storage and transport temperature - min	-35 °C
Rated fault current - max	0.03 A
Rated fault current - min	0.03 A
Tripping time	Non-delayed
Rated short-circuit strength	10 kA
Test circuit range	196 V AC - 264 V AC
Rated residual making and breaking capacity	500 A
