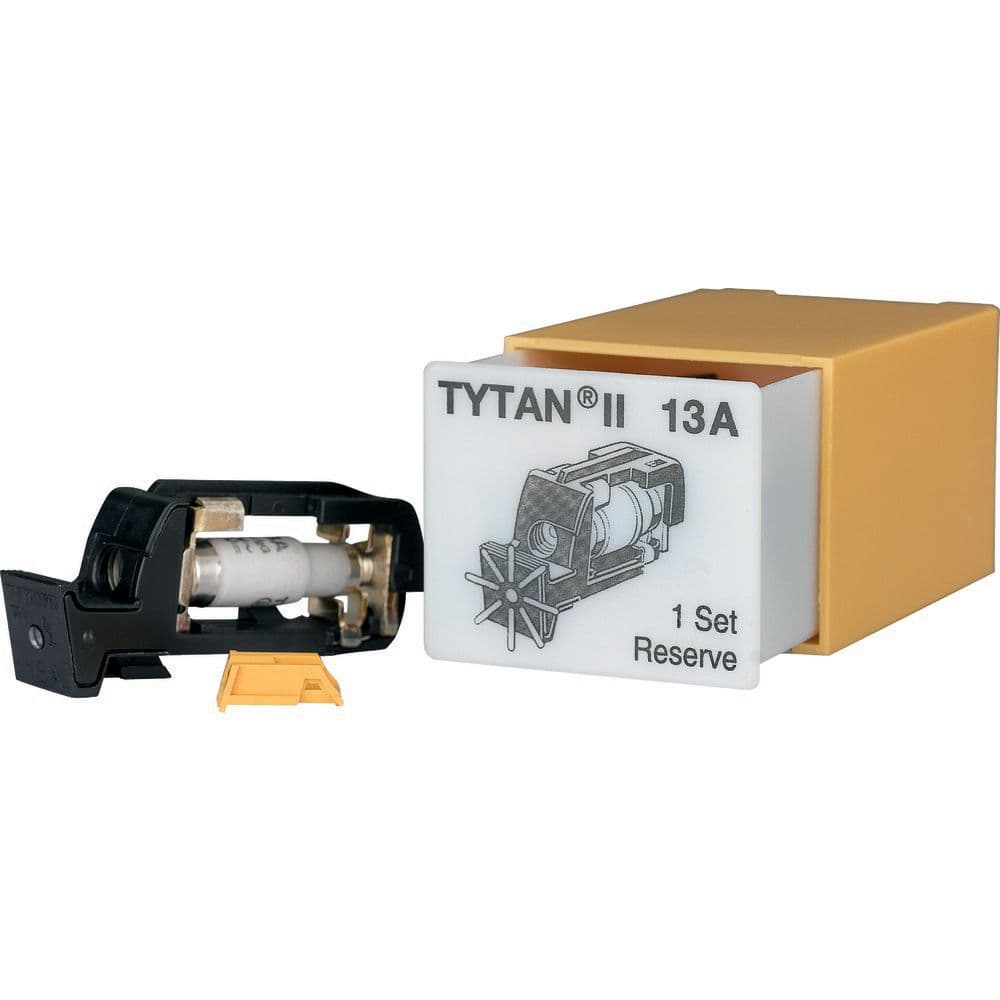

Eaton Distribution parts

Name: Eaton Distribution parts
Brand: Eaton
SKU: 268991

رقم القطعة: 268991

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Distribution parts

Ambient operating temperature - max	55 °C
Ambient operating temperature - min	-25 °C
Functions	Accessory
Special features	With flashing functionSnap-fit on DIN rail1 set consists of: 3 fuse-links, 3 current codings, 1 plastic box in the colour of the indicator
Product Name	Eaton Distribution parts
Catalog Number	268991
Model Code	Z-SLS/B-35A
EAN	4015082689919
Product Length/Depth	45 mm
Product Height	80 mm
Product Width	54 mm
Product Weight	0.145 kg
Compliances	RoHS conform
Source URL	https://www.eaton.com/gb/en-gb/skuPage.268991.html
Used with	Z-SLS/CEK Z-SLS/NEOZ Z-SLK/NEOZ Fuse links Accessory Fuse material Fuse set
Type	AccessoryFuse materialFuse set
Color	Black
Amperage Rating	35 A
Voltage rating at AC	50 - 400 V AC
Rated operational voltage (Ue) - max	400 V
Rated uninterrupted current (Iu)	35 A
Voltage rating	60 V AC - 400 V AC
Rated operational current for specified heat dissipation (In)	35 A
Voltage rating at DC	50 - 250 V DC
Frame	D02
Heat dissipation per pole, current-dependent	0 W
Equipment heat dissipation, current-dependent	2.8 W
Static heat dissipation, non-current-dependent	0 W
Heat dissipation capacity	0 W
Utilization category	gL/gG (cable protection/equipment protection) gG (gL)
Test voltage	5 KV
