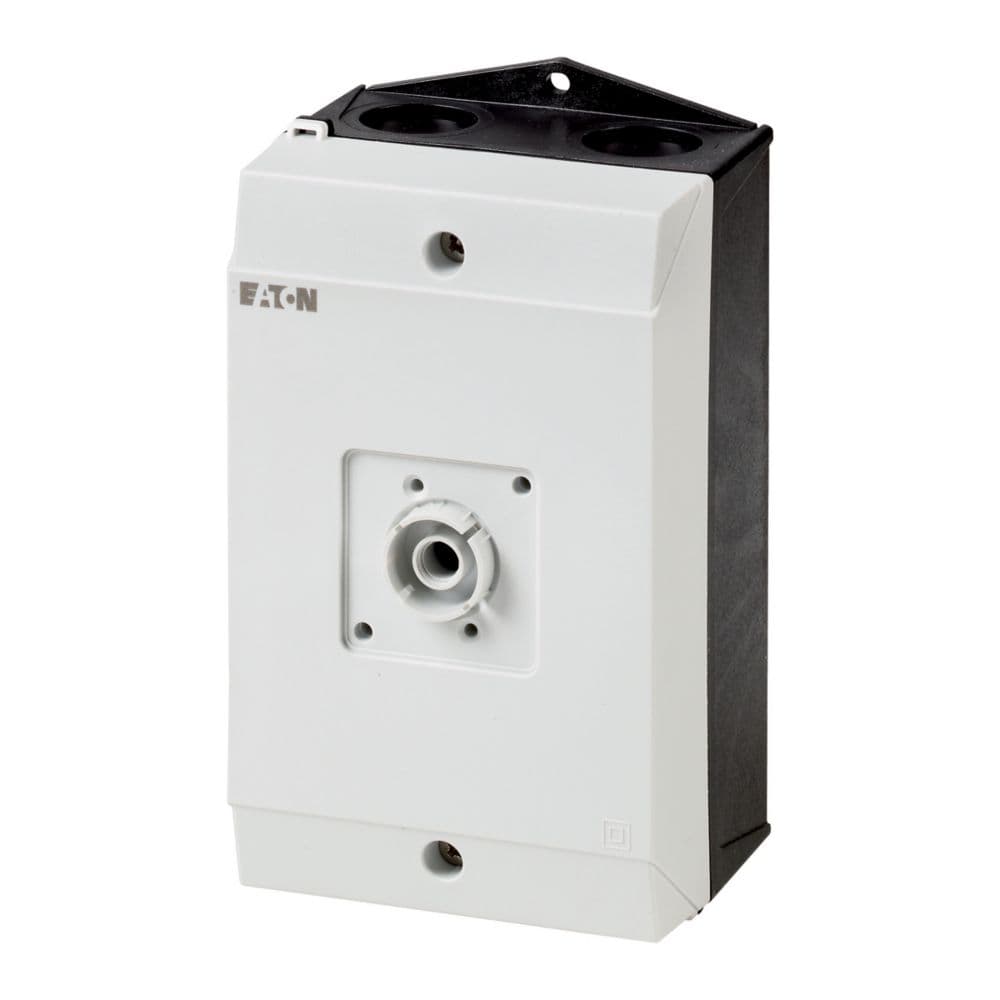

Eaton Moeller® series CI-K Insulated enclosure

Eaton

Eaton Moeller® series CI-K Insulated enclosure

رقم القطعة: 269462

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series CI-K Insulated enclosure

المواصفات

Ambient operating temperature - max40 °C
Ambient operating temperature - min-25 °C
Product NameEaton Moeller® series CI-K Insulated enclosure
Catalog Number269462
Model CodeCI-K2H-T3-2
EAN4015082694623
Product Length/Depth80 mm
Product Height180 mm
Product Width100 mm
Product Weight0.35 kg
CompliancesCE
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.269462.html
Catalog Notes1 contact unit = 2 contacts
Used withwith an additional PE clamp
TypeInsulated enclosure
10.10 Temperature riseThe panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit ratingIs the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibilityIs the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical functionThe device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistanceMeets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosuresMeets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heatMeets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effectsMeets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiationMeets the product standard's requirements.
10.2.5 LiftingDoes not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impactDoes not apply, since the entire switchgear needs to be evaluated.
10.2.7 InscriptionsMeets the product standard's requirements.
10.3 Degree of protection of assembliesDoes not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distancesMeets the product standard's requirements.
10.5 Protection against electric shockDoes not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and componentsDoes not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connectionsIs the panel builder's responsibility.
10.8 Connections for external conductorsIs the panel builder's responsibility.
10.9.2 Power-frequency electric strengthIs the panel builder's responsibility.
10.9.3 Impulse withstand voltageIs the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating materialIs the panel builder's responsibility.
Degree of protectionIP65 NEMA 12
Enclosure materialPlastic
ModelSurface mounting
Fitted with:Additional terminal Metric knockouts
Equipment heat dissipation, current-dependent Pvid0 W
Heat dissipation capacity Pdiss12.5 W
Heat dissipation per pole, current-dependent Pvid0 W
Rated operational current for specified heat dissipation (In)0 A
Static heat dissipation, non-current-dependent Pvs0 W
Radiated heat dissipation with separate mounting12.5 W (at an ambient temperature of 20 °C)
