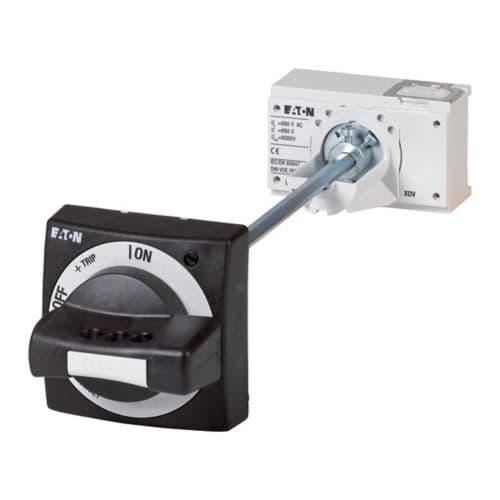

Eaton Moeller series NZM operating element NA

Eaton

Eaton Moeller series NZM operating element NA

رقم القطعة: 271447

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series NZM operating element NA

المواصفات

Special featuresComplete including rotary drive and coupling partsExtension shaft additionally required.Cannot be combined with mechanical interlockExternal warning plate/designation label can be clipped on.Door coupling rotary handle for operating the switch through a closed control panel door
Product NameEaton Moeller series NZM operating element NA
Catalog Number271447
Model CodeNZM3-XTVD-NA
EAN4015082714475
Product Length/Depth100 mm
Product Height230 mm
Product Width120 mm
Product Weight1.382 kg
CompliancesUL/CSA IEC RoHS conform
CertificationsIEC60947 UL489 UL (Category Control Number DIHS) CSA-C22.2 No. 5-09 CSA (File No. 22086) UL (File No. E140305) CE marking CSA (Class No. 1437-01) UL listed CSA certified
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.271447.html
Suitable forSwitch disconnector Power circuit breaker
Used withNZM3, N3
FeaturesLockable Standard: black / gray
TypeAccessoryDoor coupling rotary handle
Fitted with:Padlock
FrameNZM3
