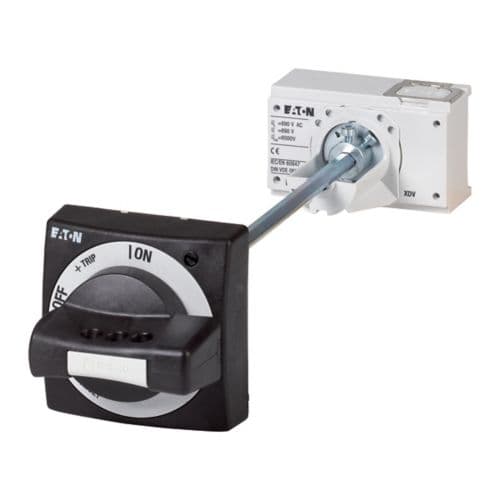

Eaton Moeller series NZM operating element

Eaton

Eaton Moeller series NZM operating element

رقم القطعة: 271509

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series NZM operating element

المواصفات

Special featuresComplete including rotary drive and coupling partsExtension shaft additionally required.For maximum shaft length 60 mmWithout shaft supportCannot be combined with NZM...-XDZ additional handleExternal warning plate/designation label can be clipped on.Door coupling rotary handle for operating the switch through a closed control panel door
Product NameEaton Moeller series NZM operating element
Catalog Number271509
Model CodeNZM2-XTVDV-60
EAN4015082715090
Product Length/Depth75 mm
Product Height190 mm
Product Width90 mm
Product Weight0.768 kg
CompliancesUL/CSA IEC RoHS conform
CertificationsCE marking CSA certified UL (File No. E140305) CSA (File No. 22086) UL489 UL listed CSA-C22.2 No. 5-09 UL (Category Control Number DIHS) CSA (Class No. 1437-01) IEC60947
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.271509.html
Suitable forPower circuit breaker Switch disconnector
Used withNZM2(-4), PN2(-4), N(S)2(-4)
FeaturesLockable Standard: black / gray
TypeAccessoryDoor coupling rotary handle
Fitted with:Padlock
FrameNZM2
