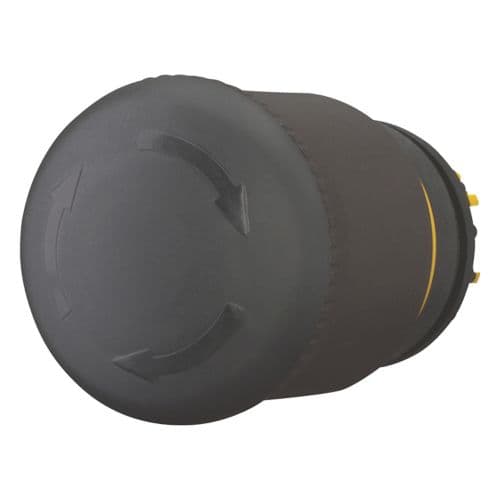

Eaton Moeller® series M22 stop button

Eaton

Eaton Moeller® series M22 stop button

رقم القطعة: 271540

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series M22 stop button

المواصفات

Product NameEaton Moeller® series M22 stop button
Catalog Number271540
Model CodeM22S-PVLT
EAN4015082715403
Product Length/Depth38 mm
Product Height70 mm
Product Width38 mm
Product Weight0.045 kg
CertificationsCSA File No.: 012528 CSA-C22.2 No. 14-05 UL UL Category Control No.: NKCR CSA UL 508 CSA-C22.2 No. 94-91 IEC/EN 60947-5 CE IEC/EN 60947 UL File No.: E29184 CSA Class No.: 3211-03 VDE 0660 DNV GL LR
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.271540.html
Catalog NotesMax. Configuration: 4 x M22-(C)K01, …10 or 2 x M22-(C)K02, …20, …11 and 1 x M22-(F)LED... - When using M22-PVL… with 1 x M22-K01SMC10 (single channel), article M22-XSMC (order no.: 173030) is required. Order this item separately.
Actuator functionSwitching function latching Turn-to-release
Actuator colorBlack
ColorBlack
DesignMushroom-shaped Classical
Actuating force50 N
Actuator diameter38 mm
IlluminationIlluminated with LED element
Unlocking methodTurn-release
