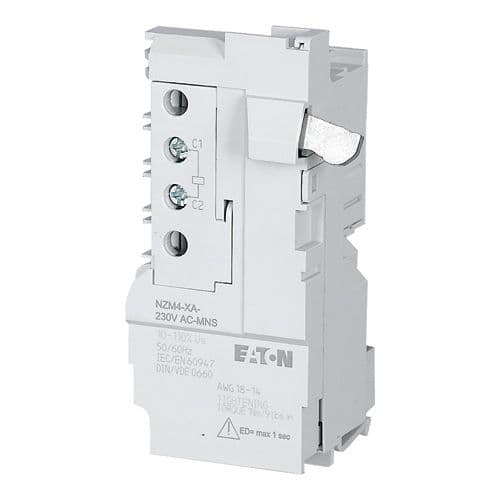

Eaton Moeller series NZM Shunt release

Eaton

Eaton Moeller series NZM Shunt release

رقم القطعة: 274141

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series NZM Shunt release

المواصفات

Special featuresShunt release for mesh network circuit-breakers in conjunction with NZM-XZM capacitor unitOnly for short-time operation with a maximum on-time = 1 sOperating range 10 - 110 % Usnot UL/CSA approvedRated control voltage 230 V ACCannot be installed simultaneously with NZM...-XHIV... early-make auxiliary contact or NZM...-XU... undervoltage release.Cannot be used in conjunction with NZM...-XR... remote operator.Intermittent operation guaranteed by series connection of an M22-(C)K10 make contact.Early-make time of integrated auxiliary contact upon switching on and off (manual operation): approx. 20 ms.
Product NameEaton Moeller series NZM Shunt release
Catalog Number274141

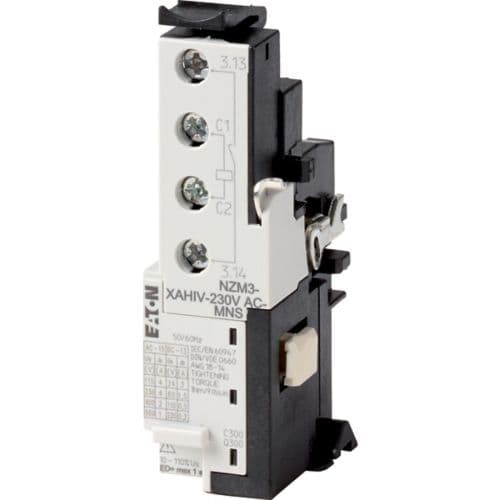

Model CodeNZM3-XAHIV-230AC-MNS
EAN4015082741419
Product Length/Depth42 mm
Product Height90 mm
Product Width30 mm
Product Weight0.064 kg
CompliancesIEC RoHS conform
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.274141.html
Suitable forOff-load switch
Used withNZM3(-4), N(S)3(-4)
TypeAccessoryShunt release
Fitted with:Early-make auxiliary contact
FrameNZM3
