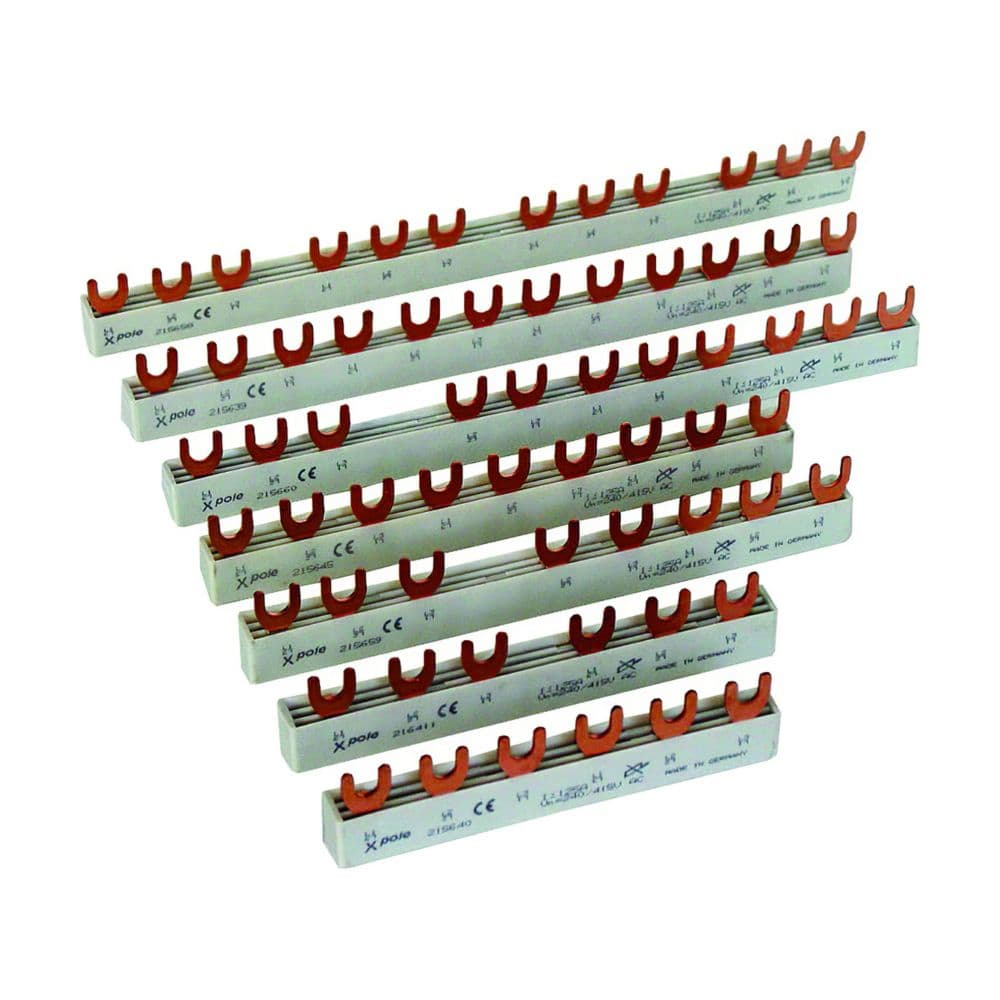

Eaton Moeller series busbar

Name: Eaton Moeller series busbar
Brand: Eaton
SKU: 274161

رقم القطعة: 274161

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series busbar

Functions	Busbar
Product Name	Eaton Moeller series busbar
Catalog Number	274161
Model Code	EVG-3P+3N/18MODUL
EAN	4015082741617
Product Length/Depth	27 mm
Product Height	14 mm
Product Width	323 mm
Product Weight	0.163 kg
Compliances	RoHS conform
Certifications	CE
Source URL	https://www.eaton.com/gb/en-gb/skuPage.274161.html
Suitable for	Devices with N-busbar 9 devices
Used with	EVG Busbar
Features	Insulated
Type	BusbarEVG
Color	Other
Accessory/spare part type	Busbar for combined residual current/power circuit breaker Busbar for residual current circuit breakers Busbar for miniature circuit breaker
Electric connection type	Fork
Number of poles	Four-pole
Rated operational voltage (Ue) - max	415 V
Rated uninterrupted current (Iu)	63 A
Cross section	10 mm²
Rated conditional short-circuit current (Iq)	25 kA
Rated surge voltage	4 KV
Suitable for number of devices	9
Number of modular spacings	18
Number of phases	4
