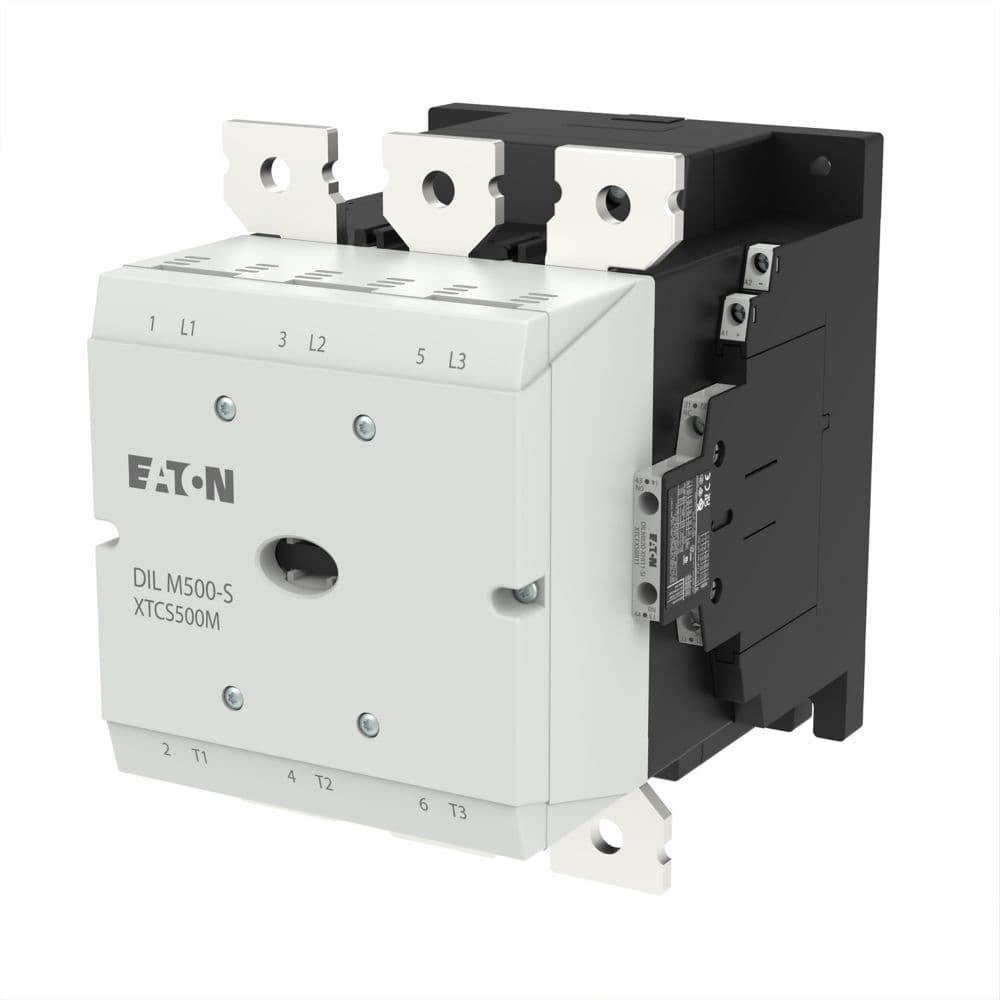

Eaton Moeller® series DILM Contactor

Eaton

Eaton Moeller® series DILM Contactor

رقم القطعة: 274196

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series DILM Contactor

المواصفات

Product NameEaton Moeller® series DILM Contactor
Catalog Number274196
Model CodeDILM400-S/22(220-240V50/60HZ)
EAN4015082741969
Product Length/Depth216 mm
Product Height209 mm
Product Width160 mm
Product Weight8.42 kg
CompliancesCE Marked
CertificationsCSA Class No.: 3211-04 VDE 0660 UL Category Control No.: NLDX IEC/EN 60947-4-1 UL 60947-4-1 UL File No.: E29096 UL/CSA CSA file No. 012528 North America (UL listed, CSA certified) EN 45545: Fire protection on railway vehicles IEC 61373: Vibration and shock, tested for category 1 class B CE marking
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.274196.html
Catalog NotesContacts according to EN 50012Also tested according to AC-3e up to 500 V.Also suitable for motors with efficiency class IE3.EN 45545 - Fire protection on railway vehicles: Fire protection class of all plastics according to UL94: V-0 / plastic weight in total: 2.576 kgConventional thermal current Ith of main contacts (1-pole, open) at 60°
Conventional thermal current Ith at 40°C (3-pole, open)612 A
Conventional thermal current Ith at 50°C (3-pole, open)548 A
Conventional thermal current Ith at 55°C (3-pole, open)522 A
Conventional thermal current Ith at 60°C (3-pole, open)500 A
Conventional thermal current Ith of main contacts (1-pole, open)1250 A
Conventional thermal current Ith (1-pole, enclosed)1125 A
Conventional thermal current Ith (3-pole, enclosed)450 A
