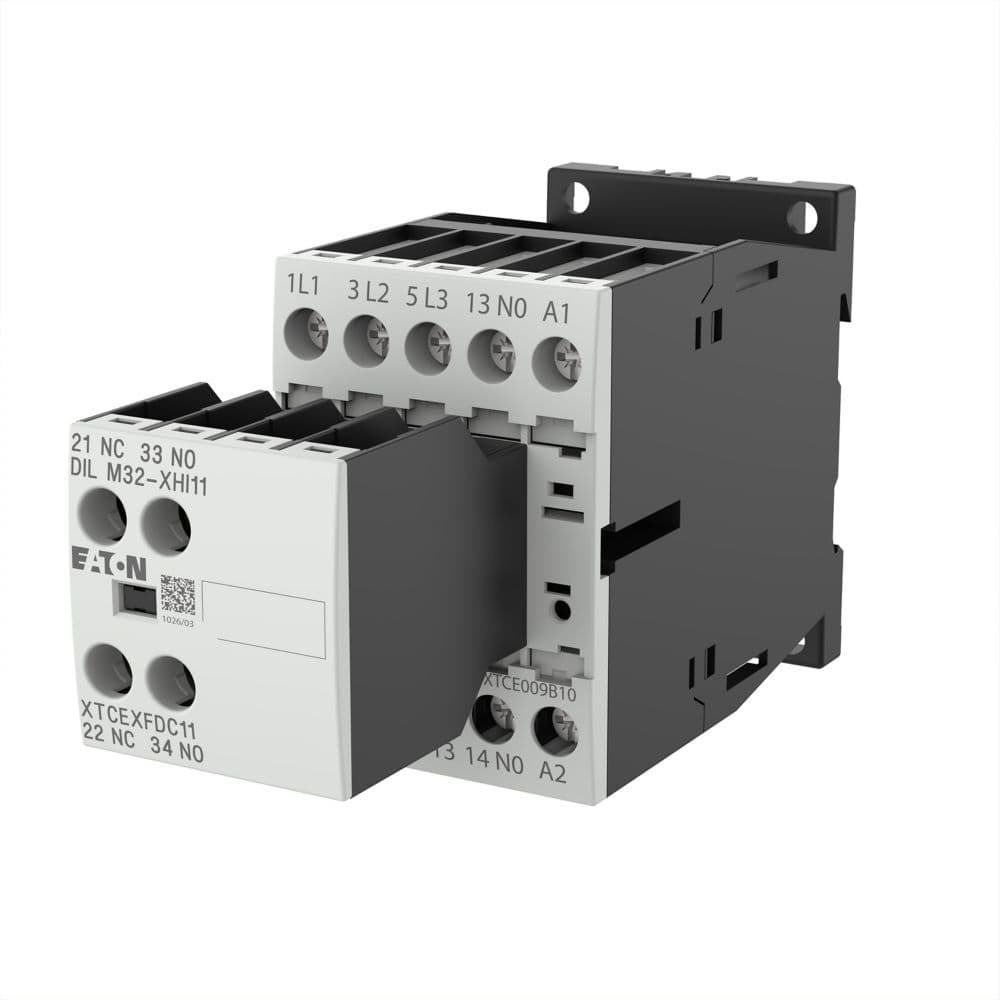

Eaton Moeller® series DILM contactor

Name: Eaton Moeller® series DILM contactor
Brand: Eaton
SKU: 276744

رقم القطعة: 276744

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series DILM contactor

Product Name	Eaton Moeller® series DILM contactor
Catalog Number	276744
Model Code	DILM9-01(220VDC)
EAN	4015082767440
Product Length/Depth	75 mm
Product Height	68 mm
Product Width	45 mm
Product Weight	0.296 kg
Certifications	IEC/EN 60947 CSA File No.: 012528 UL File No.: E29096 CSA VDE 0660 UL UL Category Control No.: NLDX IEC/EN 60947-4-1 CE CSA Class No.: 2411-03, 3211-04 CSA-C22.2 No. 60947-4-1-14 UL 508 VDE
Source URL	https://www.eaton.com/gb/en-gb/skuPage.276744.html
Catalog Notes	Contacts according to EN 50012
Shock resistance	7 g, N/O auxiliary contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms 5 g, N/C auxiliary contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms 3.4 g, N/O auxiliary contact, Mechanical, according to IEC/EN 60068-2-27 when tabletop-mounted, Half-sinusoidal shock 10 ms 10 g, N/O main contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms 5.7 g, N/O main contact, Mechanical, according to IEC/EN 60068-2-27 when tabletop-mounted, Half-sinusoidal shock 10 ms 3.4 g, N/C auxiliary contact, Mechanical, according to IEC/EN 60068-2-27 when tabletop-mounted, Half-sinusoidal shock 10 ms
