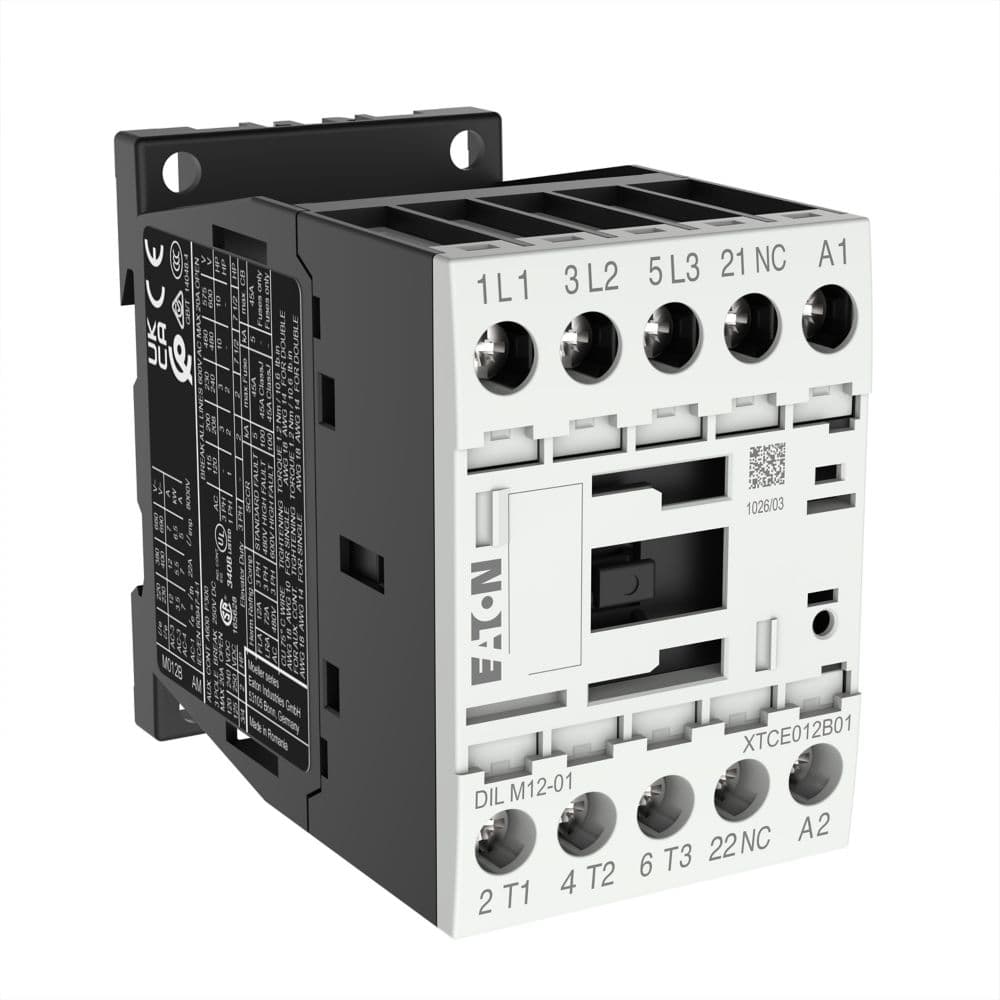

Eaton Moeller® series DILM contactor

Eaton

Eaton Moeller® series DILM contactor

رقم القطعة: 276859

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series DILM contactor

المواصفات

Product NameEaton Moeller® series DILM contactor
Catalog Number276859
Model CodeDILM12-01(208V60HZ)
EAN4015082768591
Product Length/Depth75 mm
Product Height68 mm
Product Width45 mm
Product Weight0.24 kg
CertificationsIEC/EN 60947-4-1 CSA Class No.: 2411-03, 3211-04 UL File No.: E29096 UL CSA-C22.2 No. 14-05 UL 508 VDE 0660 UL Category Control No.: NLDX IEC/EN 60947 CSA CE CSA File No.: 012528
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.276859.html
Catalog NotesContacts according to EN 50012
Shock resistance3.4 g, N/O auxiliary contact, Mechanical, according to IEC/EN 60068-2-27 when tabletop-mounted, Half-sinusoidal shock 10 ms 5.7 g, N/O main contact, Mechanical, according to IEC/EN 60068-2-27 when tabletop-mounted, Half-sinusoidal shock 10 ms 5 g, N/C auxiliary contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms 3.4 g, N/C auxiliary contact, Mechanical, according to IEC/EN 60068-2-27 when tabletop-mounted, Half-sinusoidal shock 10 ms 10 g, N/O main contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms 7 g, N/O auxiliary contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms
