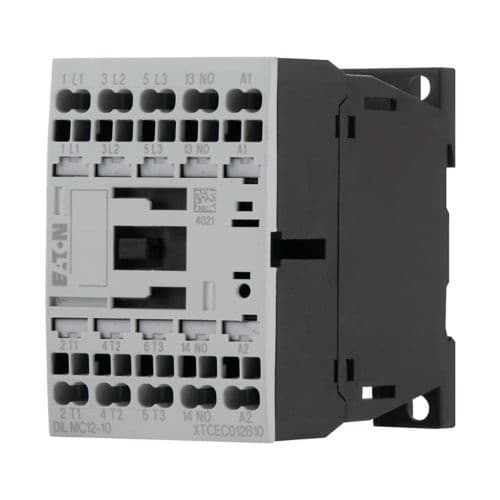

Eaton Moeller® series DILM contactor

Eaton

Eaton Moeller® series DILM contactor

رقم القطعة: 277521

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series DILM contactor

المواصفات

Product NameEaton Moeller® series DILM contactor
Catalog Number277521
Model CodeDILMC12-10(24V50/60HZ)
EAN4015082775216
Product Length/Depth75 mm
Product Height68 mm
Product Width45 mm
Product Weight0.225 kg
CertificationsIEC/EN 60947-4-1 UL File No.: E29096 UL Category Control No.: NLDX UL UL 60947-4-1 CE CSA File No.: 012528 IEC/EN 60947 CSA Class No.: 2411-03, 3211-04 VDE 0660 CSA CSA-C22.2 No. 60947-4-1-14
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.277521.html
Catalog NotesContacts according to EN 50012
Shock resistance7 g, N/O auxiliary contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms 3.4 g, N/O auxiliary contact, Mechanical, according to IEC/EN 60068-2-27 when tabletop-mounted, Half-sinusoidal shock 10 ms 5 g, N/C auxiliary contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms 5.7 g, N/O main contact, Mechanical, according to IEC/EN 60068-2-27 when tabletop-mounted, Half-sinusoidal shock 10 ms 3.4 g, N/C auxiliary contact, Mechanical, according to IEC/EN 60068-2-27 when tabletop-mounted, Half-sinusoidal shock 10 ms 10 g, N/O main contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms
