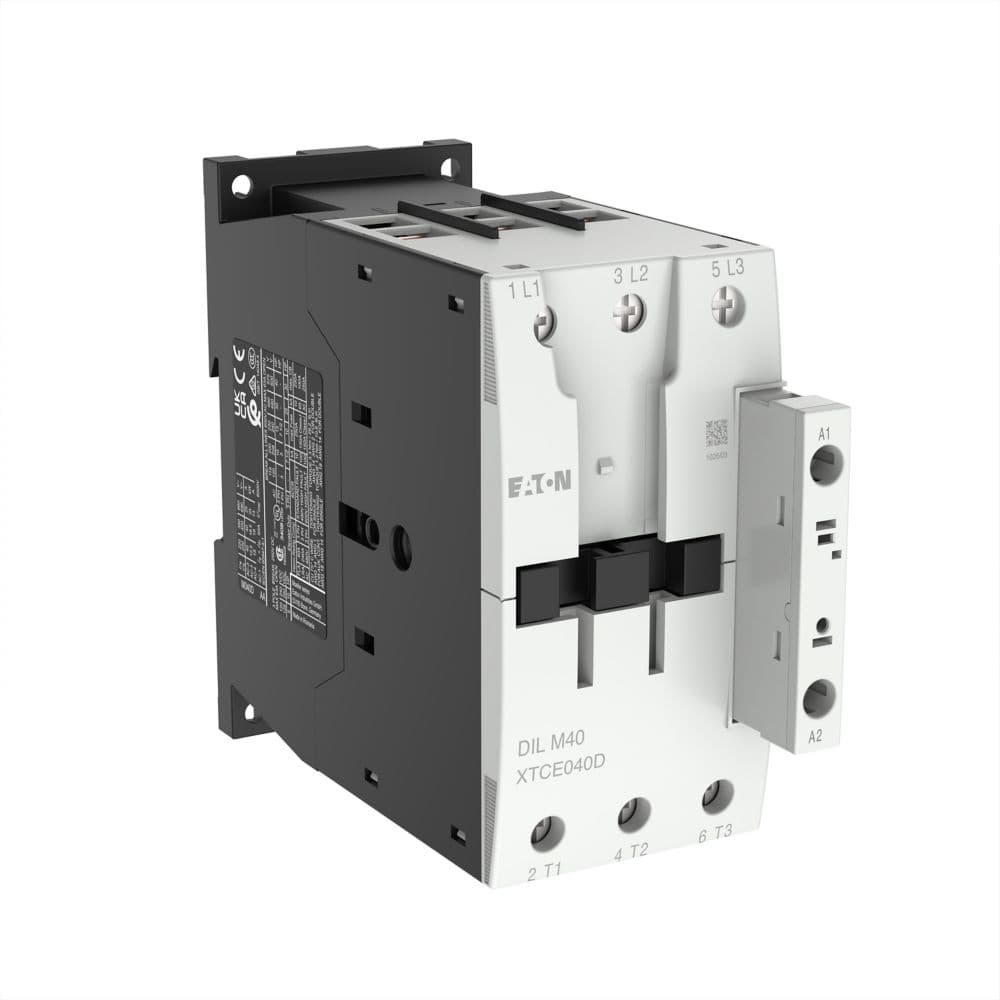

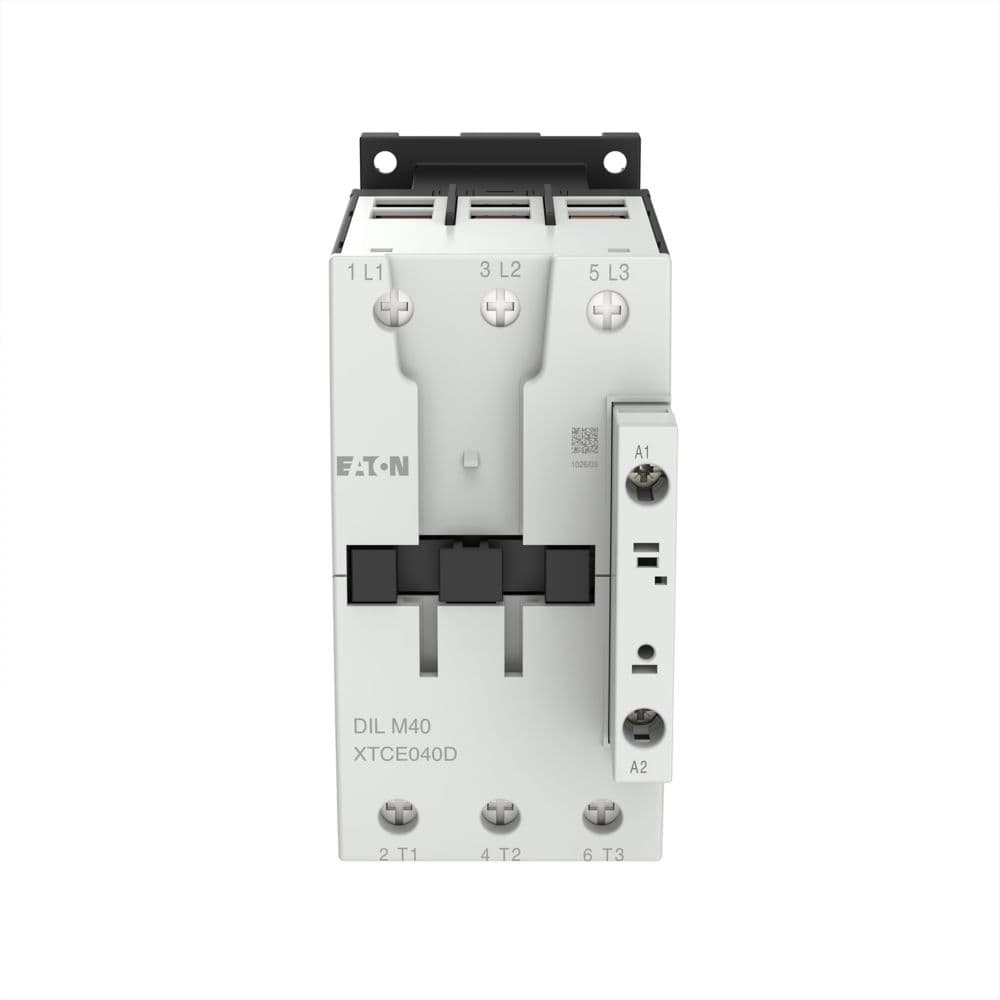

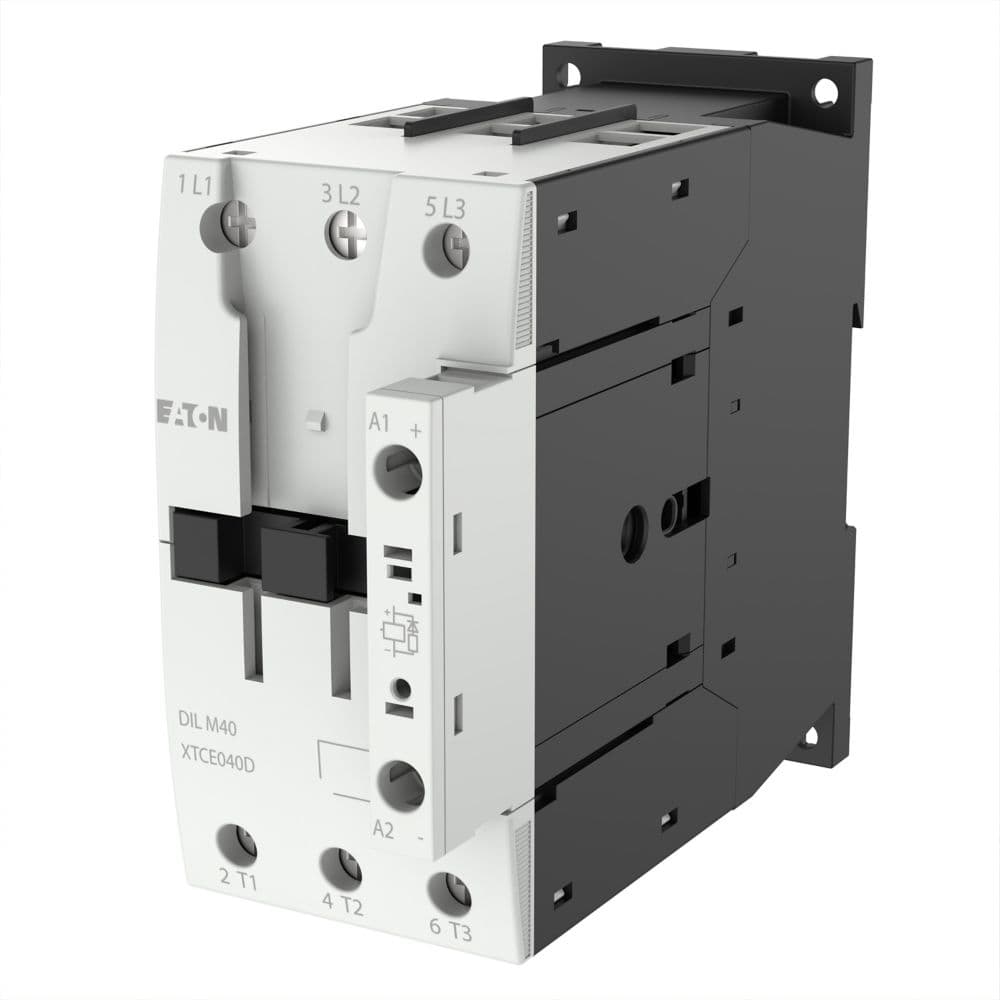

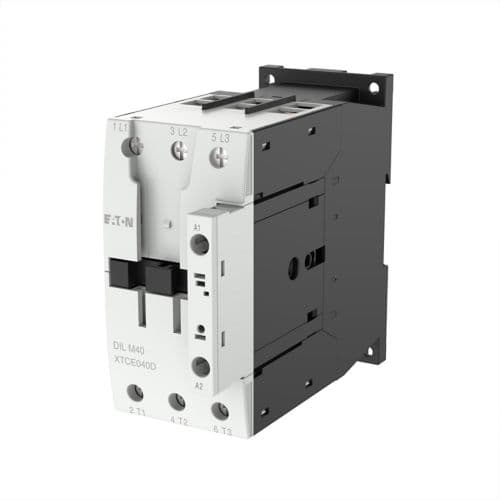

Eaton Moeller® series DILM contactor

Eaton

Eaton Moeller® series DILM contactor

رقم القطعة: 277777

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series DILM contactor

المواصفات

Product NameEaton Moeller® series DILM contactor
Catalog Number277777
Model CodeDILM40(TVC200)
EAN4015082777777
Product Length/Depth132.1 mm
Product Height115 mm
Product Width55 mm
Product Weight0.872 kg
CertificationsUL File No.: E29096 VDE 0660 CE CSA UL Category Control No.: NLDX IEC/EN 60947-4-1 CSA Class No.: 2411-03, 3211-04 CSA File No.: 012528 UL CSA-C22.2 No. 14-05 IEC/EN 60947 UL 508
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.277777.html
Catalog NotesContacts according to EN 50012
Shock resistance10 g, N/O main contact, Mechanical, according to IEC/EN 60068-2-27 when tabletop-mounted, Half-sinusoidal shock 10 ms 10 g, N/O main contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms 5 g, N/C auxiliary contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms 7 g, N/O auxiliary contact, Mechanical, according to IEC/EN 60068-2-27 when tabletop-mounted, Half-sinusoidal shock 10 ms 5 g, N/C auxiliary contact, Mechanical, according to IEC/EN 60068-2-27 when tabletop-mounted, Half-sinusoidal shock 10 ms 7 g, N/O auxiliary contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms
