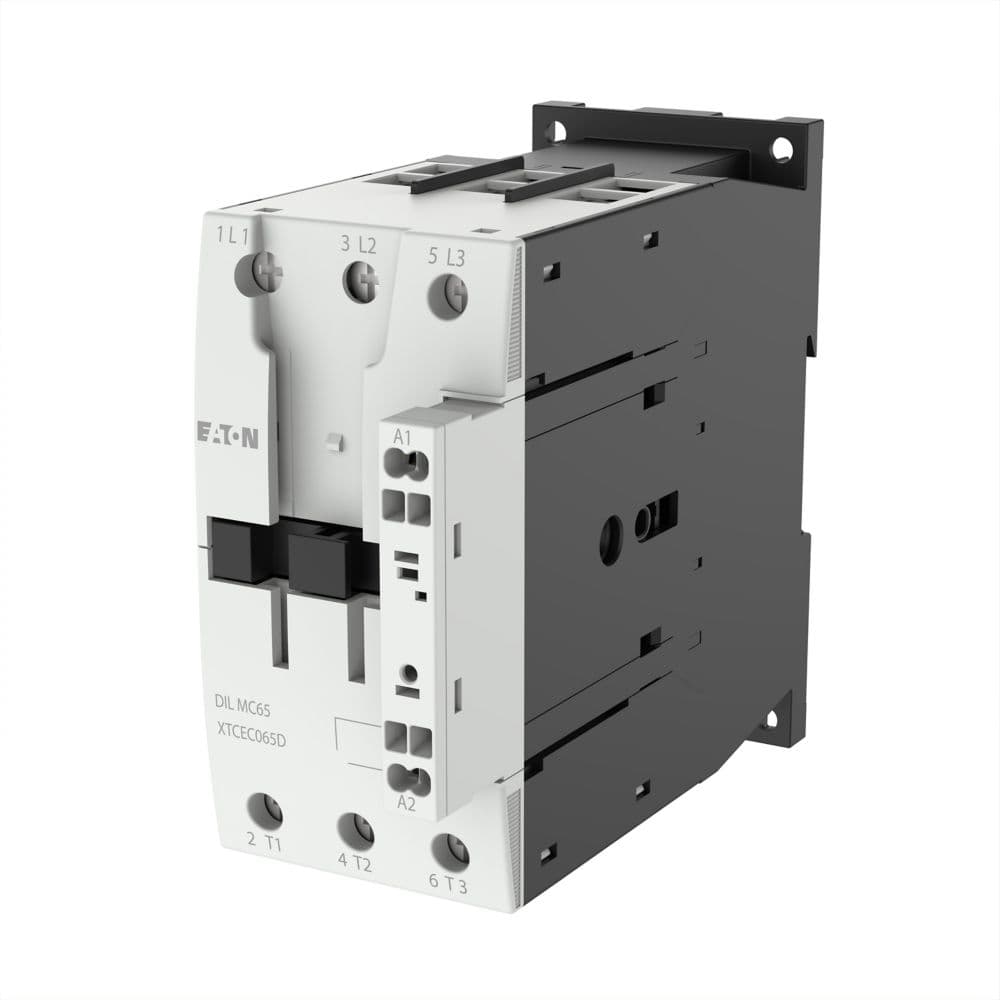

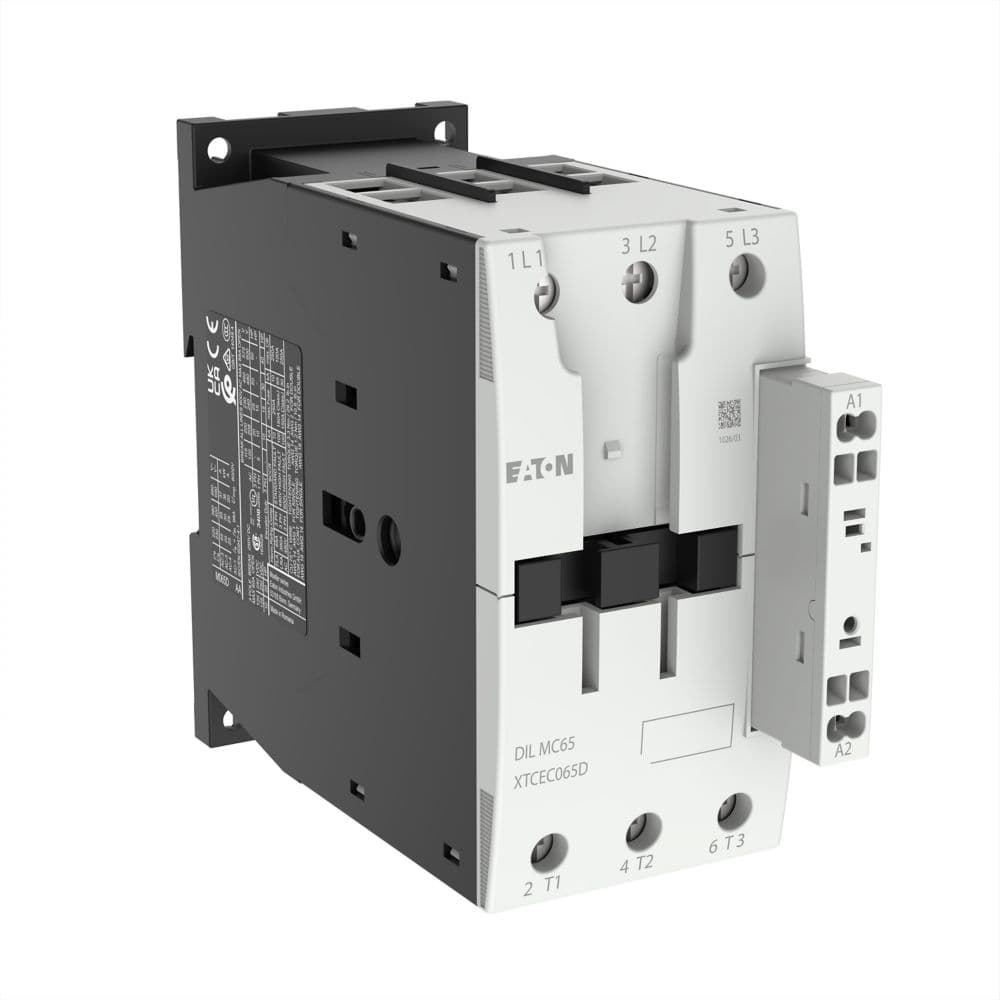

Eaton Moeller® series DILM contactor

Eaton

Eaton Moeller® series DILM contactor

رقم القطعة: 278039

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series DILM contactor

المواصفات

Product NameEaton Moeller® series DILM contactor
Catalog Number278039
Model CodeDILMC65(RDC24)
EAN4015082780395
Product Length/Depth132.1 mm
Product Height115 mm
Product Width55 mm
Product Weight1.042 kg
CertificationsCSA-C22.2 No. 60947-4-1-14 UL File No.: E29096 CSA IEC/EN 60947-4-1 VDE 0660 UL 60947-4-1 UL Category Control No.: NLDX CE CSA Class No.: 2411-03, 3211-04 UL CSA File No.: 012528 IEC/EN 60947
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.278039.html
Catalog NotesContacts according to EN 50012
Shock resistance5 g, N/C auxiliary contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms 7 g, N/O auxiliary contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms 10 g, N/O main contact, Mechanical, according to IEC/EN 60068-2-27 when tabletop-mounted, Half-sinusoidal shock 10 ms 7 g, N/O auxiliary contact, Mechanical, according to IEC/EN 60068-2-27 when tabletop-mounted, Half-sinusoidal shock 10 ms 5 g, N/C auxiliary contact, Mechanical, according to IEC/EN 60068-2-27 when tabletop-mounted, Half-sinusoidal shock 10 ms 10 g, N/O main contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms
