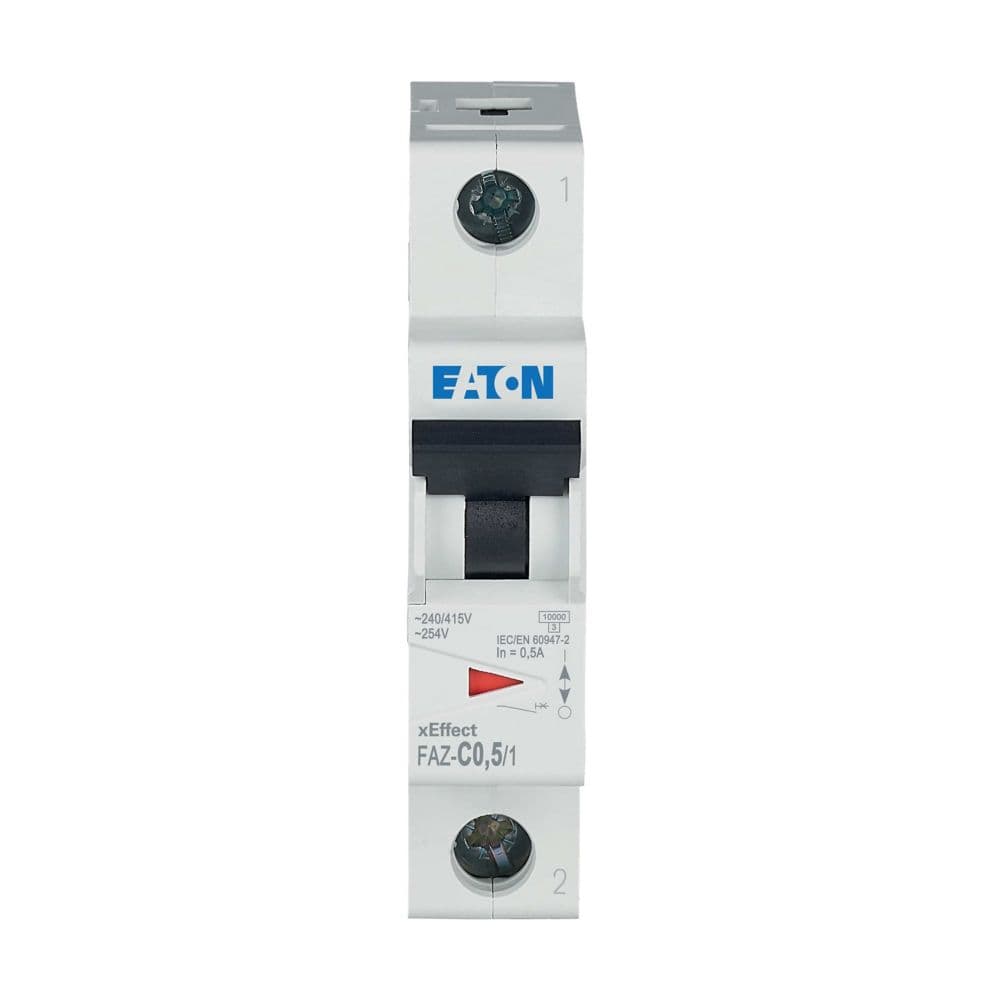

Eaton Moeller series xEffect - FAZ MCB

Eaton

Eaton Moeller series xEffect - FAZ MCB

رقم القطعة: 278544

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series xEffect - FAZ MCB

المواصفات

Special featuresAmbient temperature hint: a 1 °C increase results in a 0.5% linear reduction of current carrying capacity
Product NameEaton Moeller series xEffect - FAZ MCB
Catalog Number278544
Model CodeFAZ-C0,5/1
EAN4015082785444
Product Length/Depth80 mm
Product Height75.5 mm
Product Width17.7 mm
Product Weight0.11 kg
CompliancesUL CSA09 (with supplementary protector only) RoHS conform
CertificationsUL (Category Control Number QVNU2, QVNU8) IEC/EN 60898 UL (File No. E177451) UL 1077 CE marking CSA-C22.2 No. 235 IEC/EN 60947-2 CSA (Class No. 3215-30) North America (UL recognized, CSA certified) CSA (File No. 204453) EN45545-2 IEC 61373
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.278544.html
Catalog NotesPositioned for medium inrush startup currents to provide protection for small transformers and pilot devices.
Used withMiniature circuit breaker FAZ
FeaturesAdditional equipment possible
Current limiting class3
