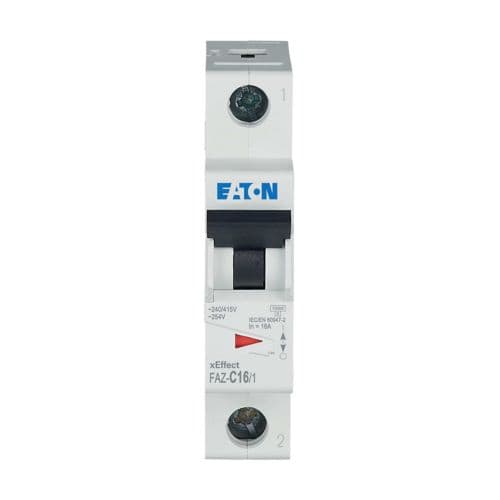

Eaton Moeller series xEffect - FAZ MCB

Eaton

Eaton Moeller series xEffect - FAZ MCB

رقم القطعة: 278565

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series xEffect - FAZ MCB

المواصفات

Special featuresAmbient temperature hint: a 1 °C increase results in a 0.5% linear reduction of current carrying capacity
Product NameEaton Moeller series xEffect - FAZ MCB
Catalog Number278565
Model CodeFAZ-C40/1
EAN4015082785659
Product Length/Depth80 mm
Product Height75.5 mm
Product Width17.7 mm
Product Weight0.116 kg
CompliancesUL CSA09 (with supplementary protector only) RoHS conform
CertificationsNorth America (UL recognized, CSA certified) UL 1077 CSA (File No. 204453) UL (Category Control Number QVNU2, QVNU8) UL (File No. E177451) IEC/EN 60947-2 CSA (Class No. 3215-30) CE marking IEC/EN 60898 CSA-C22.2 No. 235 EN45545-2 IEC 61373
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.278565.html
Catalog NotesNGLE PKG
Used withFAZ Miniature circuit breaker
FeaturesAdditional equipment possible
Current limiting class3
