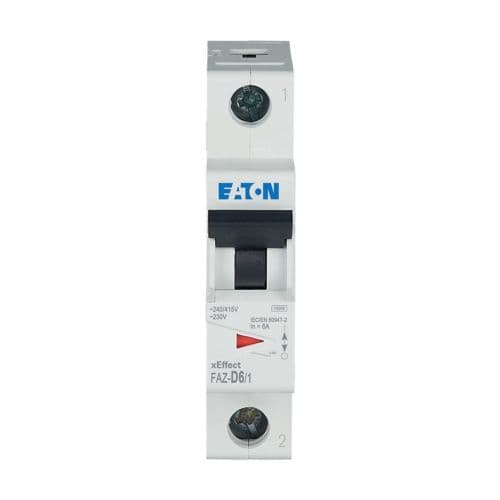

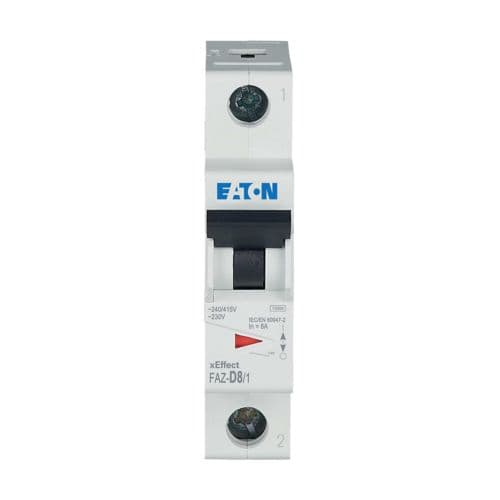

Eaton Moeller series xEffect - FAZ MCB

Eaton

Eaton Moeller series xEffect - FAZ MCB

رقم القطعة: 278576

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series xEffect - FAZ MCB

المواصفات

Special featuresAmbient temperature hint: a 1 °C increase results in a 0.5% linear reduction of current carrying capacity
Product NameEaton Moeller series xEffect - FAZ MCB
Catalog Number278576
Model CodeFAZ-D4/1
EAN4015082785765
Product Length/Depth80 mm
Product Height75.5 mm
Product Width17.7 mm
Product Weight0.112 kg
CompliancesUL CSA09 (with supplementary protector only) RoHS conform
CertificationsNorth America (UL recognized, CSA certified) UL 1077 CSA (Class No. 3215-30) CSA-C22.2 No. 235 UL (Category Control Number QVNU2, QVNU8) IEC/EN 60898 CSA (File No. 204453) UL (File No. E177451) CE marking IEC/EN 60947-2 EN45545-2 IEC 61373
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.278576.html
Used withMiniature circuit breaker FAZ
FeaturesAdditional equipment possible
Current limiting class3
