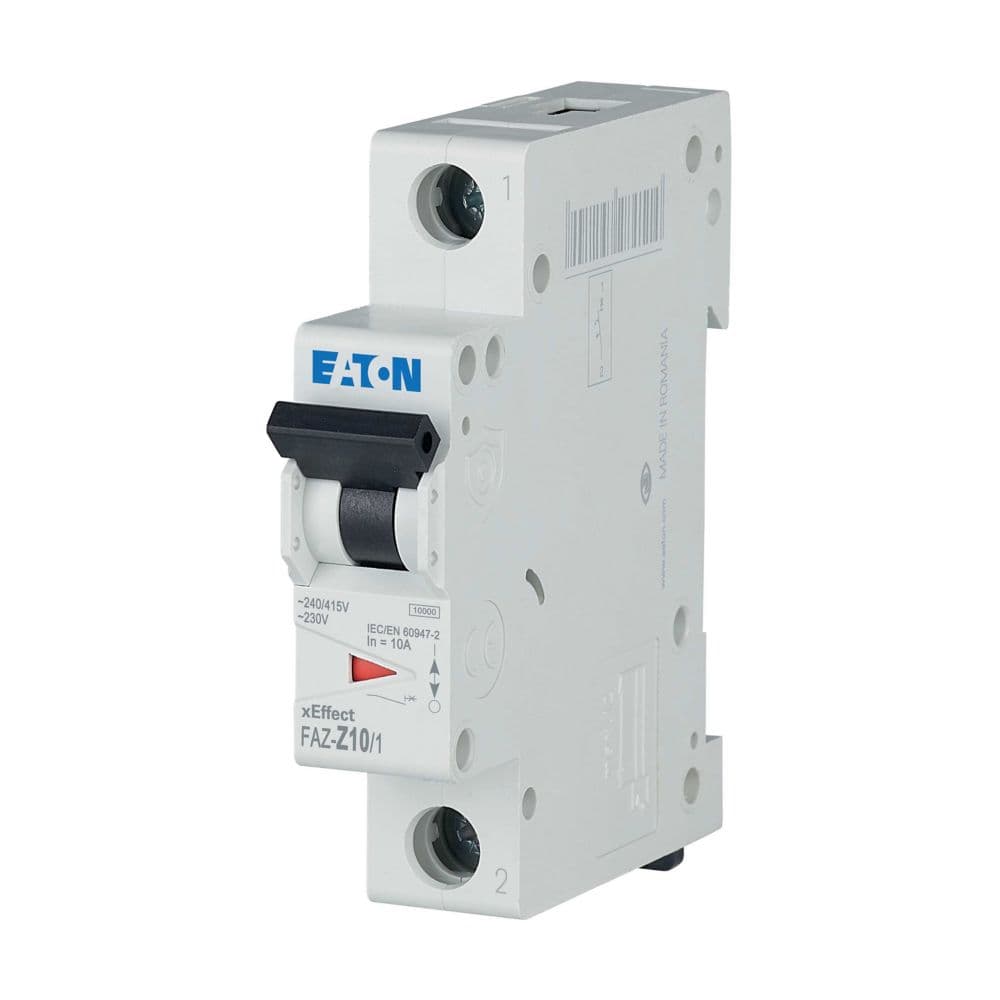

Eaton Moeller series xEffect - FAZ MCB

Eaton

Eaton Moeller series xEffect - FAZ MCB

رقم القطعة: 278625

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series xEffect - FAZ MCB

المواصفات

Special featuresAmbient temperature hint: a 1 °C increase results in a 0.5% linear reduction of current carrying capacity
Product NameEaton Moeller series xEffect - FAZ MCB
Catalog Number278625
Model CodeFAZ-Z10/1
EAN4015082786250
Product Length/Depth80 mm
Product Height75.5 mm
Product Width17.7 mm
Product Weight0.11 kg
CompliancesUL CSA09 (with supplementary protector only) RoHS conform
CertificationsUL 1077 UL (File No. E177451) North America (UL recognized, CSA certified) IEC/EN 60947-2 CSA (File No. 204453) UL (Category Control Number QVNU2, QVNU8) CE marking CSA-C22.2 No. 235 IEC/EN 60898 CSA (Class No. 3215-30) EN45545-2 IEC 61373
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.278625.html
Used withMiniature circuit breaker FAZ
FeaturesAdditional equipment possible
Current limiting class3
