Eaton Moeller series xEffect - FAZ MCB

Eaton

Eaton Moeller series xEffect - FAZ MCB

رقم القطعة: 278728

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series xEffect - FAZ MCB

المواصفات

Special featuresAmbient temperature hint: a 1 °C increase results in a 0.5% linear reduction of current carrying capacity
Product NameEaton Moeller series xEffect - FAZ MCB
Catalog Number278728

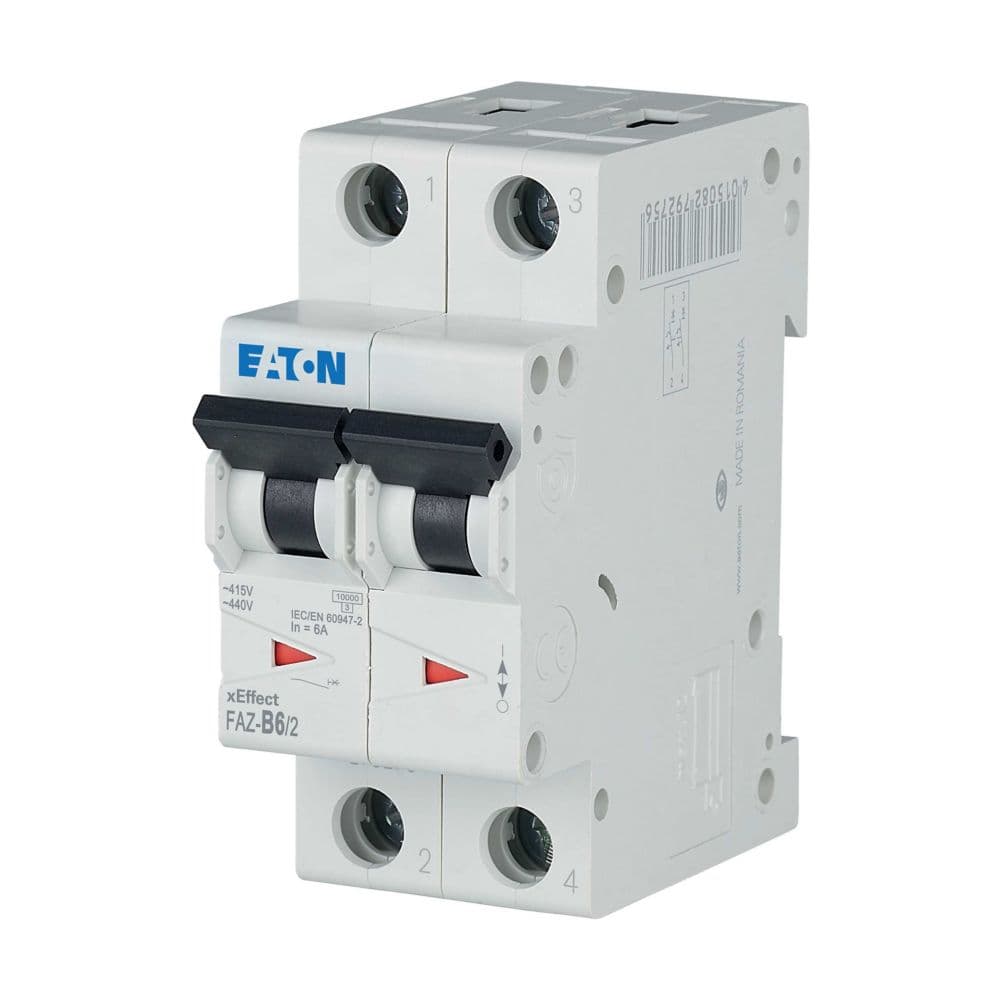

Model CodeFAZ-B6/2
EAN4015082787288
Product Length/Depth80 mm
Product Height75.5 mm
Product Width36 mm
Product Weight0.219 kg
CompliancesUL CSA09 (with supplementary protector only) RoHS conform
CertificationsCSA-C22.2 No. 235 UL 1077 CSA (File No. 204453) UL (Category Control Number QVNU2, QVNU8) North America (UL recognized, CSA certified) CE marking UL (File No. E177451) IEC/EN 60947-2 IEC/EN 60898 CSA (Class No. 3215-30) EN45545-2 IEC 61373
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.278728.html
Used withFAZ Miniature circuit breaker
FeaturesAdditional equipment possible
Current limiting class3
