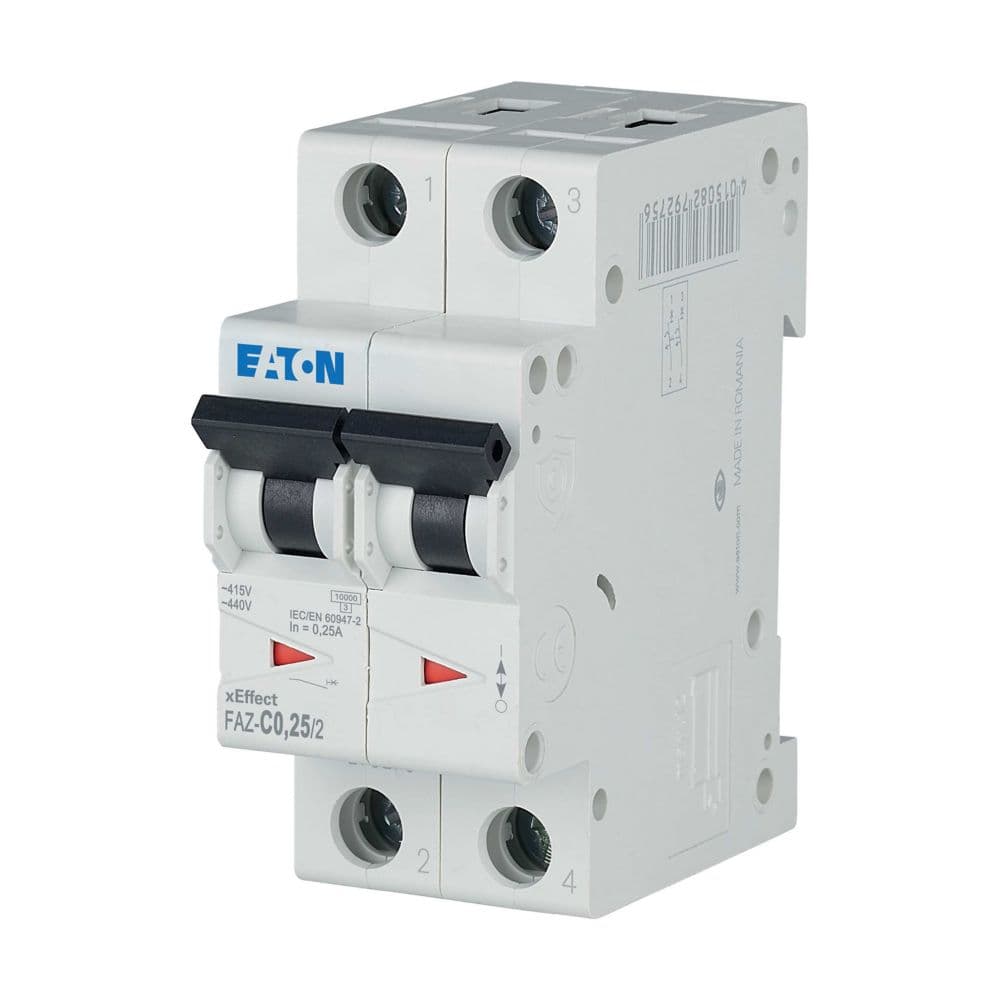

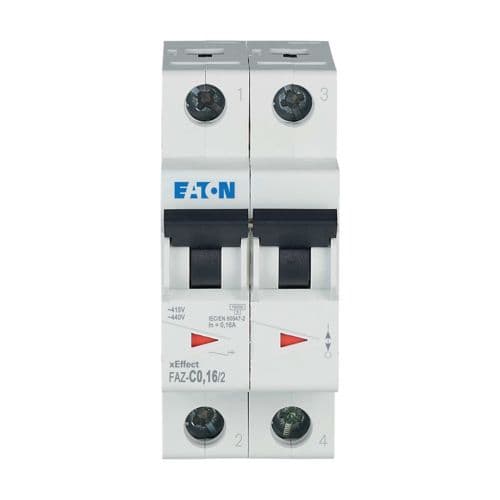

Eaton Moeller series xEffect - FAZ MCB

Eaton

Eaton Moeller series xEffect - FAZ MCB

رقم القطعة: 278742

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series xEffect - FAZ MCB

المواصفات

Special featuresAmbient temperature hint: a 1 °C increase results in a 0.5% linear reduction of current carrying capacity
Product NameEaton Moeller series xEffect - FAZ MCB
Catalog Number278742
Model CodeFAZ-C0,25/2
EAN4015082787424
Product Length/Depth80 mm
Product Height75.5 mm
Product Width36 mm
Product Weight0.221 kg
CompliancesUL CSA09 (with supplementary protector only) RoHS conform
CertificationsUL (Category Control Number QVNU2, QVNU8) UL (File No. E177451) UL 1077 CSA (Class No. 3215-30) CSA-C22.2 No. 235 CSA (File No. 204453) IEC/EN 60898 North America (UL recognized, CSA certified) CE marking IEC/EN 60947-2 EN45545-2 IEC 61373
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.278742.html
Used withFAZ Miniature circuit breaker
FeaturesAdditional equipment possible
Current limiting class3
