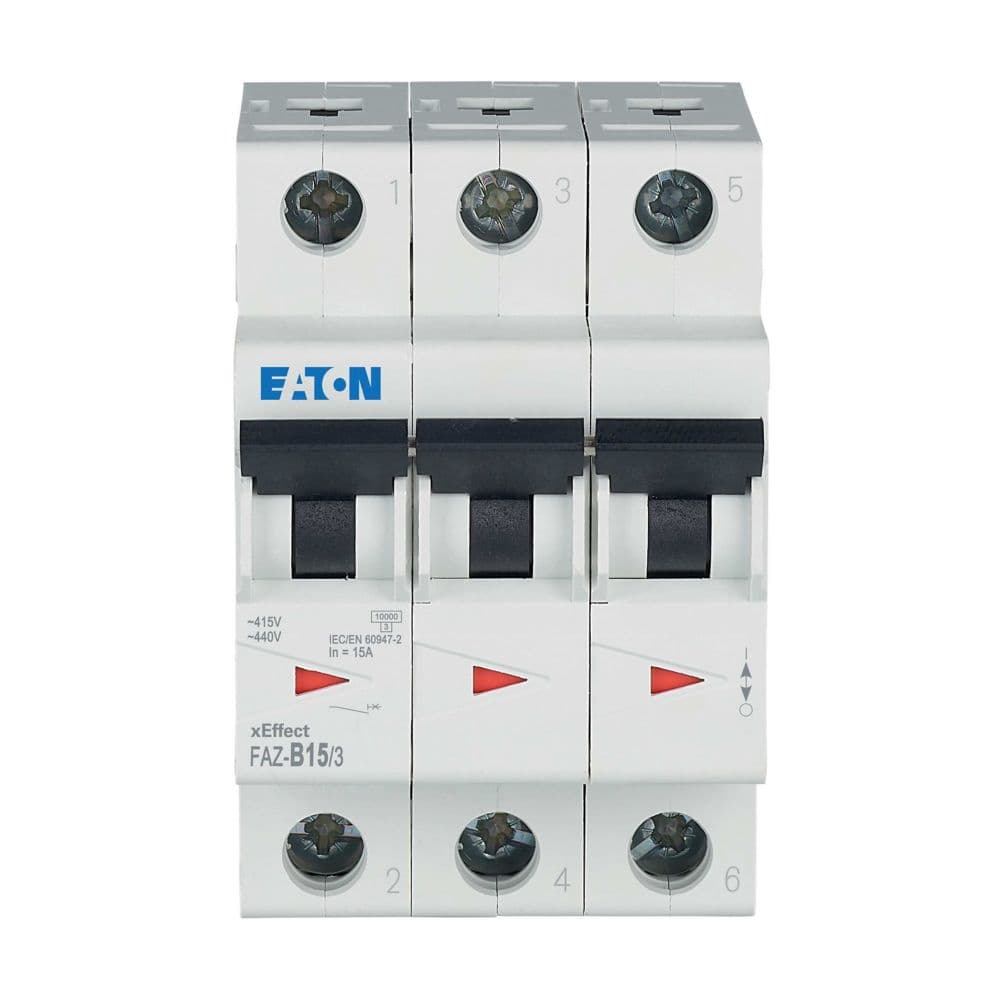

Eaton Moeller series xEffect - FAZ MCB

Eaton

Eaton Moeller series xEffect - FAZ MCB

رقم القطعة: 278846

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series xEffect - FAZ MCB

المواصفات

Special featuresAmbient temperature hint: a 1 °C increase results in a 0.5% linear reduction of current carrying capacity
Product NameEaton Moeller series xEffect - FAZ MCB
Catalog Number278846
Model CodeFAZ-B15/3
EAN4015082788469
Product Length/Depth80 mm
Product Height75.5 mm
Product Width54 mm
Product Weight0.333 kg
CompliancesUL CSA09 (with supplementary protector only) RoHS conform
CertificationsNorth America (UL recognized, CSA certified) CSA (File No. 204453) UL (File No. E177451) UL 1077 CSA (Class No. 3215-30) CE marking IEC/EN 60898 IEC/EN 60947-2 UL (Category Control Number QVNU2, QVNU8) CSA-C22.2 No. 235 EN45545-2 IEC 61373
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.278846.html
Used withFAZ Miniature circuit breaker
FeaturesAdditional equipment possible
Current limiting class3
