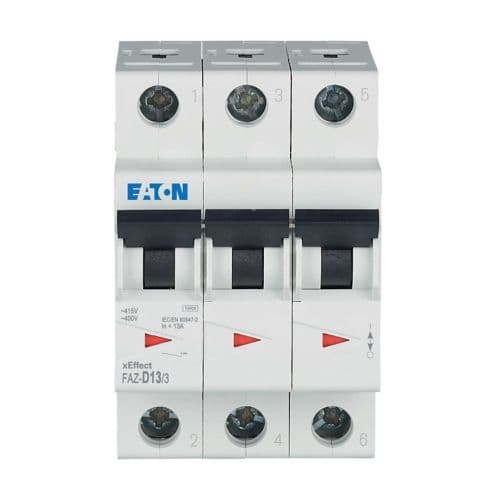

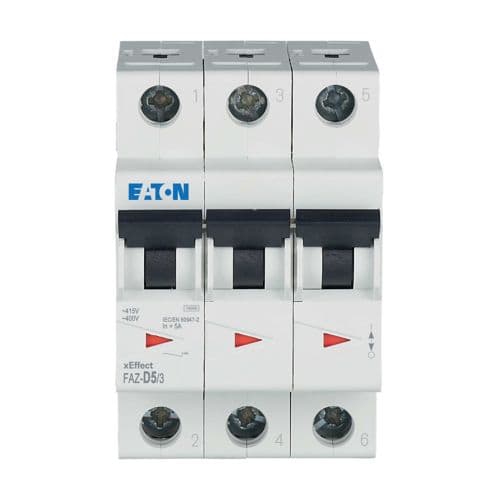

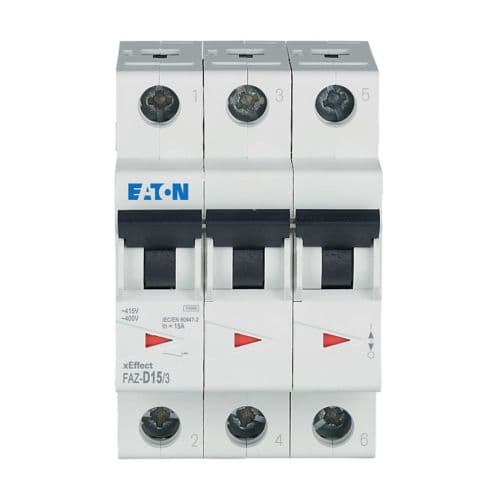

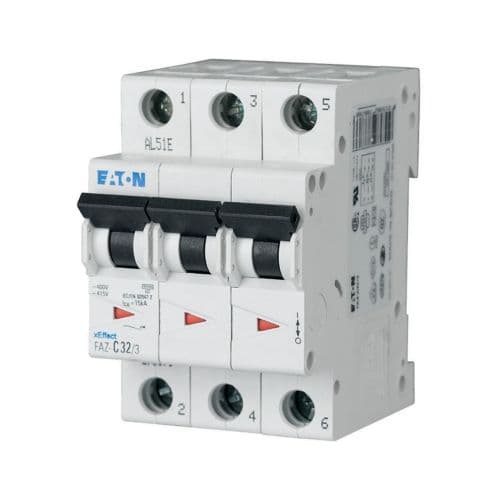

Eaton Moeller series xEffect - FAZ MCB

Eaton

Eaton Moeller series xEffect - FAZ MCB

رقم القطعة: 278892

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series xEffect - FAZ MCB

المواصفات

Special featuresAmbient temperature hint: a 1 °C increase results in a 0.5% linear reduction of current carrying capacity
Product NameEaton Moeller series xEffect - FAZ MCB
Catalog Number278892

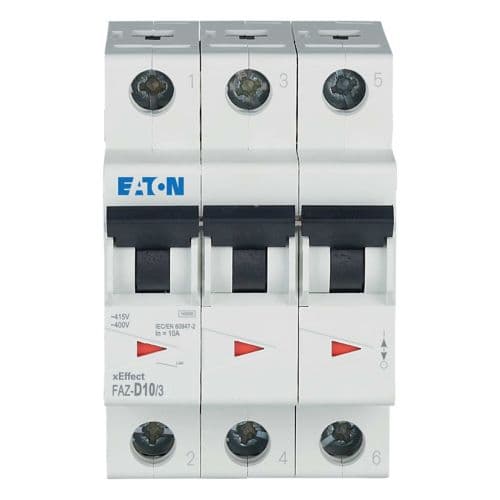

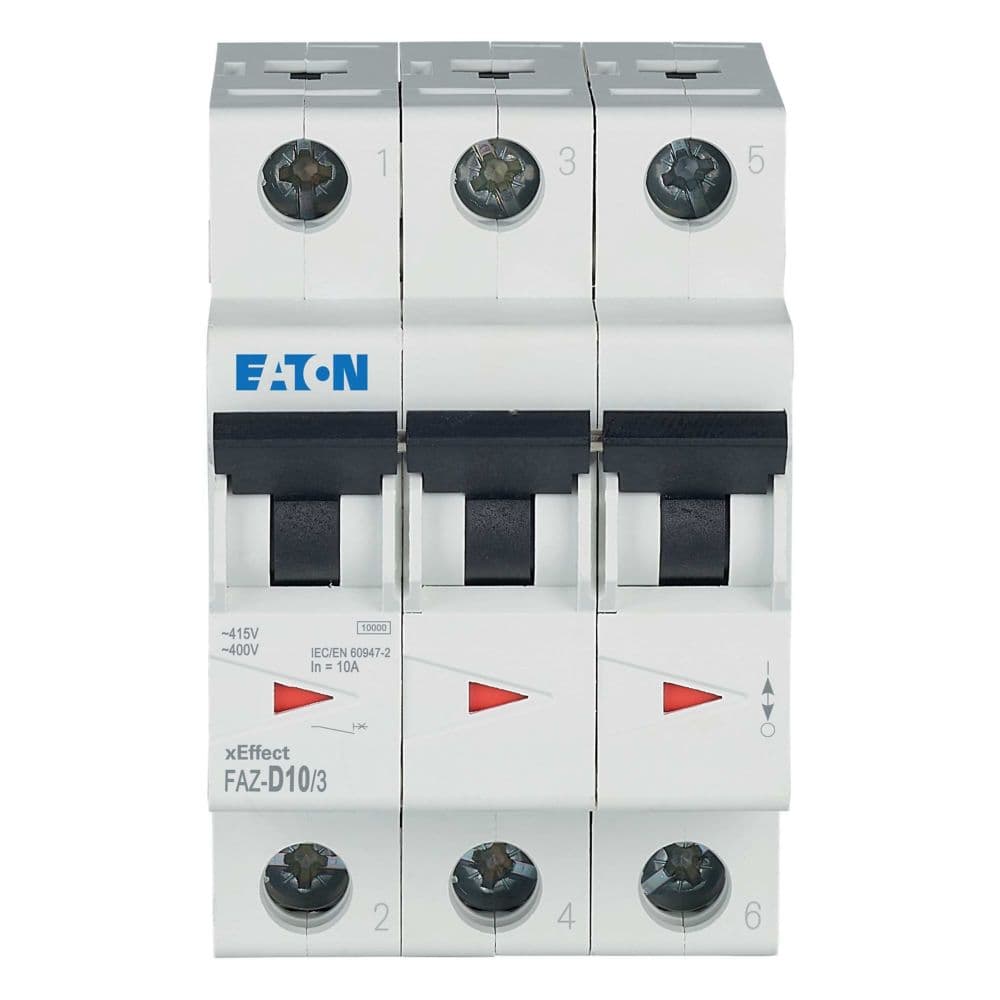

Model CodeFAZ-D10/3
EAN4015082788926
Product Length/Depth80 mm
Product Height75.5 mm
Product Width54 mm
Product Weight0.333 kg
CompliancesUL CSA09 (with supplementary protector only) RoHS conform
CertificationsUL 1077 UL (Category Control Number QVNU2, QVNU8) IEC/EN 60898 CSA (Class No. 3215-30) CSA (File No. 204453) North America (UL recognized, CSA certified) CSA-C22.2 No. 235 UL (File No. E177451) IEC/EN 60947-2 CE marking EN45545-2 IEC 61373
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.278892.html
Catalog NotesMagnetic range for higher startup inrush levels that are usually seen in motors and transformers, and other high inductive systems.
Used withMiniature circuit breaker FAZ
FeaturesAdditional equipment possible
Current limiting class3
