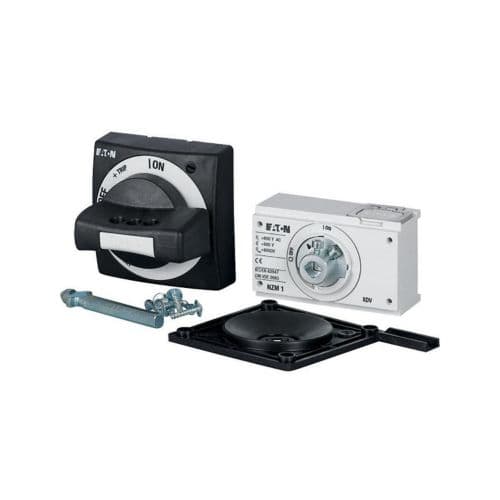

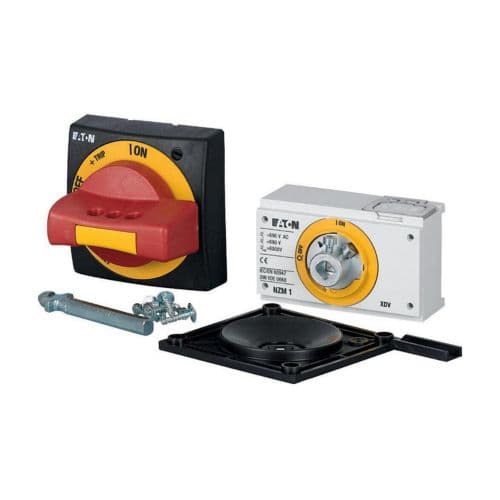

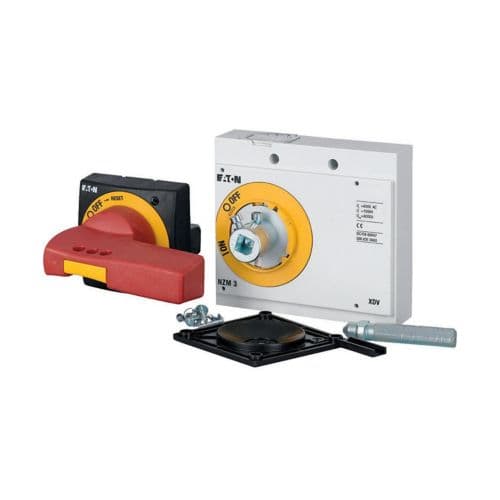

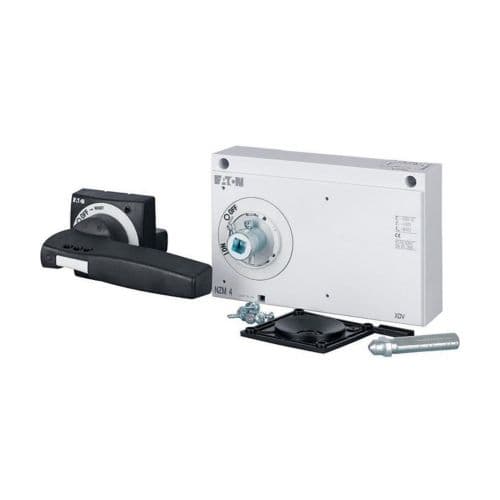

Eaton Moeller series NZM operating element

Eaton

Eaton Moeller series NZM operating element

رقم القطعة: 279399

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series NZM operating element

المواصفات

Special featuresComplete including rotary drive and coupling partsFor extremely narrow fittingsWith special short extension shaftCannot be combined with NZM...-XDZ additional handleExternal warning plate/designation label can be clipped on.Door coupling rotary handle for operating the switch through a closed control panel door
Product NameEaton Moeller series NZM operating element
Catalog Number279399
Model CodeNZM4-XTVDV-0
EAN4015082793999
Product Length/Depth230 mm
Product Height130 mm
Product Width230 mm
Product Weight1.716 kg
CompliancesUL/CSA IEC RoHS conform
CertificationsUL listed CSA (Class No. 1437-01) IEC60947 CSA-C22.2 No. 5-09 UL489 UL (Category Control Number DIHS) UL (File No. E140305) CSA (File No. 22086) CSA certified CE marking
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.279399.html
Suitable forSwitch disconnector Power circuit breaker
Used withNZM4(-4), N(S)4(-4)
FeaturesStandard: black / gray Lockable
TypeDoor coupling rotary handle
Fitted with:Padlock Extension shaft
FrameNZM4
