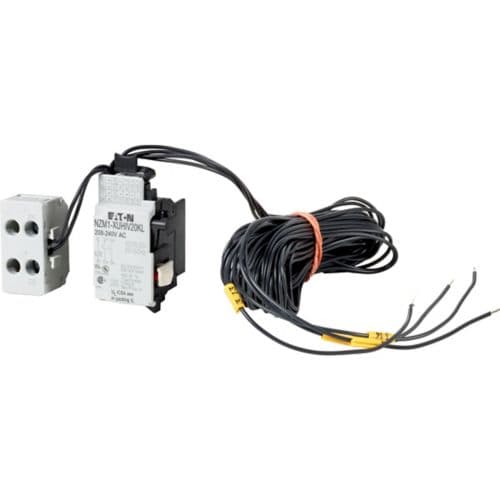

Eaton Moeller series NZM Undervoltage release

Eaton

Eaton Moeller series NZM Undervoltage release

رقم القطعة: 284404

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series NZM Undervoltage release

المواصفات

Special featuresUndervoltage release with 2 early-make auxiliary contacts, e.g., for early-make connection of undervoltage release in main switch applications, as well as for interlock and load shedding circuits.For use with emergency-stop devices in connection with an emergency-stop button.When the under-voltage trip is switched off, accidental contact with the circuit breaker’s primary contacts is prevented when switched on.Early make of auxiliary contacts on switching on and off (manual operation): approx. 20 msCannot be used in conjunction with NZM...-XR... remote operator.Undervoltage releases cannot be installed simultaneously with NZM...-XHIV... early-make auxiliary contact or NZM...-XA... shunt release.
Product NameEaton Moeller series NZM Undervoltage release
Catalog Number284404
Model CodeNZM1-XUHIV20LK208-240AC
EAN4015082844042
Product Length/Depth37 mm
Product Height66 mm
Product Width32 mm
Product Weight0.056 kg
CompliancesUL/CSA IEC RoHS conform
CertificationsCE marking IEC60947 CSA certified CSA (Class No. 1437-01) UL listed CSA (File No. 22086) UL (File No. E140305) CSA-C22.2 No. 5-09 UL489 UL (Category Control Number DIHS)
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.284404.html
Suitable forOff-load switch Power circuit breaker
Used withNZM1(-4), N(S)1(-4)
TypeAccessoryUndervoltage release with early-make auxiliary contact
Fitted with:Two separate early-make auxiliary contacts
FrameNZM1
