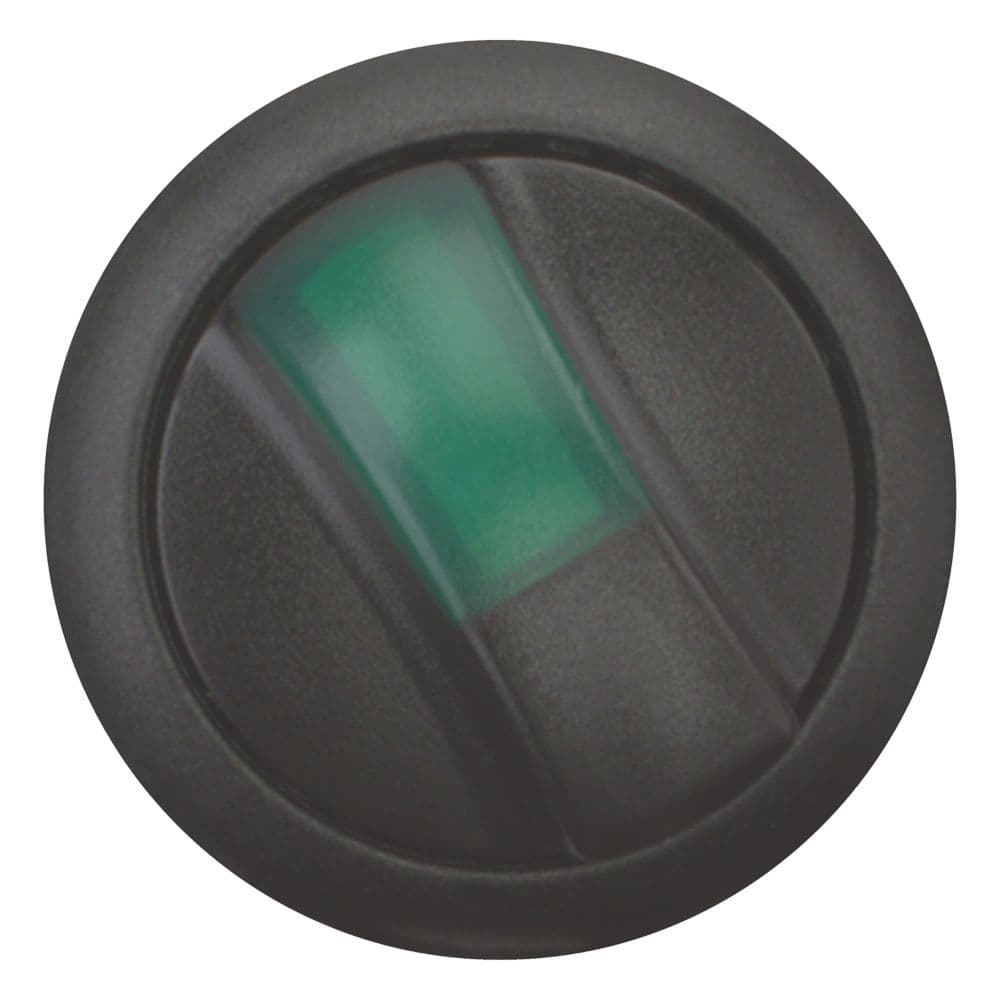

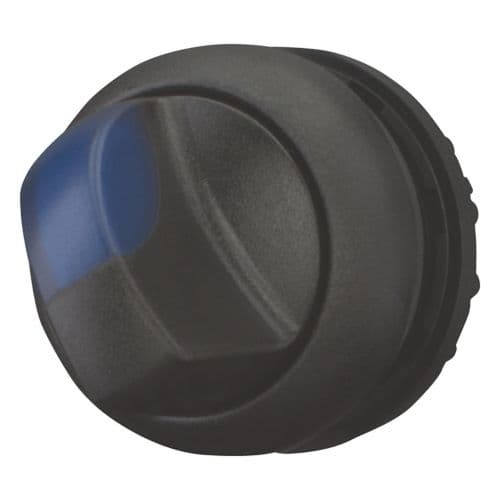

Eaton Moeller® series M22 illuminated selector switch

Name: Eaton Moeller® series M22 illuminated selector switch
Brand: Eaton
SKU: 284540

رقم القطعة: 284540

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series M22 illuminated selector switch

Functions	Stay-put/spring-return function, can be changed with coding parts M22-XC-Y
Product Name	Eaton Moeller® series M22 illuminated selector switch
Catalog Number	284540
Model Code	M22S-WLKV-G
EAN	4015082845407
Product Length/Depth	46 mm
Product Height	30 mm
Product Width	30 mm
Product Weight	0.014 kg
Compliances	GoST-R CE Marked Bureau Veritas
Certifications	CCC Marked CSA Certified Lloyd's Register Certified CSA Class No.: 3211-03 CSA-C22.2 No. 14-05 UL 508 CSA File No.: 012528 UL File No.: E29184 IEC/EN 60947 IEC/EN 60947-5 UL CE CSA CSA-C22.2 No. 94-91 UL Category Control No.: NKCR VDE 0660 DNV GL LR
Source URL	https://www.eaton.com/gb/en-gb/skuPage.284540.html
Catalog Notes	Includes contact block mounting adapter. Can be converted in the field to maintained operation with the removal of a color coded adapter.
Actuator function	Momentary Maintained Switching function latching
Actuator type	Toggle
Number of switch positions	2
Actuator color	Black
Fitted with:	Front ring
Design	With thumb-grip Classical
Bezel color	Black
Bezel material	Plastic
Indicator color	Green
Lens type	Round
