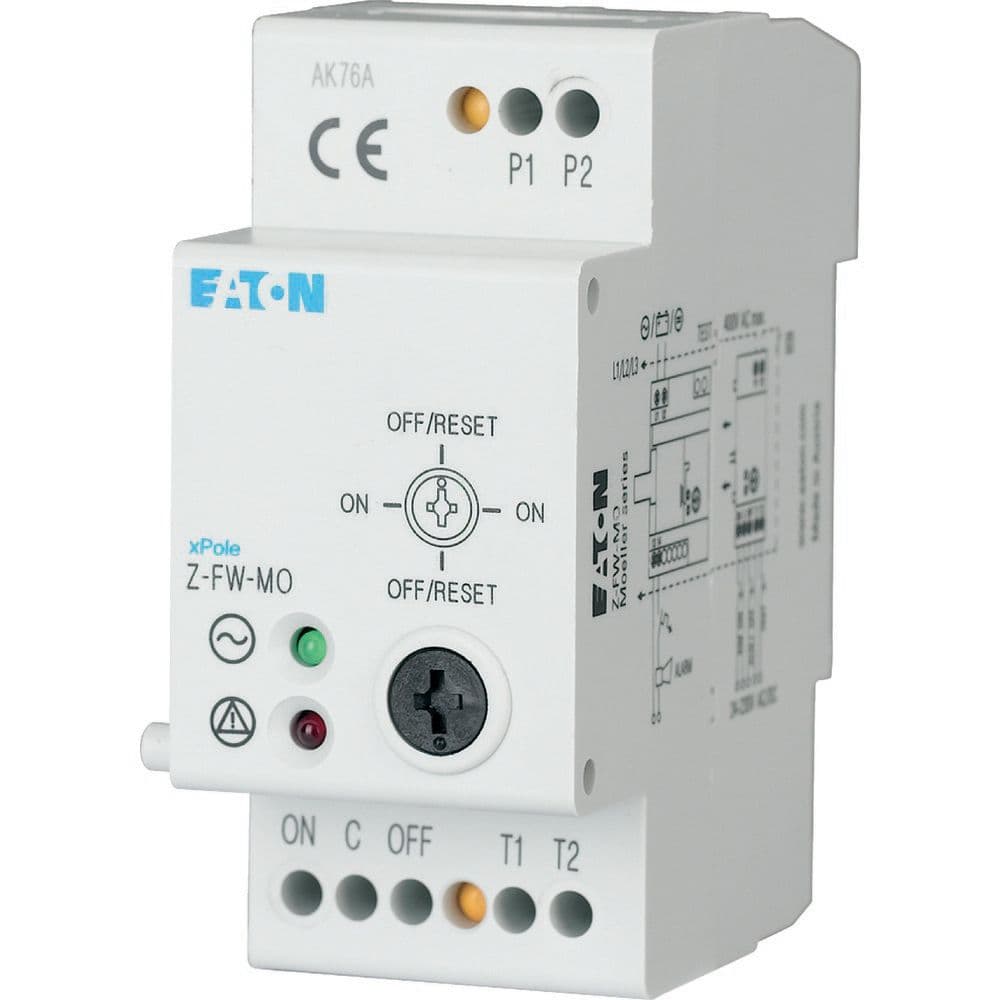

Eaton Automatic restarting device

Name: Eaton Automatic restarting device
Brand: Eaton
SKU: 284730

رقم القطعة: 284730

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Automatic restarting device

المواصفات

Ambient operating temperature - max	40 °C
Ambient operating temperature - min	-25 °C
Functions	+ON/OFF/TEST With auto test for earth leakage function Remote release
Number of contacts (normally closed contacts)	0
Number of contacts (normally open contacts)	0
Special features	24 V AC/DC - 230 V AC/DC (control voltage for remote testing)
Product Name	Eaton Automatic restarting device
Catalog Number	284730
Model Code	Z-FW-MO
EAN	4015082847302
Product Length/Depth	80 mm
Product Height	65.5 mm
Product Width	35 mm
Product Weight	0.076 kg
Compliances	RoHS conform
Source URL	https://www.eaton.com/gb/en-gb/skuPage.284730.html
Used with	Restarting device - switching module Accessory for miniature circuit breaker Accessory Accessory for residual current circuit breaker
Type	AccessoryAccessory for miniature circuit breakerAccessory for residual current circuit breaker
Degree of protection	IP40
Mounting method	Quick attachment with 2 latch positions on top-hat rail IEC/EN 60715 For fitting on right to: Z-FW-LP, Z-FW-LPD
Accessory/spare part type	Restarting device
Rated operational voltage (Ue) - max	230 V
Terminal capacity (solid wire)	2.5 mm² (2x) 1.5 mm² (4x)
Rated operational current for specified heat dissipation (In)	0 A
Terminal capacity (cable)	1.5 mm² (4x) 2.5 mm² (2x)
Frame	Standard front dimension: 45 mm
Voltage type	AC
Number of contacts (change-over contacts)	0
Number of switches (fault signal)	0
Mounting width	35 mm
Heat dissipation per pole, current-dependent	0 W
Equipment heat dissipation, current-dependent	0 W
Application	Switchgear for industrial and advanced commercial applications
Static heat dissipation, non-current-dependent	5 W
Additional equipment required	Remote release
Assembly width	2
Heat dissipation capacity	0 W
Number of poles at main contact unit - max	0
Device fitting	Other
Terminal protection	Protection against electric shock to A3, ÖVE-EN 6
Terminal type	Lift terminals
Enclosure width	80 mm
Function selector	ON, OFF/RESET
Relay output for tripping test	400 VAC
