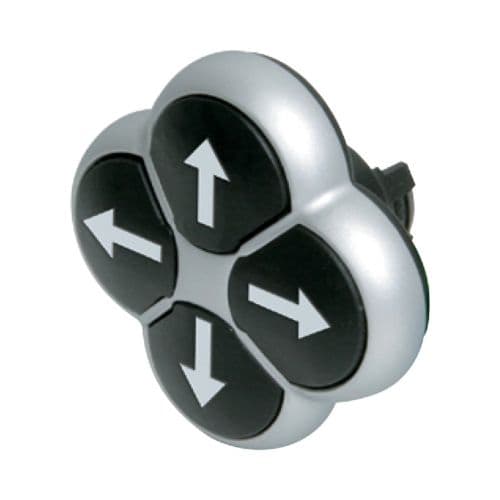

Eaton Moeller® series M22 4-way pushbutton
رقم القطعة: 286339
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
Eaton Moeller® series M22 4-way pushbutton
المواصفات
| Functions | Opposing pushbuttons mechanically interlocked |
|---|---|
| Product Name | Eaton Moeller® series M22 4-way pushbutton |
| Catalog Number | 286339 |
| Model Code | M22S-DI4-S-X7 |
| EAN | 4015082863395 |
| Product Length/Depth | 55 mm |
| Product Height | 32 mm |
| Product Width | 55 mm |
| Product Weight | 0.022 kg |
| Certifications | IEC/EN 60947-5 UL File No.: E29184 CSA-C22.2 No. 14-05 UL Category Control No.: NKCR CSA UL CSA Class No.: 3211-03 CSA-C22.2 No. 94-91 CE IEC/EN 60947 CSA File No.: 012528 VDE 0660 UL 508 DNV GL LR |
| Source URL | https://www.eaton.com/gb/en-gb/skuPage.286339.html |
| Catalog Notes | 4-fold |
| Actuator function | Momentary Spring-return |
| Actuator color | Black |
| Features | Labelled |
| Fitted with: | Front ring |
| Design | Non-Flush Classical |
| Bezel color | Black |
| Bezel material | Plastic |
| Lens type | Round |
| Inscription | 4 white arrows |
| Number of command positions | 4 |
| Actuating force | 5 N |
