Eaton Moeller series xPole - PFIM Type AC, A, U, R RCCB

Eaton

Eaton Moeller series xPole - PFIM Type AC, A, U, R RCCB

رقم القطعة: 294294

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

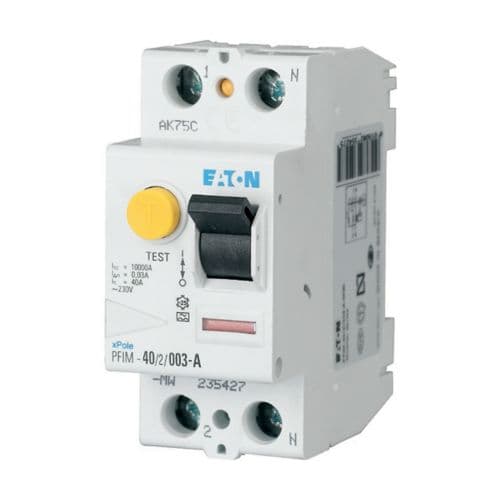

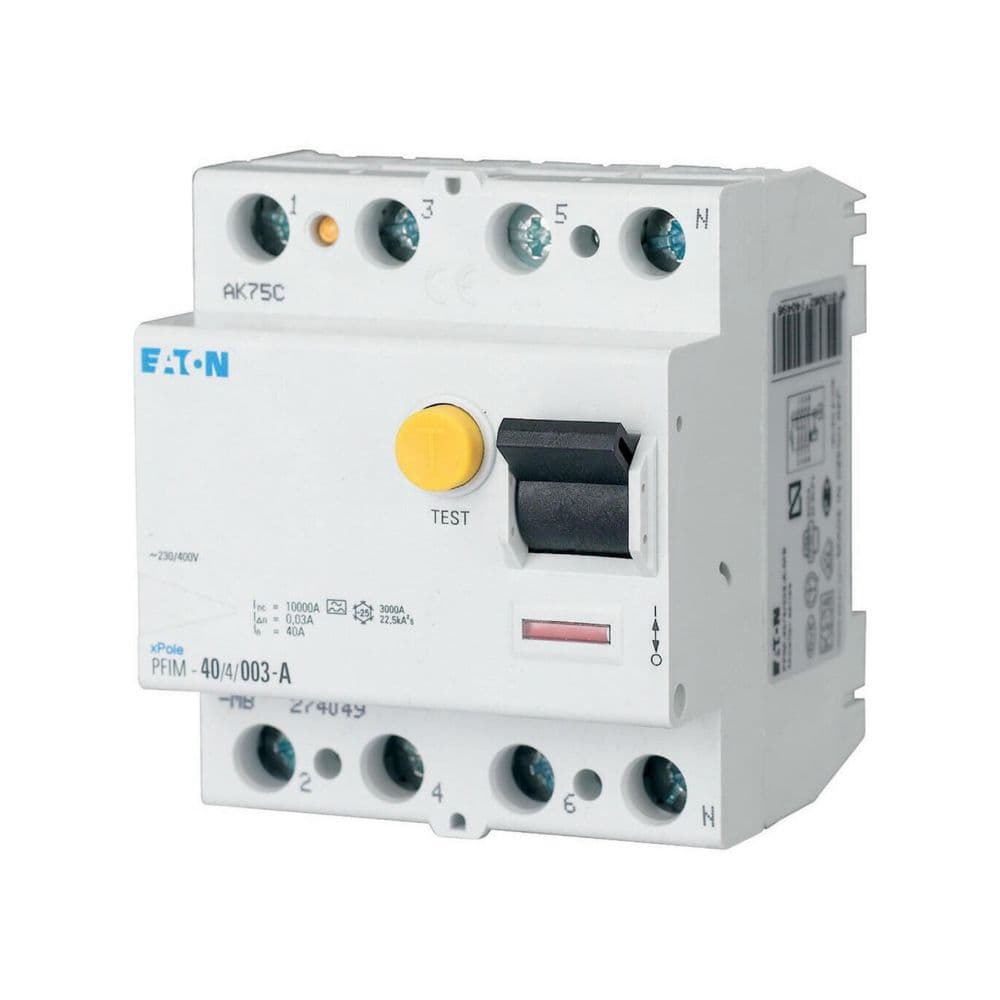

Eaton Moeller series xPole - PFIM Type AC, A, U, R RCCB

المواصفات

FunctionsShort-time delayed tripping
Special featuresCurrent test marks as per inscriptionMaximum operating temperature is 60 °C: Starting at 40 °C, the max. permissible continuous current decreases by 2.5% for every 1 °CTripping signal contact for subsequent installation Z-NHK 248434
Product NameEaton Moeller series xPole - PFIM Type AC, A, U, R RCCB
Catalog Number294294
Model CodePFIM-40/4/003-G
EAN4015082942946
Product Length/Depth76 mm
Product Height80 mm
Product Width70 mm
Product Weight0.32 kg
CompliancesRoHS conform
CertificationsIEC/EN 61008
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.294294.html
Used withResidual current circuit breakers PFIM Type G ( VE E 8601) KLV-TC-4 276241 (Compact enclosure) Z-FW/LP 248296 (Remote control and automatic switching device) Z-RC/AK-4MU 101062 (sealing cover set)
FeaturesResidual current circuit breaker Additional equipment possible
Accessories requiredZ-HK 248432
