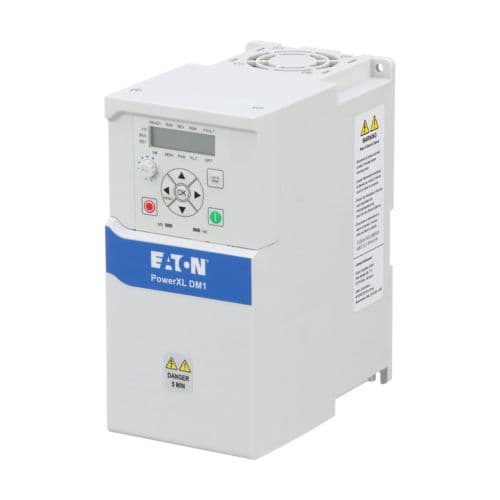

Eaton DM1 Variable frequency drive

Name: Eaton DM1 Variable frequency drive
Brand: Eaton
SKU: 3-5011-006A

رقم القطعة: 3-5011-006A

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton DM1 Variable frequency drive

Product Name	Eaton DM1 Variable frequency drive
Catalog Number	3-5011-006A
Model Code	DM1-34016EB-S20S-EM
EAN	4015081981045
Product Length/Depth	180 mm
Product Height	220 mm
Product Width	109 mm
Product Weight	2.6 kg
Certifications	Certified by UL for use in Canada IEC/EN 61800-5-1 CSA-C22.2 No. 274-17 C-Tick UkrSEPRO UL File No.: E134360 CE IEC/EN61800-5 CUL RoHS, ISO 9001 UL UL 508C UL Listed IEC/EN61800-3 IEC/EN 61800-2 UL Category Control No.: NMMS, NMMS7 IEC/EN 61800-3 EAC CSA-C22.2 No. 274-13 CE marking UL report applies to both US and Canada
Source URL	https://www.eaton.com/gb/en-gb/skuPage.3-5011-006A.html
Braking torque	Max. 30 % MN, Standard - Main circuit Max. 100 % of rated operational current Ie with external braking resistor - Main circuit Adjustable to 150 %, DC - Main circuit
Braking resistance	35 Ω
Switch-on threshold for the braking transistor	800 VDC
