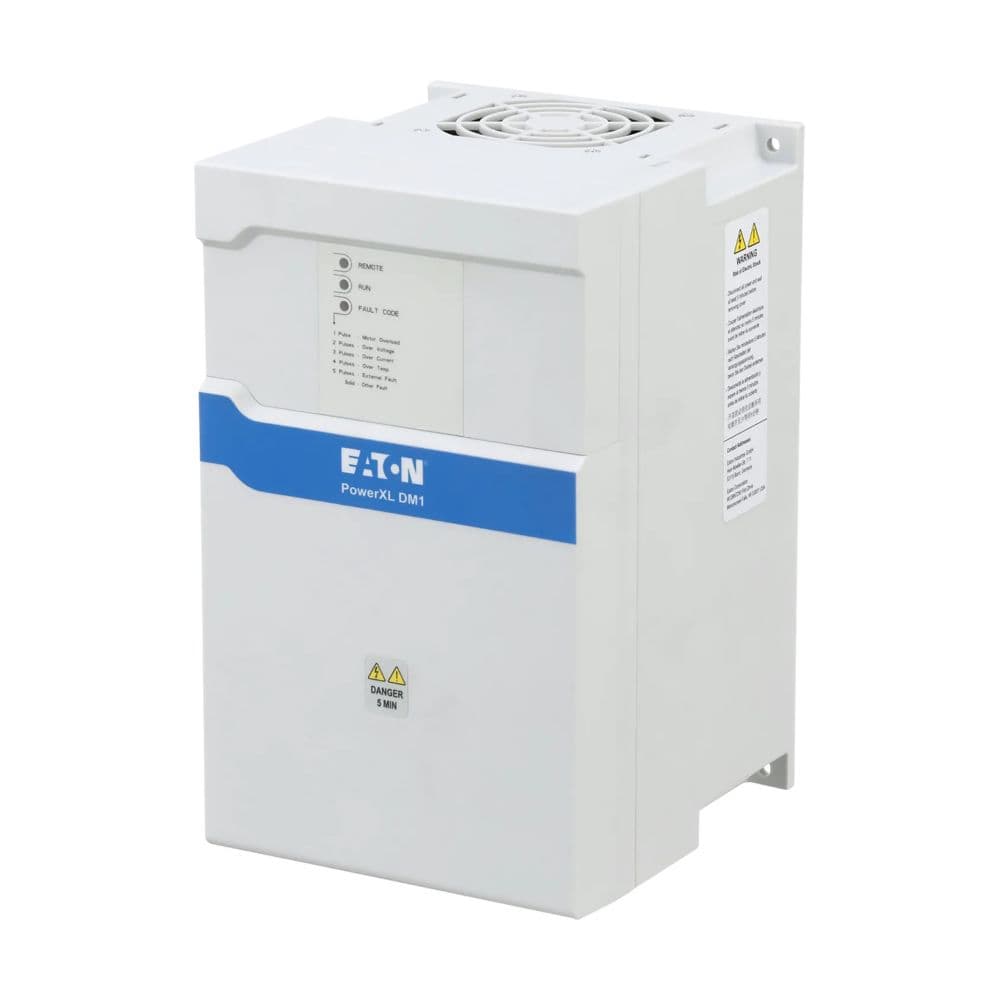

Eaton DM1 Variable frequency drive

Name: Eaton DM1 Variable frequency drive
Brand: Eaton
SKU: 3-5031-004A

رقم القطعة: 3-5031-004A

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton DM1 Variable frequency drive

Product Name	Eaton DM1 Variable frequency drive
Catalog Number	3-5031-004A
Model Code	DM1-34038EB-N20B-EM
EAN	4015081980499
Product Length/Depth	195 mm
Product Height	300 mm
Product Width	184 mm
Product Weight	6.3 kg
Certifications	UL 508C UL Category Control No.: NMMS, NMMS7 IEC/EN 61800-2 CSA-C22.2 No. 274-17 CSA-C22.2 No. 274-13 UkrSEPRO IEC/EN 61800-3 RoHS, ISO 9001 IEC/EN61800-3 C-Tick CUL UL IEC/EN 61800-5-1 IEC/EN61800-5 UL File No.: E134360 CE marking Certified by UL for use in Canada EAC UL Listed UL report applies to both US and Canada CE
Source URL	https://www.eaton.com/gb/en-gb/skuPage.3-5031-004A.html
Braking torque	Adjustable to 150 %, DC - Main circuit Max. 100 % of rated operational current Ie with external braking resistor - Main circuit Max. 30 % MN, Standard - Main circuit
Braking resistance	17 Ω
Switch-on threshold for the braking transistor	800 VDC
