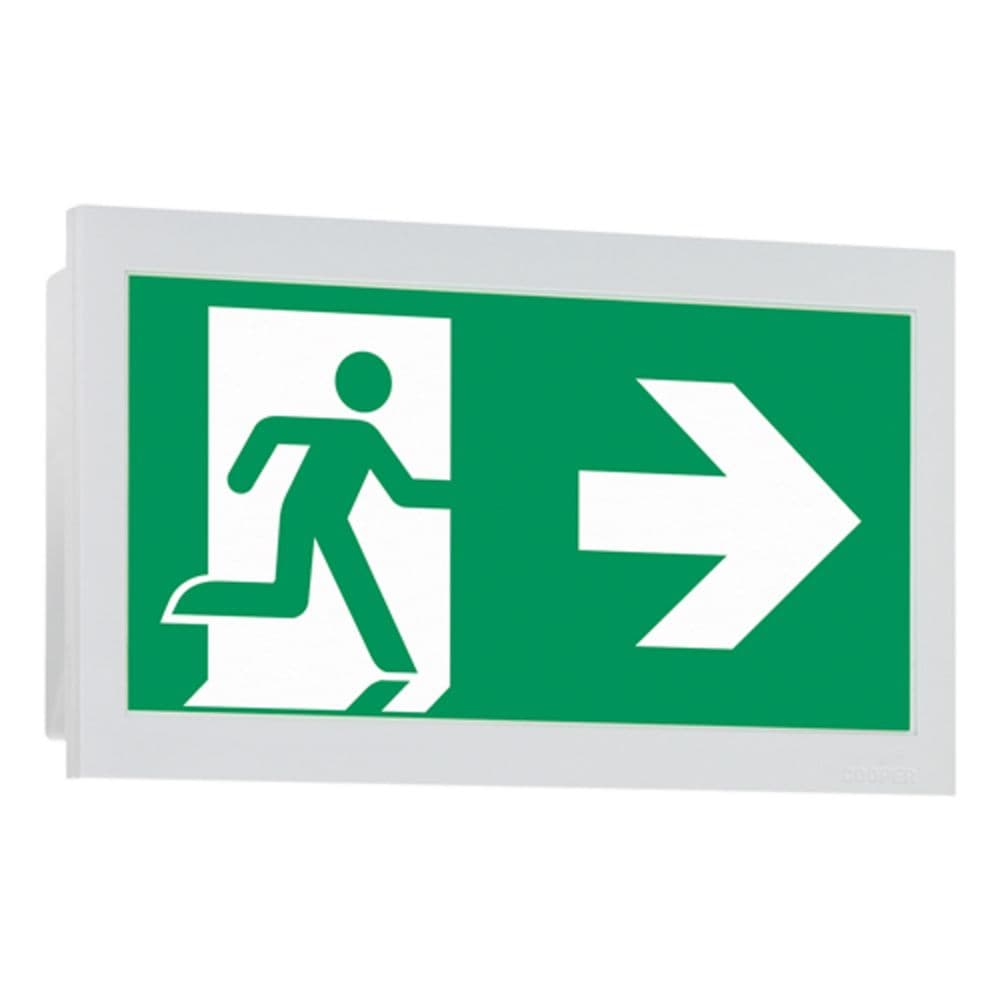

Eaton GuideLed SC Emergency Luminaire

Name: Eaton GuideLed SC Emergency Luminaire
Brand: Eaton
SKU: 40071353262

رقم القطعة: 40071353262

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton GuideLed SC Emergency Luminaire

المواصفات

Product Name	Eaton GuideLed SC Emergency Luminaire
Catalog Number	40071353262
Model Code	GuideLed 11812 1-8h/D CGLine+ rec. wall
EAN	4012539344230
Product Length/Depth	295 mm
Product Height	45 mm
Product Width	115 mm
Product Weight	0.58 kg
Certifications	CE
Source URL	https://www.eaton.com/gb/en-gb/skuPage.40071353262.html
Mounting method	Surface mounting/recessed mounting
Connection type	Plug-in connection
Voltage type	AC
Energy efficiency class	A
Lamp type	LED not exchangeable
Lamp holder	Other
Impact strength	IK03
Built-in width	115 mm
Function	Escape route signage
Apparent power at mains operation(50cd)	5.3 VA
Autonomy	1/3/8 hours
Built-in height/depth	2 mm
Built-in Length	295 mm
Color housing	Grey
Color of light	White
Color rendering index (CRI)	70-79
Conductor cross section	2.5
Effective power at mains operation (50cd)	4.7 W
Energy efficiency class of the built-in lamp	A++, A+, A (LED)
Kind of luminaire	Exit sign luminaire
Labelling type	Insert sheet/plate
Light distributor	Diffuser lens/optic/panel
Material cover	Plastic, opal
Material housing	Plastic
Max. system power	4.7 W
Mode	Maintained / Non-Maintained (M / NM)
Monitoring equipment	Safety module for monitoring (central feeded system)
Nominal operation time - max	8 hour
Nominal operation time - min	1 hour
Nominal voltage AC - max	240 V
Nominal voltage AC - min	220 V
Number of lighting heads	1
Number Of Poles (Numeric)	3
Pictogram included	False
Power factor	0.88
Power supply system	Peripheral (individual battery)
RAL-Number (Similar) Housing	7025
Rated ambient temp acc. IEC62722-2-1 - Max	30 °C
Rated ambient temp acc. IEC62722-2-1 - Min	0 °C
Rated life time L70/B50 at 25 °C	50000 hour
Rated life time L90/B10 at 25 °C	50000 hour
Rated Luminous Flux Acc. IEC 62722-2-1	115 lm
Reserve-polarity protected	True
Suitable for continuous circuit	Yes
Suitable for standby switching	Yes
Type of control gear	LED operating device voltage-controlled
Type of indicator	Only single-sided
Type of wiring	Suitable for through wiring
Viewing distance	30 m
Wiring system	Continuous circuit/emergency circuit
With light source	False
With remote control	No
With remote switch connection	True
