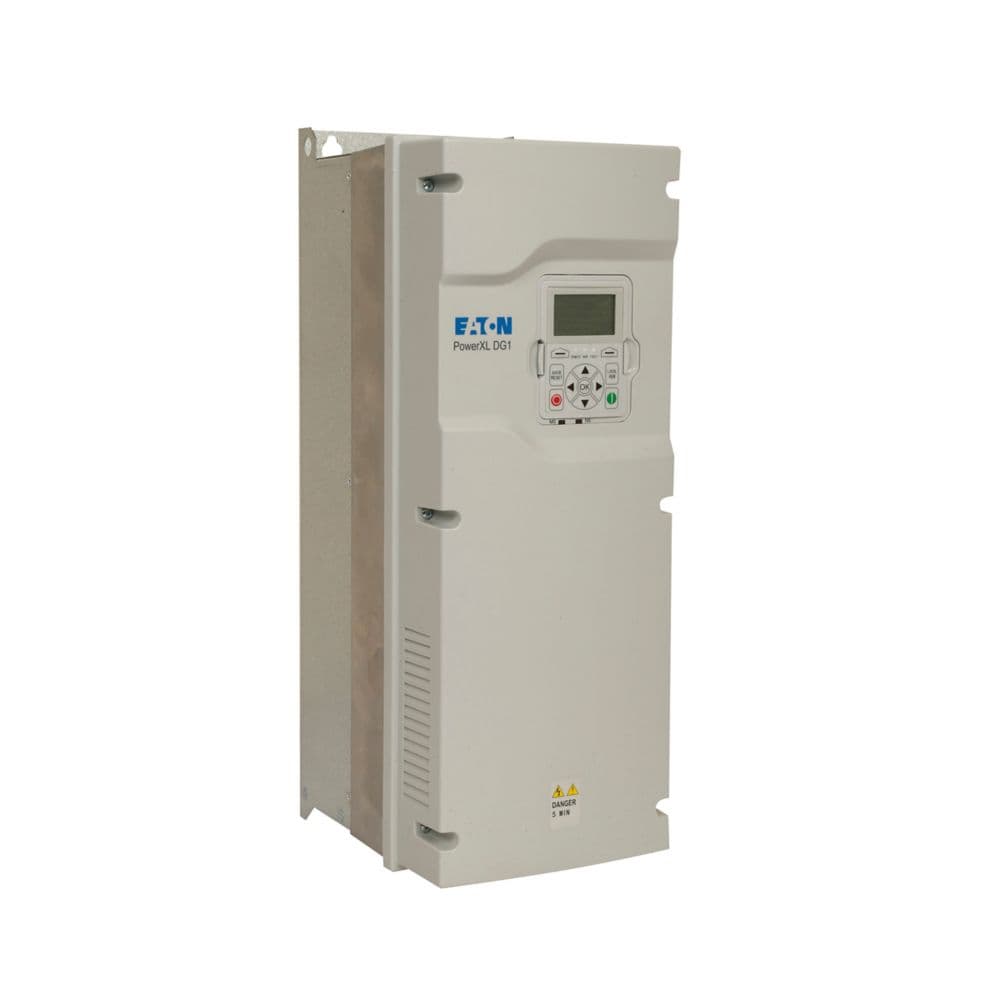

Eaton DG1 variable frequency drive

Eaton

Eaton DG1 variable frequency drive

رقم القطعة: 9701-3103-00P

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton DG1 variable frequency drive

المواصفات

Product NameEaton DG1 variable frequency drive
Catalog Number9701-3103-00P
Model CodeDG1-32048FB-C54C
EAN4015081734238
Product Length/Depth265.1 mm
Product Height558 mm
Product Width204.6 mm
Product Weight22 kg
CertificationsCertified by UL for use in Canada CSA-C22.2 No. 274-13 UL UL File No.: E134360 CE IEC/EN 61800-3 IEC/EN61800-3 RoHS, ISO 9001 UL report applies to both US and Canada EAC IEC/EN61800-5 UL Category Control No.: NMMS, NMMS7 CUL Specification for general requirements: IEC/EN 61800-2 C-Tick Safety requirements: IEC/EN 61800-5 UL508 UkrSEPRO
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.9701-3103-00P.html
Catalog NotesThe brake resistors are assigned based on the maximum rated power of the variable frequency drive. Additional brake resistors and designs (e.g. different duty cycles) are available upon request.
Apparent power at 230 V24.3 kVA
Apparent power at 240 V25.4 kVA
