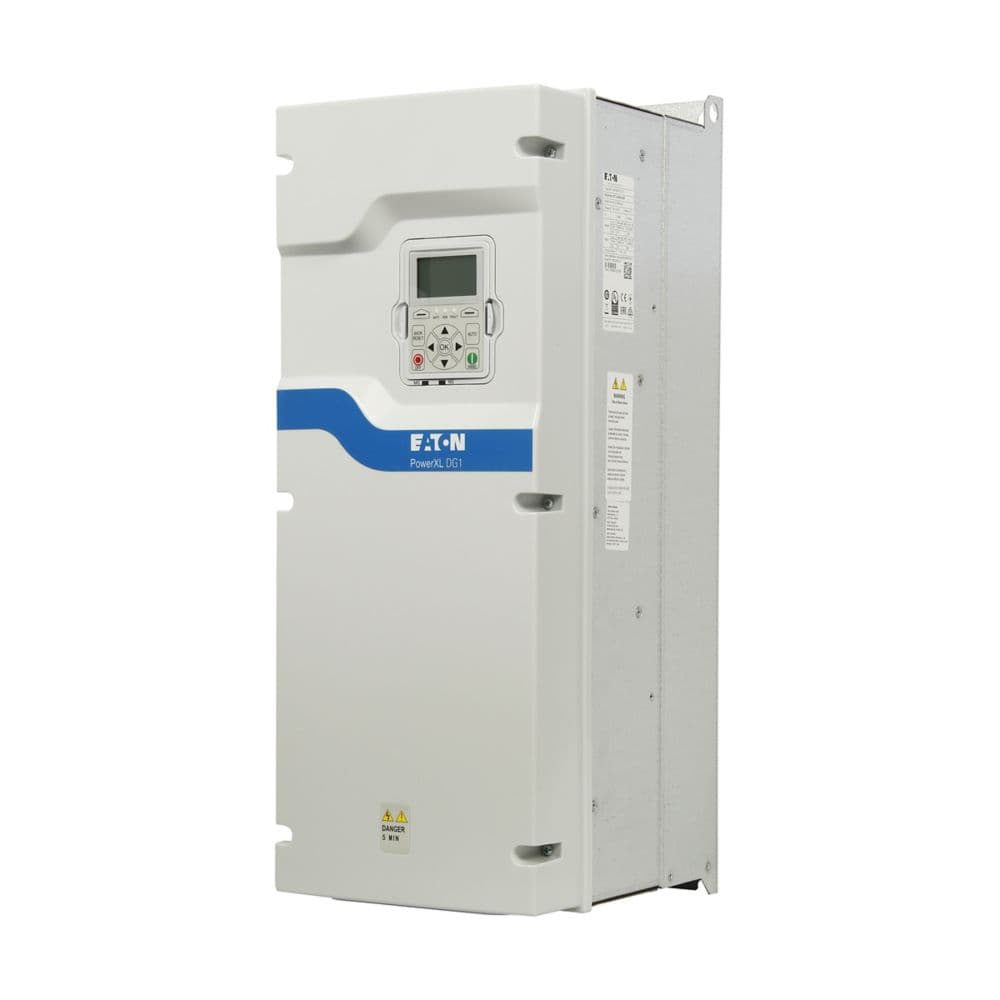

Eaton DG1 variable frequency drive

Eaton

Eaton DG1 variable frequency drive

رقم القطعة: 9702-4010-00P

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton DG1 variable frequency drive

المواصفات

Product NameEaton DG1 variable frequency drive
Catalog Number9702-4010-00P
Model CodeDG1-34087FB-C21C
EAN4015081710966
Product Length/Depth294 mm
Product Height630 mm
Product Width237.7 mm
Product Weight35.8 kg
CertificationsSafety requirements: IEC/EN 61800-5 UL508 Specification for general requirements: IEC/EN 61800-2 UL EAC IEC/EN61800-3 CUL RoHS, ISO 9001 UL Category Control No.: NMMS, NMMS7 CSA-C22.2 No. 274-13 UkrSEPRO UL File No.: E134360 IEC/EN61800-5 CE UL report applies to both US and Canada Certified by UL for use in Canada C-Tick IEC/EN 61800-3
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.9702-4010-00P.html
Catalog NotesThe brake resistors are assigned based on the maximum rated power of the variable frequency drive. Additional brake resistors and designs (e.g. different duty cycles) are available upon request.
Apparent power at 400 V72.7 kVA
Apparent power at 480 V90.9 kVA
