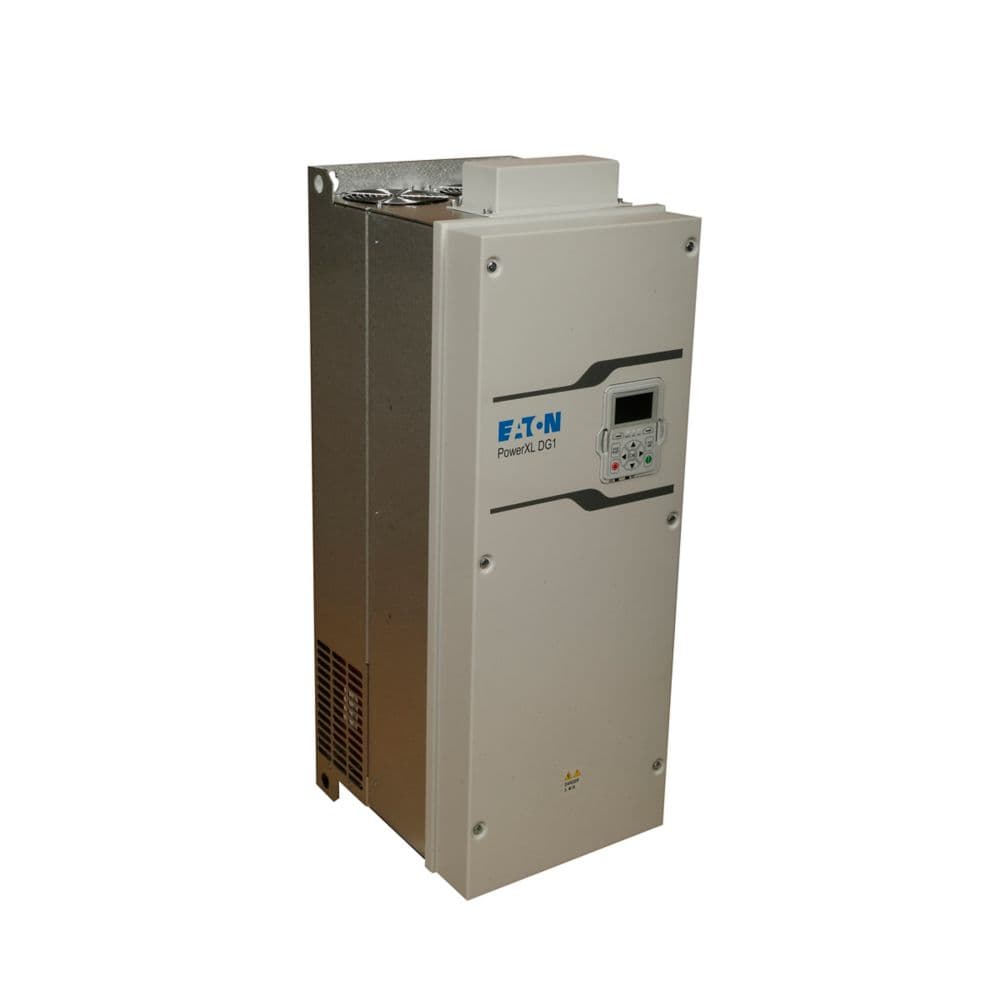

Eaton DG1 variable frequency drive

Eaton

Eaton DG1 variable frequency drive

رقم القطعة: 9702-5002-00P

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton DG1 variable frequency drive

المواصفات

Product NameEaton DG1 variable frequency drive
Catalog Number9702-5002-00P
Model CodeDG1-34105FB-C21C
EAN4015081711024
Product Length/Depth340.7 mm
Product Height888.5 mm
Product Width288 mm
Product Weight75.9 kg
CertificationsC-Tick Certified by UL for use in Canada IEC/EN61800-3 CSA-C22.2 No. 274-13 IEC/EN 61800-3 UL508 RoHS, ISO 9001 CUL EAC Specification for general requirements: IEC/EN 61800-2 UkrSEPRO UL UL File No.: E134360 CE IEC/EN61800-5 Safety requirements: IEC/EN 61800-5 UL Category Control No.: NMMS, NMMS7 UL report applies to both US and Canada
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.9702-5002-00P.html
Catalog NotesThe brake resistors are assigned based on the maximum rated power of the variable frequency drive. Additional brake resistors and designs (e.g. different duty cycles) are available upon request.
Apparent power at 400 V97 kVA
Apparent power at 480 V121.2 kVA
