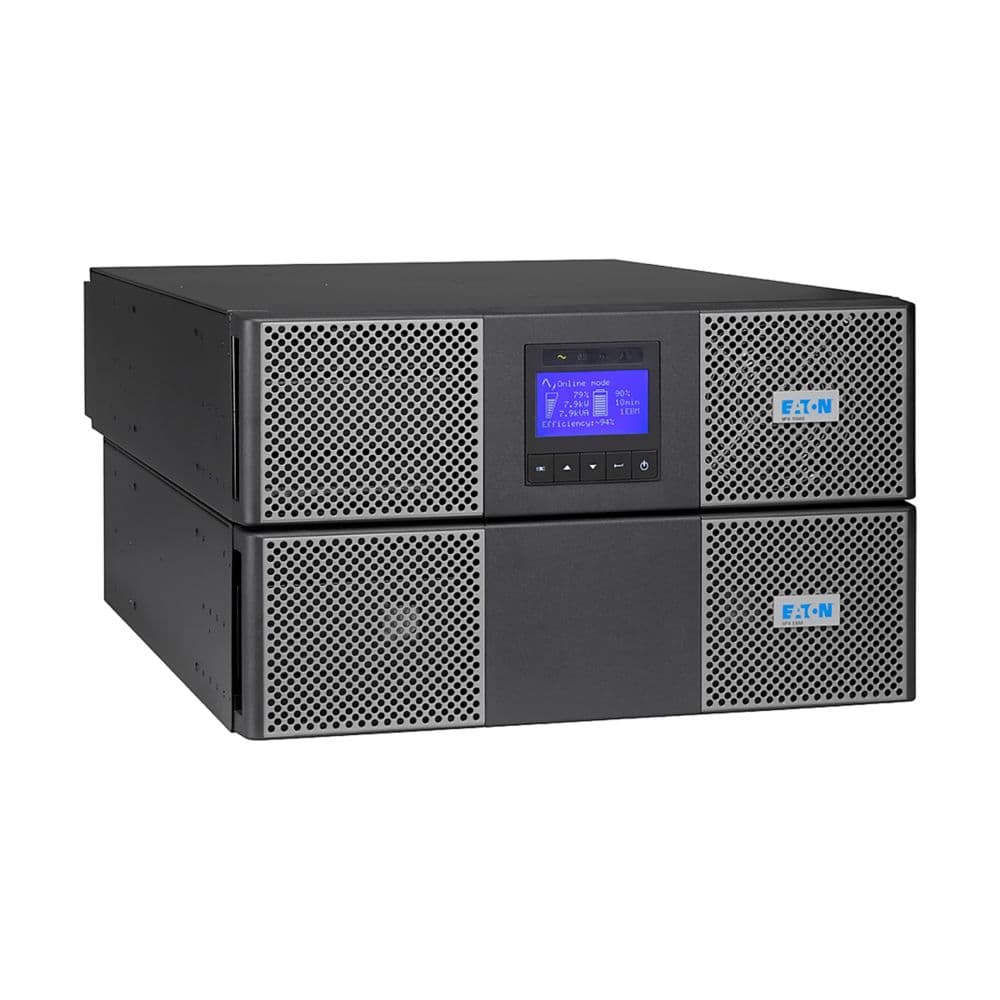

Eaton 9PX UPS
رقم القطعة: 9PX8KIRTNBP
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
Eaton 9PX UPS
المواصفات
| Special features | Double conversion topologyConstantly monitors power conditions and regulates voltage and frequencyProvides more real power (watts) to protect more equipment with a 0.9 power factorEnergy Star qualified, provides the highest efficiency level to reduce energy and cooling costsInternal bypass allows service continuity in case of UPS faultNext-generation graphical LCD displayNetwork card and rackmounting kit delivered as standardCompatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)Meter energy consumption (at the UPS level)Parallel operation using HotSync technologyHot swappable batteries |
|---|---|
| Product Name | Eaton 9PX UPS |
| Catalog Number | 9PX8KIRTNBP |
| Model Code | Eaton 9PX 8000i RT6U HotSwap Netpack |
| Product Length/Depth | 70 cm |
| Product Height | 26 cm |
| Product Width | 44 cm |
| Product Weight | 84 kg |
| Compliances | CE Marked TUV |
| Certifications | IEC/EN 62040-1 IEC/EN 62040-2 CE EAC |
| Source URL | https://www.eaton.com/gb/en-gb/skuPage.9PX8KIRTNBP.html |
| Color | Black/silver |
| Altitude | 3000 m |
| Construction type | 482.6 mm (19 inch) device |
| Voltage type | AC |
| Power consumption | 432 W |
| Type Of Interface | Other |
| Auto shutdown function | Yes |
| Input connection | Hardwired/fixed connection |
| Input nominal voltage | 230V default (200/208/220/230/240/250V) |
| Input voltage - max | 276 V |
| Input voltage - min | 100 V |
| Output frequency | 50/60 Hz |
| Output power factor | 0.9 |
| Output voltage - max | 250 V |
| Output voltage - min | 200 V |
| Package contents | Power ModuleExtended battery module (EBM)Maintenance BypassNetwork Management Card(2) brackets for 19’ mounting(2) Rack-mounting kitUSB cableSerial cableBattery cable with comms for automatic battery cabinet recognition(2) Supports for tower mountingLink plateSafety instructionsQuickstart guide |
| Phase (input) | 1 |
| Phase (output) | 1 |
| Potential free switch contact | Yes |
| Primary frequency - min | 40 Hz |
| Primary frequency - max | 70 Hz |
| Runtime at half load | 16 min |
| Integrated functionality | Network Mangement |
| Topology | Online/Double-conversion |
| Voltage distortion output (linear load) - max | 2 |
| Wattage | 7.2 kW |
| Feed type | 1 |
| Runtime at full load | 5 min |
| Relative humidity | 0-95% non-condensing |
| Protocol | SNMP |
| Efficiency at max. load | 95 |
| Rack mounting kit | Yes |
| Battery quantity | 20 |
| Battery rating | 12 V / 9 Ah |
| Battery type | Sealed, lead-acid |
| Communication | USB port (HID compliant)Serial port (RS232)Mini terminal block for remote On/OffMini-terminal block for remote power offDry contacts (4 outputs, relay, DB9)DB15 for parallel operationNetwork card |
| Rack size | 6U |
| VA rating | 8 kVA |
| Internal bypass | Yes |
| Hot swap power | Yes |
| Nominal frequency | 50/60 Hz |
| Input frequency range | 40-70 Hz |
| Input power factor | >.99 |
| Receptacle | (4) C19, Hardwired |
| Output waveform | Sine wave |
| Voltage | 230V |
| Output nominal voltage | 230V default (200/208/220/230/240/250V) |
| Runtime graph | View runtime graph |
| Battery management | ABM & Temperature compensated charging method (user selectable)Automatic battery testDeep discharge protectionAutomatic recognition of external battery units |
| Battery replacement | Hot-swappable battery modules |
| Extended battery capability | Yes |
| Expansion slots | One slot, network card included |
| Ethernet interface | Yes |
| Includes network card | Yes |
| Software compatibility | Eaton Intelligent Power Manager, Eaton Intelligent Power Protector |
| User interface | Multilingual graphical LCD display |
| BTU Rating | Online: 1472 |
| Noise level | <48 dB at 1 meter |
| Temperature range | 0° to 40°C (32° to 104°F) |
| Secondary frequency - max | 60 Hz |
| Secondary frequency - min | 50 Hz |
| Efficiency (eco-mode) | 98 |
| Input voltage range | 176-276 V (100-276 V with derating) |
| Max number of battery packs | 12 (supercharger required for more than 6 EBM) |
| Output voltage range | 200/208/220/230/240/250 V +/- 1% |
| Number of Outputs C19 | 4 |
| Number of outputs hardwired | 1 |
