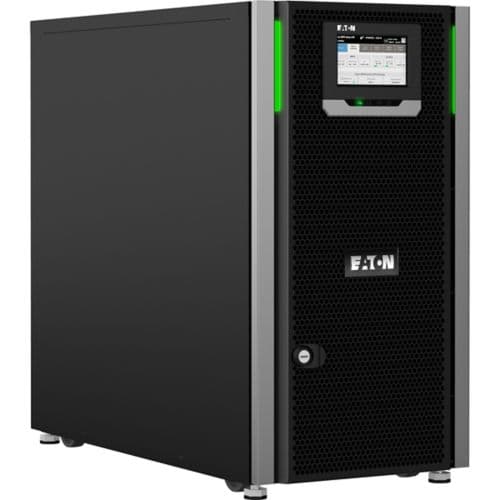

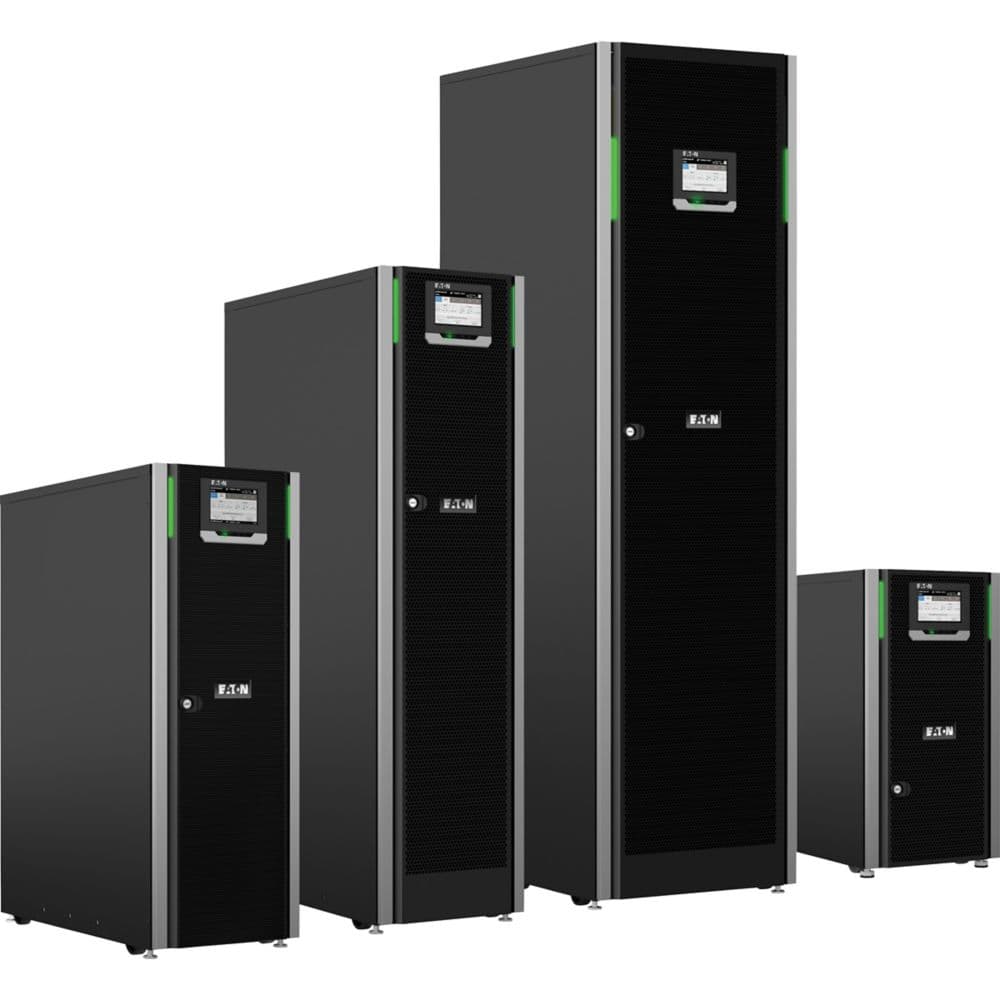

Eaton 91PS and 93PS UPS
رقم القطعة: BA51AA306A01000000
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
Eaton 91PS and 93PS UPS
المواصفات
| Product Name | Eaton 91PS and 93PS UPS |
|---|---|
| Catalog Number | BA51AA306A01000000 |
| Model Code | 93PS-15(20)-20-1x9Ah-MBS-6 |
| EAN | 6430070722108 |
| Product Length/Depth | 33.5 cm |
| Product Height | 130 cm |
| Product Width | 75 cm |
| Product Weight | 190 kg |
| Compliances | CE Marked RoHS Compliant CB |
| Certifications | IEC/EN 62040-2 IEC/EN 62040-1 EN 62040-3 Manufactured in a plant certified to ISO 9001 and ISO 14001 management system standards |
| Source URL | https://www.eaton.com/gb/en-gb/skuPage.BA51AA306A01000000.html |
| Color | Black |
| Mounting method | Tower |
| Construction type | Free standing model |
| Application | Data center/ facility/IT |
| Type Of Interface | Other |
| Audible alarms | Yes |
| Auto shutdown function | Yes |
| Battery charger type | ABM technology |
| External battery connection | Hardwired |
| Form factor | Tower |
| Hot-swappable power modules | No |
| Improved efficiency mode | ESS with VMMS |
| Input connection | Fixed connection |
| Input frequency - max | 60 Hz |
| Input frequency - min | 50 Hz |
| Input nominal voltage | 400V default (380/400/415V) |
| Input voltage - max | 415 V |
| Input voltage - min | 380 V |
| Internal battery included | Yes |
| Internal maintenance bypass | Yes |
| Number of output connections fixed connection | 1 |
| Output apparent power | 10000 VA |
| Output effective power | 10000 W |
| Output frequency | 50 Hz (50/60 Hz programmable) |
| Output power factor | 1 |
| Output voltage - max | 415 V |
| Output voltage - min | 380 V |
| Overall efficiency | 96 % |
| Package contents | UPSQuickstart guideSafety instructions |
| Parallelable | Parallel for capacity and redundancy |
| Phase (input) | 3 |
| Phase (output) | 3 |
| Potential free switch contact | Yes |
| Primary frequency - min | 50 Hz |
| Primary frequency - max | 60 Hz |
| Runtime at half load | 12 min |
| Secondary Frequency Max | 60 Hz |
| Secondary Frequency Min | 50 Hz |
| Snmp | Yes |
| Integrated functionality | Network Mangement Modular |
| Topology | Online |
| Transition time for full load | 0 s |
| Voltage distortion output (linear load) - max | 1.5 % |
| Wattage | 10 kW |
| Feed type | AC |
| kVA rating | 10 kVA |
| Runtime at full load | 4 min |
| Efficiency (eco-mode) | 99 % |
| Efficiency (improved efficiency mode) | 99 % |
