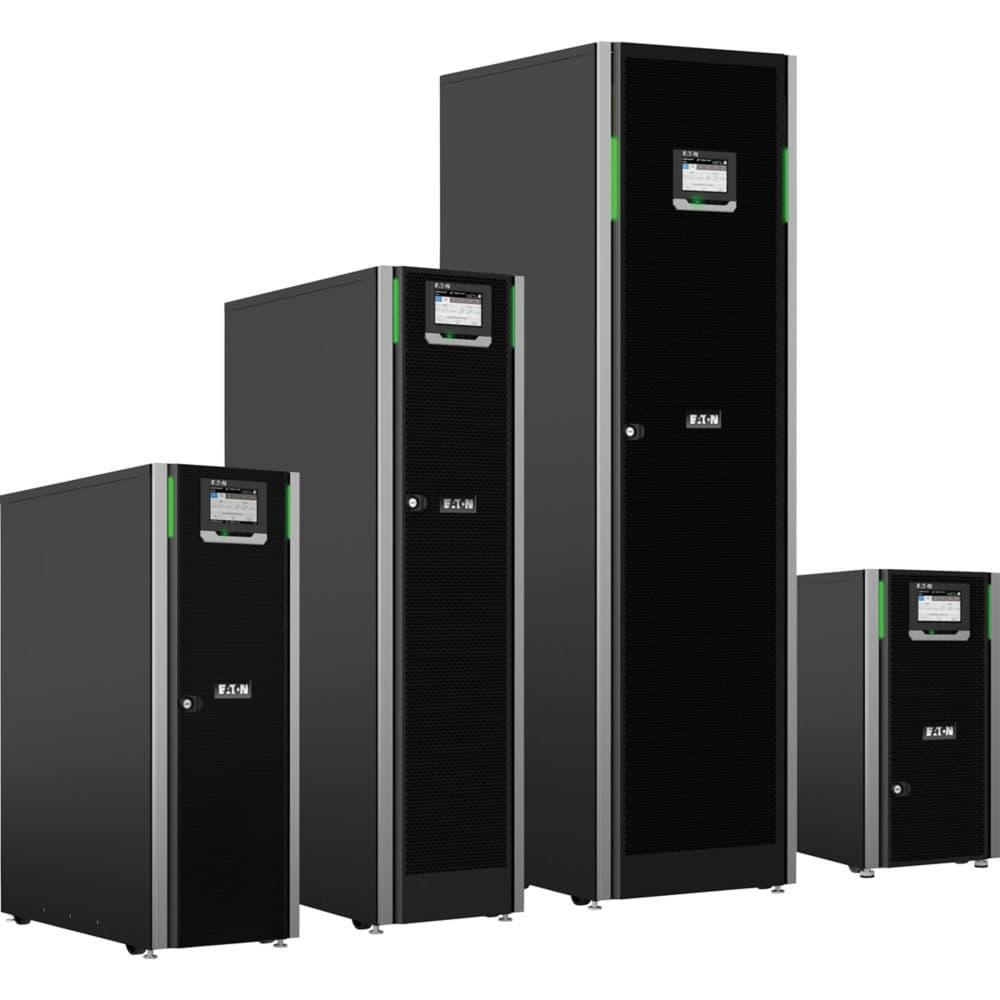

Eaton 91PS and 93PS UPS

Eaton

Eaton 91PS and 93PS UPS

رقم القطعة: BG80A5206A01100000

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton 91PS and 93PS UPS

المواصفات

Product NameEaton 91PS and 93PS UPS
Catalog NumberBG80A5206A01100000
Model Code91PS-8(15)-15-1x9Ah-LL-6
EAN6430070720906
Product Length/Depth75 cm
Product Height130 cm
Product Width33.5 cm
Product Weight188 kg
CompliancesCE Marked RoHS Compliant CB
CertificationsIEC/EN 62040-2 IEC/EN 62040-1 EN 62040-3 Manufactured in a plant certified to ISO 9001 and ISO 14001 management system standards
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.BG80A5206A01100000.html
ColorBlack
Mounting methodTower
Construction typeFree standing model
ApplicationData center/ facility/IT
Type Of InterfaceOther
Audible alarmsYes
Auto shutdown functionYes
Battery charger typeABM technology
External battery connectionHardwired
Form factorTower
Hot-swappable power modulesYes
Improved efficiency modeESS with VMMS
Input connectionFixed connection
Input frequency - max60 Hz
Input frequency - min50 Hz
Input nominal voltage400V default (380/400/415V)
Input voltage - max415 V
Input voltage - min380 V
Internal battery includedYes
Internal maintenance bypassNo
Number of output connections fixed connection1
Number Of Output Connections With Protective Contact (Schuko)0
Output apparent power8000 VA
Output effective power8000 W
Output frequency50 Hz (50/60 Hz programmable)
Output power factor1
Output voltage - max240 V
Output voltage - min220 V
Overall efficiency96 %
Package contentsUPSQuickstart guideSafety instructions
ParallelableParallel for capacity and redundancy
Phase (input)3
Phase (output)1
Potential free switch contactYes
Primary frequency - min50 Hz
Primary frequency - max60 Hz
Runtime at half load27 min
Secondary Frequency Max60 Hz
Secondary Frequency Min50 Hz
SnmpYes
Integrated functionalityNetwork Mangement Modular
TopologyOnline
Transition time for full load0 s
Voltage distortion output (linear load) - max1.5 %
Wattage8 kW
Feed typeAC
kVA rating8 kVA
Runtime at full load11 min
Runtime graphView runtime graph
Efficiency (eco-mode)99 %
Efficiency (improved efficiency mode)99 %
Number of communication slots2
Number of parallel units4
Power module rating - max15 kVA
Start-on-batteryYes
User Interface (Hmi)5 inch touch-screen
User replacable batteriesNo
