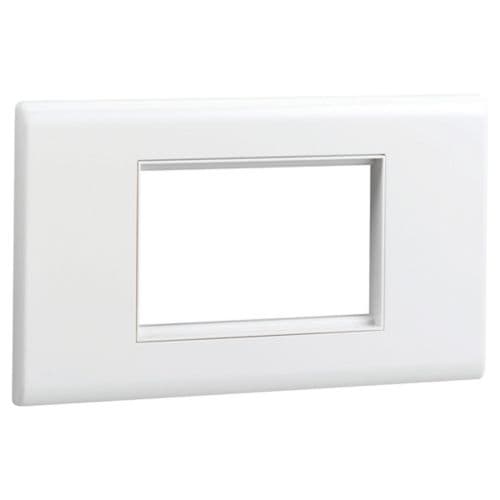

Eaton Moeller series Luxury finish range (COPA) - Wiring devices

Eaton

Eaton Moeller series Luxury finish range (COPA) - Wiring devices

رقم القطعة: C9111WH

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series Luxury finish range (COPA) - Wiring devices

المواصفات

FunctionsDimming phase cut-off
Special featuresTerminal Screw Zinc Coated Steel with clear Passivation
Product NameEaton Moeller series Luxury finish range (COPA) - Wiring devices
Catalog NumberC9111WH
Model CodeC9111WH
EAN5010826133085
Product Length/Depth45 mm
Product Height86 mm
Product Width86 mm
Product Weight0.1 kg
CompliancesRoHS conform
CertificationsIEC 60669-2-1 BS EN 60669-2-1
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.C9111WH.html
Used withDimmer Copa
FeaturesApplicable with button Light value memory Halogen free
TypeCopaDimmer
Surface finishingMatt
Degree of protectionIP3X
Surface protectionUntreated
ColorWhite
Mounting methodFlush mounted (plaster)
MaterialPlastic
Material qualityDuroplast
Voltage rating250 V AC
Connection typeScrew terminal
Nominal voltage - max250 V
RAL-number (Akin)0
Fastening typeScrew mounting
Wattage1000 W
Built-in installation box depth - min35 mm
Frequency rating - max50 Hz
Frequency rating - min50 Hz
Load typeUniversal
Nominal voltage - min220 V
Head styleSlotted head
Assembly arrangementBasic element with full cover plate
Base colorBlack
Base materialThermoplastic
Terminal materialBrass
Number of modules (module system)0
Number of gangs2
Fixing centers120.6 mm
Front plate color/finishingWhite
Front plate depth6.5 mm
Front plate materialThermoplastic
Front plate/module dimensions146 mm x 86 mm
Method of operationTurn button
Terminal capacity (LN and E)1 mm² (4x) or 1.5 mm² (3x) or 2.5 mm² (1x)
Recommended back box depth - min35 mm
COPA interiorWhite insert
Control voltage - max240 V
Control voltage - min60 V
Core cross section - max2.5 mm²
Core cross section - min1 mm²
