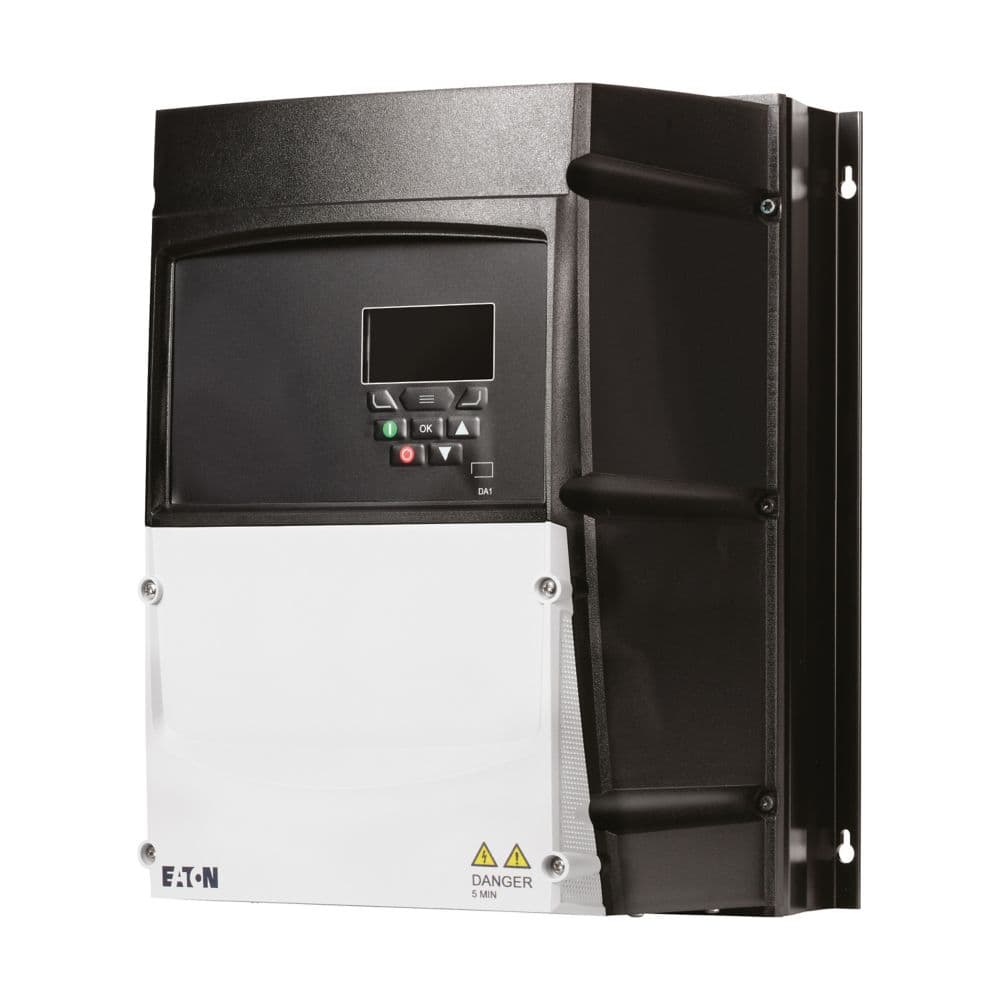

Eaton DA1 Variable frequency drive

Eaton

Eaton DA1 Variable frequency drive

رقم القطعة: EP-400049

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton DA1 Variable frequency drive

المواصفات

Product NameEaton DA1 Variable frequency drive
Catalog NumberEP-400049
Model CodeDA1-34030FB-B66O
EAN4015082950316
Product Length/Depth271 mm
Product Height360 mm
Product Width240 mm
Product Weight9.5 kg
CertificationsCE Certified by UL for use in Canada CSA-C22.2 No. 14 CUL DNV EAC IEC/EN 61800-3 IEC/EN61800-3 IEC/EN61800-5 RCM RoHS, ISO 9001 Safety: EN 61800-5-1: 2003 Specification for general requirements: IEC/EN 61800-2 UkrSEPRO UL UL 508C UL Category Control No.: NMMS, NMMS7 UL File No.: E172143 UL report applies to both US and Canada
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.EP-400049.html
Catalog NotesThe brake resistors are assigned based on the maximum rated power of the variable frequency drive. Additional brake resistors and designs (e.g. different duty cycles) are available upon request.
Apparent power at 400 V20.78 kVA
Apparent power at 480 V24.94 kVA
