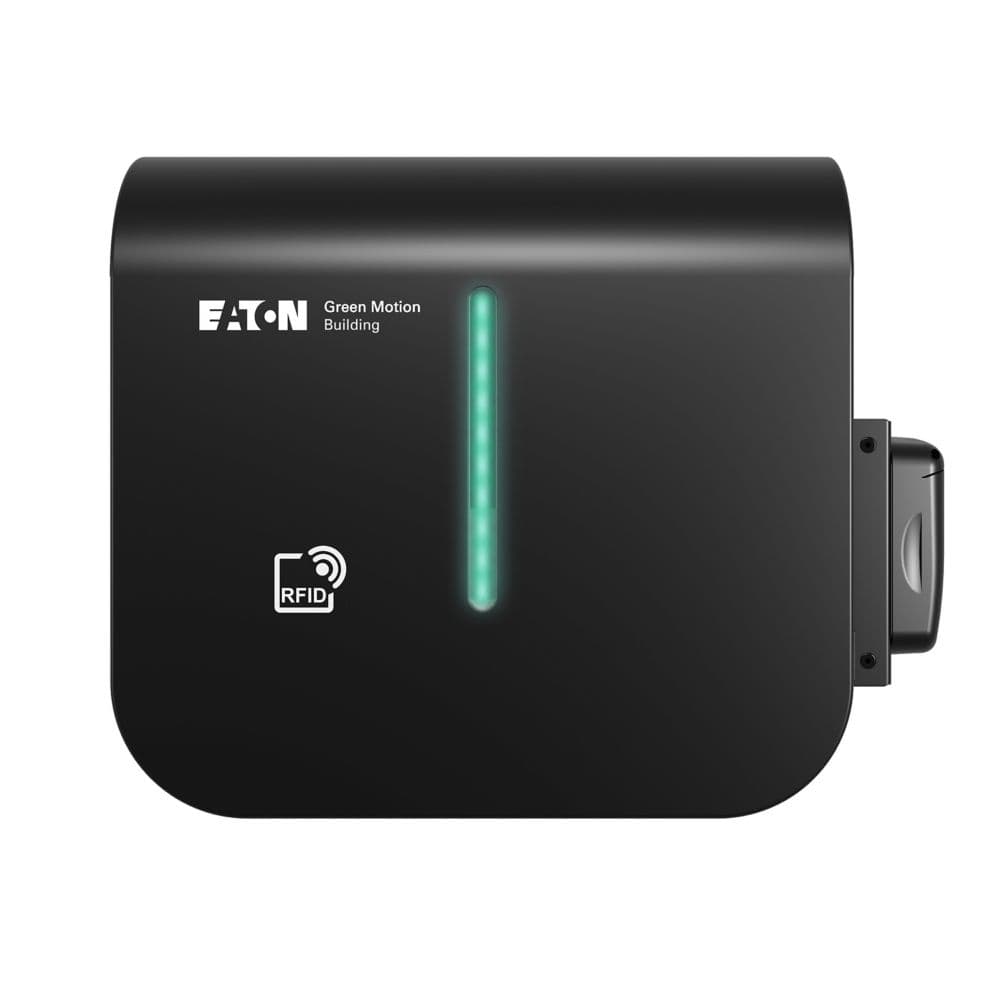

Eaton Green Motion Building EV charging station

Eaton

Eaton Green Motion Building EV charging station

رقم القطعة: GMB2202BBAA00A00

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Green Motion Building EV charging station

المواصفات

FunctionsAccess control
Special featuresEaton Green Motion Building is an AC electric vehicle charger specifically designed for indoor and outdoor use in private and public parking facilities for multi-residential, light commercial and industrial applications. - Safe EV charging - Proven EV charging technology - Convenient charging suited to all types of private electric vehicles - Type 2 cable or socket - Compact - Wall- or floor-mounted - Future proof EV charging with easily adjustable output power - RFID and mobiles applications Can be integrated with any OCPP 1.6J-based CPO software Certified MID meter Static and dynamic load balancing Grid stability through phase balancing Modbus TCP/IP to integrate with Energy Management Systems
Product NameEaton Green Motion Building EV charging station
Catalog NumberGMB2202BBAA00A00
Model CodeGMB 3.7-22kW T2S MID 4G
EAN3553340301889
Product Length/Depth116 mm
Product Height291 mm
Product Width263 mm
Product Weight3.1 kg
CompliancesIEC 61851-1 CE Marked
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.GMB2202BBAA00A00.html
Degree of protectionIP54 IK08
Enclosure materialPlastic
Mounting methodWall mounting
Fitted with:Load management Energy meter Communication interface
Amperage Rating32 A
Voltage rating400V
Frequency rating50 Hz
Cable typeType 2 connector
Package contentsGreen Motion Building EV chargerQuickstart guideSafety guidelinesDrilling templateAdhesive gaskets Spacers Ethernet extender
ProtocolOCPP
Cord length0 m
PhaseThree-phase
Operating Temperature-25°C to 45°C
NFC (Near Field Communication)No
Network-enabled as a masterYes
DC residual current detectionYes
Contactor welding detectionYes
Export of charging logsNo
Operation and configuration by appYes
Connectable conductor cross section - min10 mm²
With built-in RFID card readerYes
With key switchNo
Open Charge Point Protocoll (OCPP) version1.6
Plug and charge (ISO 15118)No
Network-enabled as an extenderYes
Charging cable permanently lockable at charging deviceNo
Networkable via LANYes
With MID compliant energy meterYes
Static load management integratedYes
Suitable for dynamic load managementYes
Backend included in deliveryNo
Calibration law compliantNo
Radio standard 5GNO
Networkable via Wi-FiYES
Input voltage-Min230 V
Input voltage-Max400 V
Nominal connection power22 kW
Number of charging units1
Number of circuit breakers (earth leakage type A)0
Number of circuit breakers (earth leakage type B)0
Number of socket oulets (household)0
Number of socket outlets (CEE)0
Number of socket outlets (GB)0
Number of socket outlets (type 2)1
Number of socket outlets (type 3)0
Number of vehicle connectors (CHAdeMO)0
Number of vehicle connectors (GB AC)0
Number of vehicle connectors (GB DC)0
Number of vehicle connectors (type 1 CCS)0
Number of vehicle connectors (type 1)0
Number of vehicle connectors (type 2 CCS)0
Number of vehicle connectors (type 2)0
Power per charging point - max22 kW
LED lamp number1
Length of charging cable0 m
Installation side connection model3-phase
Voltage type (supply voltage)AC
Output voltage AC 50 Hz - min220 V
Output voltage AC 50 Hz - max400 V
Output voltage AC 60 Hz - min220 V
Output voltage AC 60 Hz - max400 V
Max. output current AC 50 Hz40 A
