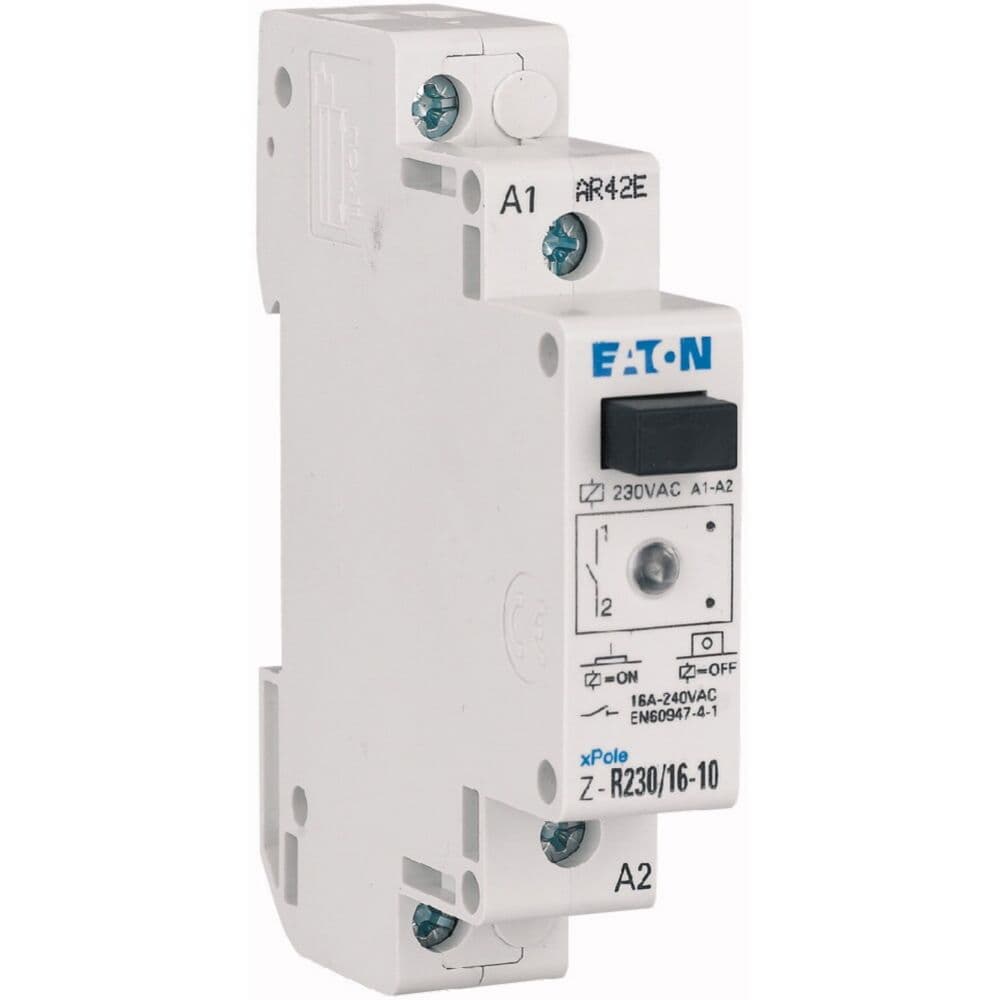

رقم القطعة: ICS-R16A230B010

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Distribution parts

المواصفات

FunctionsMechanical
Number of contacts (normally closed contacts)1
Number of contacts (normally open contacts)0
Product NameEaton Distribution parts
Catalog NumberICS-R16A230B010
Model CodeZ-R230/16-01
EAN9010238026995
Product Length/Depth90 mm
Product Height73 mm
Product Width17.5 mm
Product Weight0.076 kg
CompliancesCE Marked RoHS conform
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.ICS-R16A230B010.html
10.10 Temperature riseThe panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit ratingIs the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibilityIs the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical functionThe device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistanceMeets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosuresMeets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heatMeets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effectsMeets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiationMeets the product standard's requirements.
10.2.5 LiftingDoes not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impactDoes not apply, since the entire switchgear needs to be evaluated.
10.2.7 InscriptionsMeets the product standard's requirements.
10.3 Degree of protection of assembliesDoes not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distancesMeets the product standard's requirements.
10.5 Protection against electric shockDoes not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and componentsDoes not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connectionsIs the panel builder's responsibility.
10.8 Connections for external conductorsIs the panel builder's responsibility.
10.9.2 Power-frequency electric strengthIs the panel builder's responsibility.
10.9.3 Impulse withstand voltageIs the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating materialIs the panel builder's responsibility.
Built-in depth60 mm
Width in number of modular spacings1
Mounting methodDIN rail
Amperage Rating16 A
Rated operational current for specified heat dissipation (In)16 A
Voltage typeAC
Number of contacts (change-over contacts)0
Control voltage 1 typeAC
Control voltage 1 - max250 V
Control voltage 1 - min196 V
Control voltage 2 - max0 V
Control voltage 2 - min0 V
Frequency control voltage 1 - max60 Hz
Frequency control voltage 1 - min50 Hz
Incandescent lamp load - max720 W
Load fluorescent lamp - max303 VA
Load fluorescent lamp (duo circuit) - max541 VA
Load fluorescent lamp (parallel compensated) - max271 VA
Equipment heat dissipation, current-dependent1.6 W
Supply voltage - max240 V
Supply voltage - min240 V
Switching current (cos phi = 0.6) - max5 A
Control voltage 2 typeAC
Frequency control voltage 2 - max0 Hz
Frequency control voltage 2 - min0 Hz
