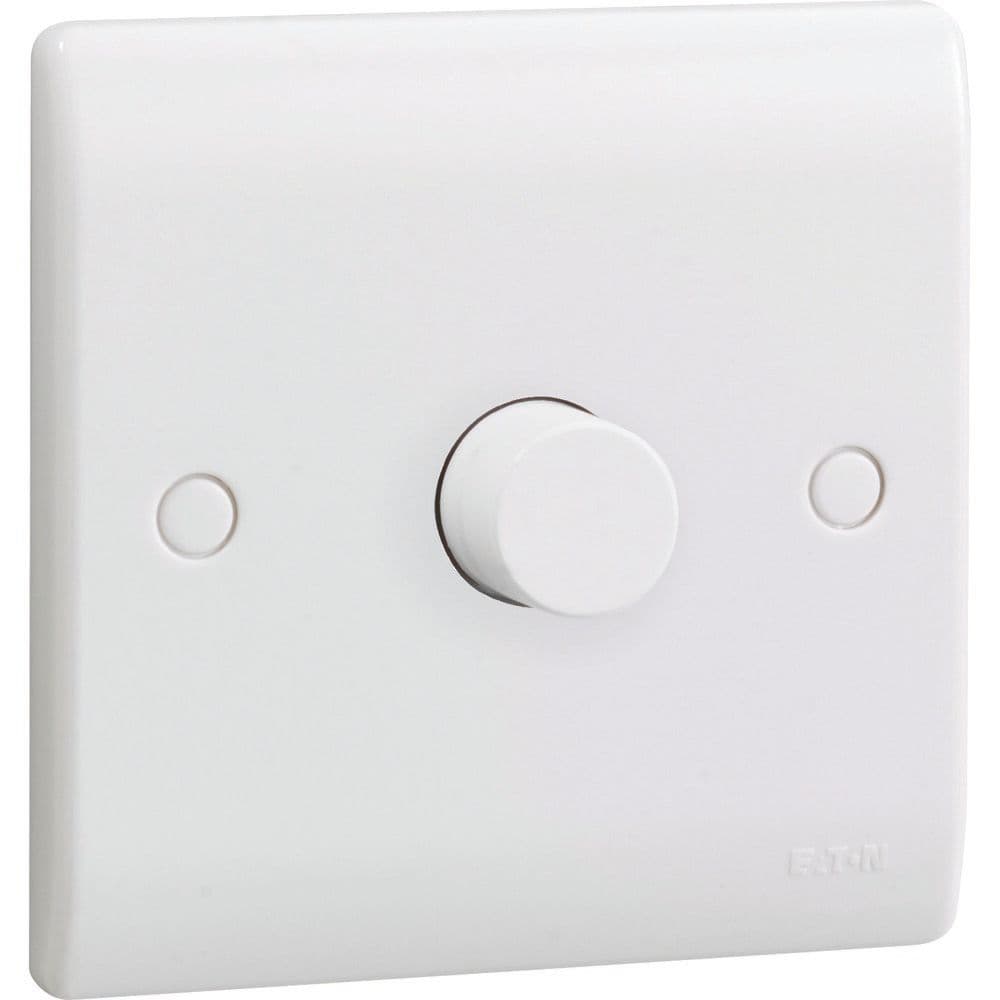

Eaton Moeller series White moulded range (PREMERA) - Wiring devices
رقم القطعة: P9142
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
Eaton Moeller series White moulded range (PREMERA) - Wiring devices
المواصفات
| Functions | Dimming phase cut-off |
|---|---|
| Special features | Terminal Screw Zinc Coated Steel with clear Passivation |
| Product Name | Eaton Moeller series White moulded range (PREMERA) - Wiring devices |
| Catalog Number | P9142 |
| Model Code | P9142 |
| EAN | 5010826125059 |
| Product Length/Depth | 45 mm |
| Product Height | 86 mm |
| Product Width | 86 mm |
| Product Weight | 0.14 kg |
| Compliances | RoHS conform |
| Certifications | IEC 60669-1 BS EN 60669-2-1 BS EN 60669-1 EMC IEC 60669-2-1 |
| Source URL | https://www.eaton.com/gb/en-gb/skuPage.P9142.html |
| Used with | Dimmer Premera white moulded |
| Features | Light value memory Halogen free Applicable with button |
| Type | DimmerPremera white moulded |
| Surface finishing | Matt |
| Degree of protection | IP3X IP20 |
| Surface protection | Untreated |
| Color | White |
| Mounting method | Flush mounted (plaster) |
| Material | Plastic |
| Material quality | Thermoplastic |
| Voltage rating | 200 V AC - 250 V AC |
| Connection type | Screw terminal |
| Nominal voltage - max | 250 V |
| RAL-number (Akin) | 0 |
| Fastening type | Screw mounting |
| Wattage | 60 - 400 W |
| Built-in installation box depth - min | 35 mm |
| Frequency rating - max | 50 Hz |
| Frequency rating - min | 50 Hz |
| Load type | Universal |
| Switch type | 2 way |
| Nominal voltage - min | 220 V |
| Head style | Slotted head |
| Assembly arrangement | Basic element with full cover plate |
| Base color | Gray |
| Base material | Thermoplastic |
| Terminal material | Brass |
| Number of modules (module system) | 0 |
| Number of gangs | 2 |
| Fixing centers | 60.3 mm |
| Front plate color/finishing | White |
| Front plate depth | 9 mm |
| Front plate material | Urea |
| Front plate/module dimensions | 86 mm x 86 mm |
| Method of operation | Turn button |
| Terminal capacity (LN and E) | 1 mm² (4x) or 1.5 mm² (3x) or 2.5 mm² (1x) |
| Recommended back box depth - min | 35 mm |
| Control voltage - max | 240 V |
| Control voltage - min | 60 V |
| Core cross section - max | 2.5 mm² |
| Core cross section - min | 1 mm² |
