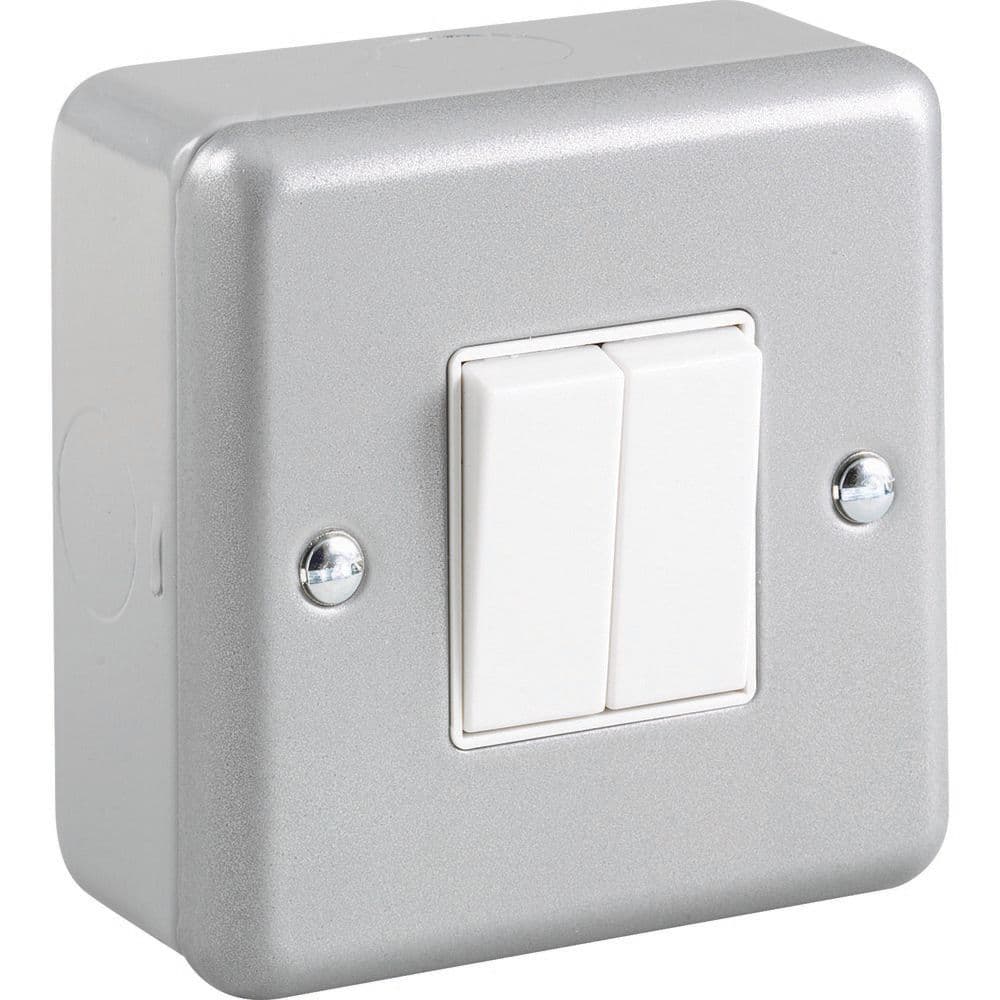

Eaton Moeller series Surface metal range (XTRA) - Wiring devices
رقم القطعة: X017MG
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
Eaton Moeller series Surface metal range (XTRA) - Wiring devices
المواصفات
| Special features | Zinc Coated Steel with clear Passivation |
|---|---|
| Product Name | Eaton Moeller series Surface metal range (XTRA) - Wiring devices |
| Catalog Number | X017MG |
| Model Code | X017MG |
| EAN | 5010826089290 |
| Product Length/Depth | 55 mm |
| Product Height | 86 mm |
| Product Width | 86 mm |
| Product Weight | 0.293 kg |
| Compliances | RoHS conform |
| Certifications | BS EN 60669-1 IEC 60669-1 |
| Source URL | https://www.eaton.com/gb/en-gb/skuPage.X017MG.html |
| Features | Push button switch Halogen free |
| Type | Switches Xtra Surface Metal |
| Surface finishing | Matt |
| Degree of protection | IP3X IP20 |
| Surface protection | Lacquered |
| Built-in depth | 25 mm |
| Color | Aluminum |
| Mounting method | Surface mounted (plaster) |
| Material | Urea Metal |
| Material quality | Aluminum |
| Amperage Rating | 10 AX |
| Voltage rating | 250 V AC |
| Connection type | Screw terminal |
| Nominal voltage - max | 240 V |
| Illumination | No |
| RAL-number (Akin) | 0 |
| Fastening type | Screw mounting |
| Built-in installation box depth - min | 35 mm |
| Switch type | Intermediate |
| Wiring system | Intermediate switch |
| Contact material | Nickel Silver |
| Head style | Slotted head |
| Assembly arrangement | Basic element with full cover plate |
| Base color | Gray |
| Base material | Thermoplastic |
| Terminal material | Brass |
| Number of modules (module system) | 0 |
| Number of rockers | 1 |
| Number of gangs | 1 |
| Fixing centers | 60.3 mm |
| Front plate color/finishing | Gray (epoxy powder coating for corrosion resistance) |
| Front plate depth | 9.6 mm |
| Front plate material | High quality steel |
| Front plate/module dimensions | 86 mm x 86 mm |
| Method of operation | Rocker/button |
| Function lighting | Illuminated (on) |
| Rocker color | White |
| Terminal capacity (LN and E) | 1.5 mm² (4x) or 2.5 mm² (2x) or 4 mm² (1x) |
| Label space/information surface | No |
| Lighting type | Not included |
| Recommended back box depth - min | 35 mm |
| Switching current of fluorescent lamps | 10 Ampere AC/DC |
