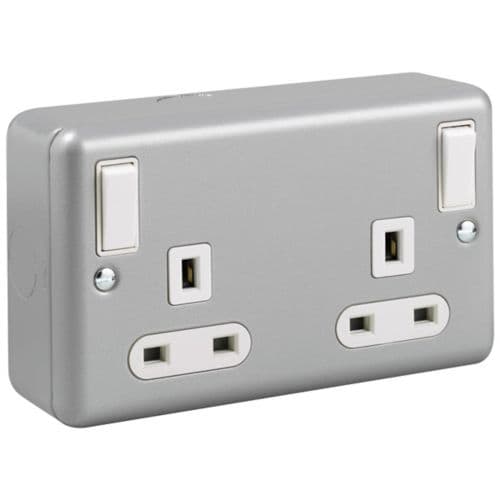

Eaton Moeller series Surface metal range (XTRA) - Wiring devices
رقم القطعة: X621RRMG
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
Eaton Moeller series Surface metal range (XTRA) - Wiring devices
المواصفات
| Special features | Zinc Coated Steel with clear Passivation |
|---|---|
| Product Name | Eaton Moeller series Surface metal range (XTRA) - Wiring devices |
| Catalog Number | X621RRMG |
| Model Code | X621RRMG |
| EAN | 5010826130763 |
| Product Length/Depth | 55 mm |
| Product Height | 86 mm |
| Product Width | 86 mm |
| Product Weight | 0.276 kg |
| Compliances | RoHS conform |
| Certifications | BS 1363-2 |
| Source URL | https://www.eaton.com/gb/en-gb/skuPage.X621RRMG.html |
| Features | Protective contact Halogen free |
| Type | Sockets, switched Xtra Surface Metal |
| Surface finishing | Matt |
| Surface protection | Lacquered |
| Color | Aluminum |
| Mounting method | Surface mounted (plaster) |
| Nominal current | 13 A |
| Material | Urea Metal |
| Model | British Standard |
| Fitted with: | Child-protection Loop through function On/Off switch |
| Material quality | Aluminum |
| Amperage Rating | 13 A |
| Voltage rating | 250 V AC |
| Connection type | Screwed terminal |
| Nominal voltage - max | 240 V |
| RAL-number (Akin) | 0 |
| Fastening type | Mounting with screw |
| Imprint/indication | Other |
| Number of phases | 2 |
| Built-in installation box depth - min | 35 mm |
| Frequency rating - max | 50 Hz |
| Frequency rating - min | 50 Hz |
| Fault current rating | 250 mA |
| Switch type | Double pole |
| Degree of protection (IP) | IP20 |
| Number of active pins (flat) | 0 |
| Number of active pins (round) | 0 |
| Contact material | Nickel Silver |
| Head style | Combination head |
| Base color | Gray |
| Base material | Thermoplastic |
| Terminal material | Brass |
| Number of modules (module system) | 0 |
| Number of gangs | 1 |
| Fixing centers | 60.3 mm |
| Front plate color/finishing | Gray (epoxy powder coating for corrosion resistance) |
| Front plate depth | 9.6 mm |
| Front plate material | High quality steel |
| Front plate/module dimensions | 86 mm x 86 mm |
| Rocker color | White |
| Terminal capacity (LN and E) | Earth on strap = 2.5 mm² (3x) or 4 mm² (1x) or 6 mm² (1x) L, N & E in base = 2.5 mm² (4x) or 4 mm² (2x) or 6 mm² (1x) |
| Recommended back box depth - min | 35 mm |
| Number of units | 1 |
| Number of socket outlets (switchable) | 1 |
| Special power supply | No special power supply |
