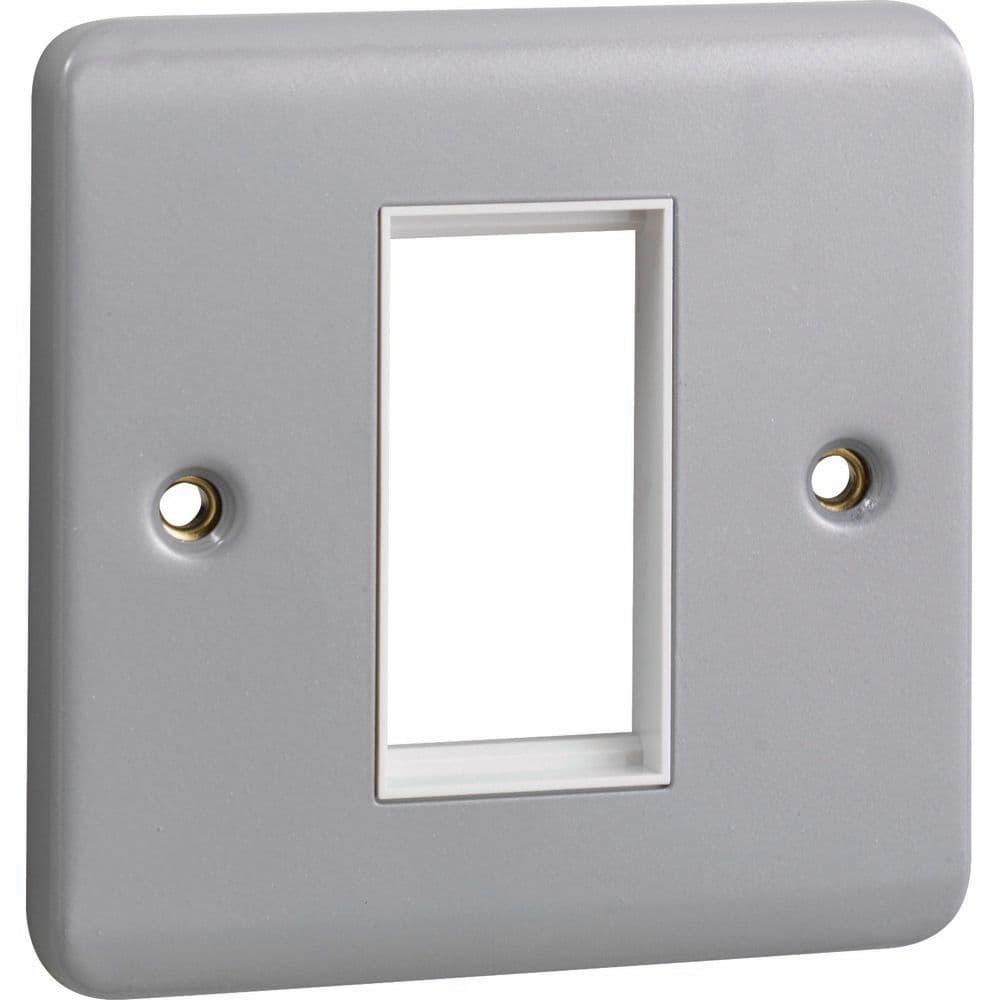

Eaton Moeller series Surface metal range (XTRA) - Wiring devices

Name: Eaton Moeller series Surface metal range (XTRA) - Wiring devices
Brand: Eaton
SKU: X912MG

رقم القطعة: X912MG

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series Surface metal range (XTRA) - Wiring devices

Special features	Zinc Coated Steel with clear Passivation
Product Name	Eaton Moeller series Surface metal range (XTRA) - Wiring devices
Catalog Number	X912MG
Model Code	X912MG
EAN	5010826130947
Product Length/Depth	215 mm
Product Height	35 mm
Product Width	150 mm
Product Weight	0.31 kg
Compliances	BS 5733 RoHS conform
Source URL	https://www.eaton.com/gb/en-gb/skuPage.X912MG.html
Suitable for	Flush-mounted installation Built-in installation
Features	Halogen free
Type	Premera Mix Module PlatesXtra Surface Metal
Surface finishing	Matt
Degree of protection	IP3X
Surface protection	Lacquered
Color	Aluminum
Material	Metal
Fitted with:	Mounting grid
Mounting position	Horizontal
Material quality	Aluminum
Voltage rating	250 V AC
RAL-number (Akin)	0
Fastening type	Screw mounting
Built-in height	195 mm
Built-in width	137 mm
Head style	Combination head
Terminal material	Brass
Number of gangs	12
Fixing centers	120.6 mm x 60.3 mm x 60.3 mm
Front plate color/finishing	Gray (epoxy powder coating for corrosion resistance)
Front plate depth	6 mm
Front plate material	High quality steel
Front plate/module dimensions	195 mm x 137 mm
Terminal capacity (LN and E)	2.5 mm² (4x) or 4 mm² (2x)
Recommended back box depth - min	35 mm
Bore hole opening diameter	0 mm
Number of modules horizontal (module system)	0
Number of modules vertical (module system)	0
Number of units	1
Number of units (horizontal)	0
Number of units (vertical)	0
