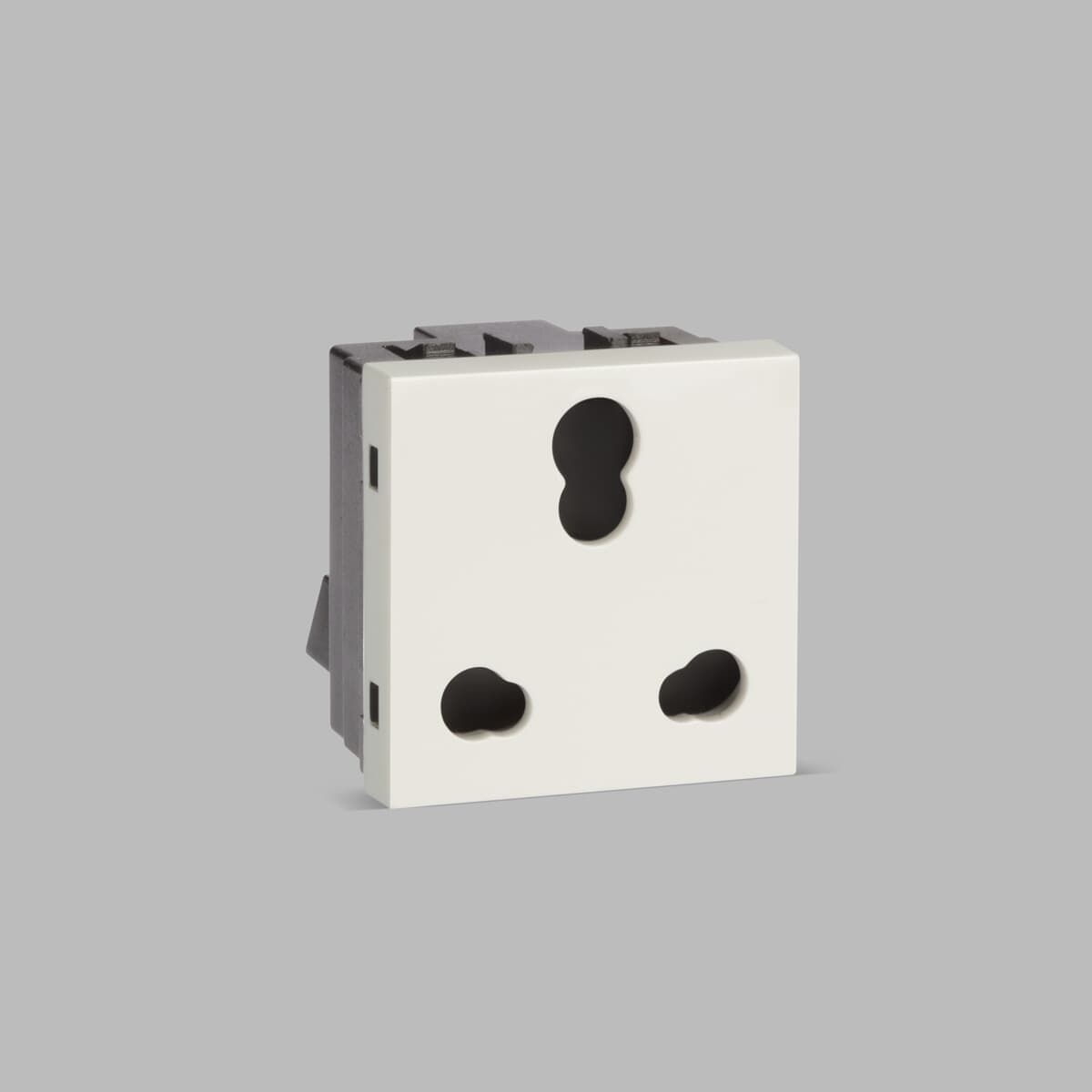

IIK20616 AN 6/16A Socket
رقم القطعة: 1SYK100001A1223
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
مأخذ كهربائي IIK20616 AN 6/16A Socket
المواصفات
| Extended Product Type | IIK20616 AN 6/16A Socket |
|---|---|
| Product ID | 1SYK100001A1223 |
| Catalog Description | Socket outlet with Hinged Lid Anthracite - Ivie |
| Long Description | Order Code: 1SYK100001A1223, Description:IIK20616 AN 6/16A Socket , Ivie,Anthrecite Grey painted |
| Display Name | IIK20616 AN 6/16A Socket |
| Product Net Width | 0.0441 m |
| Product Net Depth / Length | 0.0462 m |
| Product Net Height | 0.0461 m |
| Product Net Weight | 0.0403 kg |
| Rated Frequency (f) | 50 ... 50 Hz |
| Degree of Protection | IP20 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| ETIM 9 | EC000125 - Socket outlet |
| Source URL | https://new.abb.com/products/1SYK100001A1223/iik20616-an-6-16a-socket |
| ABB Taxonomy Path | Low Voltage Products and Systems > Wiring Accessories - Light Switch Ranges > Cover Plates and Control Elements > Socket Outlets |
| ABB Classification IDs | 9AAC910006, 9AAF626620, 9AAF628911 |
| ETIM 10 | EC000125 - Socket outlet |
| Rated Voltage (U<sub>r</sub>) | 240 V |
| Color | Anthracite |
| Rated Current (I<sub>n</sub>) | 16 A |
| Mounting Type | Flush Mounted |
| EU Data Act Applicability and Compliance | Not Applicable |
| REACH Information | No data - If REACH inform is not yet available for a certain product |
| Connection Type | Screw |
| RAL Number | RAL 9010 - Pure White |
| Number of Modules | 2 |
| Design Range | Ivie |
| Frequency (<i>f</i>) | 50 ... 50 Hz |
| Material | Thermoplastic |
| Type of Fastening | Snapper Mounting |
| Surface Finishing | Lacquered |
| Label Space Provided | Without Label Space |
| Number of Gangs | 1-gang |
| Number of Phases | 1-phase |
| Protection Cap Type | Hinged Lid |
