MACN422AT
رقم القطعة: 1SAL100996R9906
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف

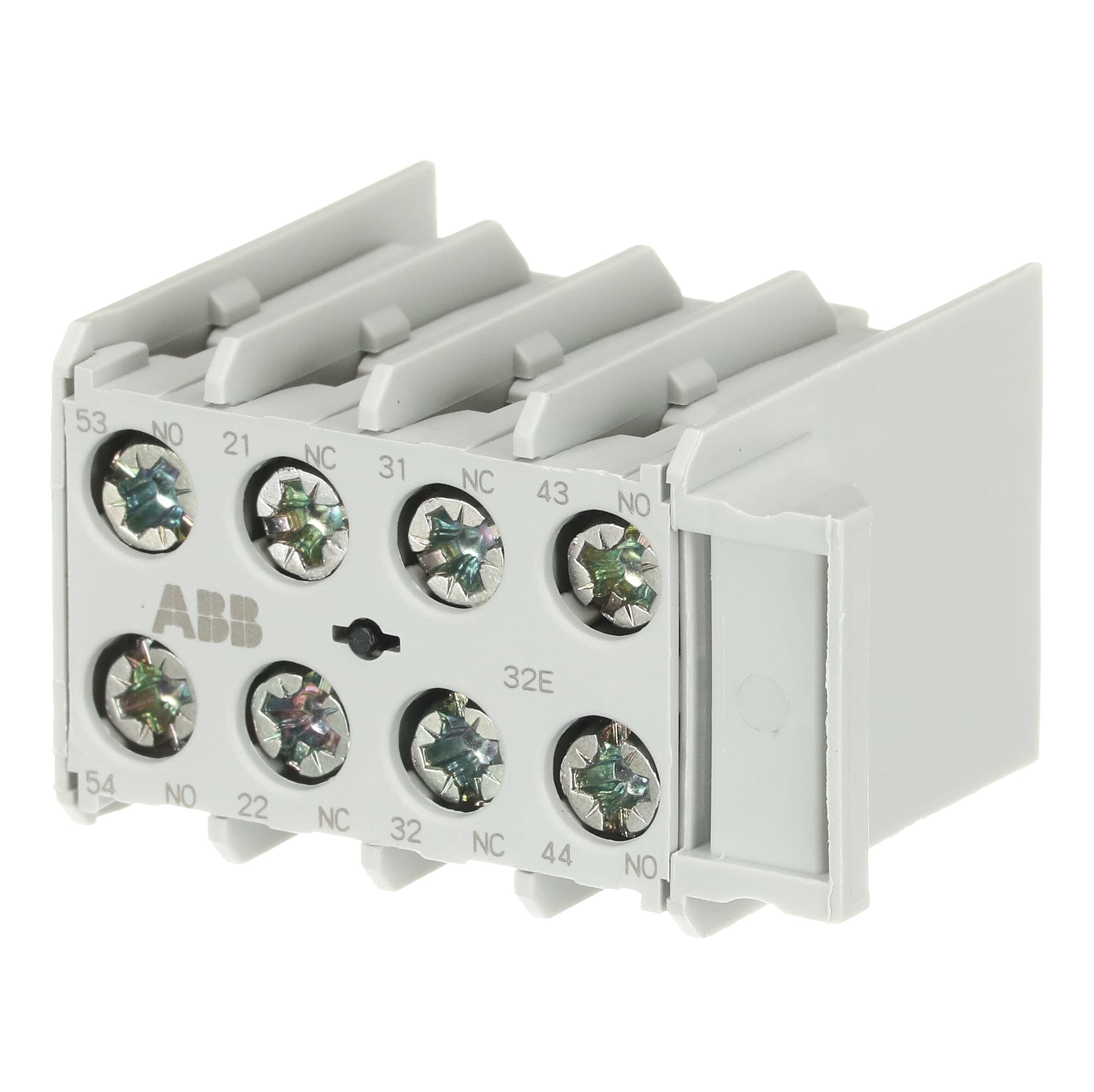

كونتاكت مساعد MACN422AT، رباعي الأقطاب
المواصفات
| Extended Product Type | MACN422AT |
|---|---|
| Product ID | 1SAL100996R9906 |
| EAN | 4013614550195 |
| Catalog Description | MACN422AT Auxiliary Contact 2NO/2NC screw terminal, front mounted |
| Long Description | The MACN422AT is an auxiliary contact for front mounting with 2NO/2NC contacts and screw terminals. Auxiliary contacts are used for the operation of auxiliary circuits and control circuits. The auxiliary contact meets the requirements of EN 50012. |
| Display Name | MACN422AT |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| EPLAN Data | 9AAC166197_EPLAN |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals | 2CDC102075M9901 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Product Net Width | 45 mm |
| Product Net Depth / Length | 35 mm |
| Product Net Height | 27 mm |
| Product Net Weight | 0.04 kg |
| Number of Main Contacts NO | 0 |
| Number of Main Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 2 |
| Number of Auxiliary Contacts NC | 2 |
| Number of Poles | 4P |
| Standards | IEC/EN 60947-1 |
| Rated Operational Voltage | Auxiliary Circuit 690 V AC |
| Rated Frequency (f) | Auxiliary Circuit 50 Hz |
| Rated Insulation Voltage (U<sub>i</sub>) | 750 V |
| Rated Impulse Withstand Voltage (U<sub>imp</sub>) | Auxiliary Circuit 6 kV |
| Maximum Electrical Switching Frequency | (AC-15) 360 cycles per hour |
| Power Loss | at Rated Operating Conditions per Pole 0.4 W |
| Wire Stripping Length | Auxiliary Circuit 9 mm |
| Degree of Protection | IP20 |
| Recommended Screw Driver | Auxiliary Circuit Pozidriv 2 |
| Tightening Torque | Auxiliary Circuit 0.8 N·m |
| Terminal Type | Screw Terminals |
| Product Name | Auxiliary Contact Block |
| Maximum Operating Voltage UL/CSA | 600 V AC |
| General Use Rating UL/CSA | (600 V AC) 10 A |
| Tightening Torque UL/CSA | Auxiliary Circuit 7 in·lb |
| Ambient Air Temperature | Operation -40 ... +70 °C |
| Maximum Operating Altitude Permissible | 3000 m |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| CB Certificate | 1SAA971003-2001 |
| Declaration of Conformity - CE | 1SAD101100-3201 |
| Declaration of Conformity - UKCA | 1SAD201100-3201 |
| RINA Certificate | 1SAA971000-0801 |
| UL Certificate | E48139-19960510 |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 100 mm |
| Package Level 1 Depth / Length | 30 mm |
| Package Level 1 Height | 100 mm |
| Package Level 1 Gross Weight | 0.045 kg |
| Package Level 1 EAN | 4013614550195 |
| Package Level 2 Units | box 10 piece |
| Package Level 2 Width | 100 mm |
| Package Level 2 Depth / Length | 150 mm |
| Package Level 2 Height | 105 mm |
| Package Level 2 Gross Weight | 0.45 kg |
| Package Level 2 EAN | 4013614550683 |
| Object Classification Code | K |
| ETIM 7 | EC000041 - Auxiliary contact block |
| ETIM 8 | EC000041 - Auxiliary contact block |
| ETIM 9 | EC000041 - Auxiliary contact block |
| eClass | V11.0 : 27371302 |
| UNSPSC | 39121522 |
| E-Number (Finland) | 3709488 |
| Source URL | https://new.abb.com/products/1SAL100996R9906/macn422at |
| ABB Taxonomy Path | Low Voltage Products and Systems > Control Products > Contactors > Mini Contactors > Accessories for Mini Contactors |
| ABB Classification IDs | 9AAC910006, 9AAC100112, 9AAC166197 |
| Conventional Free-air Thermal Current (I<sub>th</sub>) | Auxiliary Circuit 10 A |
| Rated Operational Current AC-15 (I<sub>e</sub>) | (240 V) 6 A |
| Minimum Switching Capacity | > 17 V |
| Connecting Capacity Auxiliary Circuit | Flexible with Ferrule 2x 0.75 ... 1.5 mm² |
| Suitable For | MC1 |
| Suitable for Product Class | Mini Contactors |
| Connecting Capacity Auxiliary Circuit UL/CSA | Stranded 18-12 AWG |
| Contact Rating UL/CSA | A600 |
| CQC Certificate | CQC2019010304193152 |
| Declaration of Conformity - CCC | 2020980304001603 |
