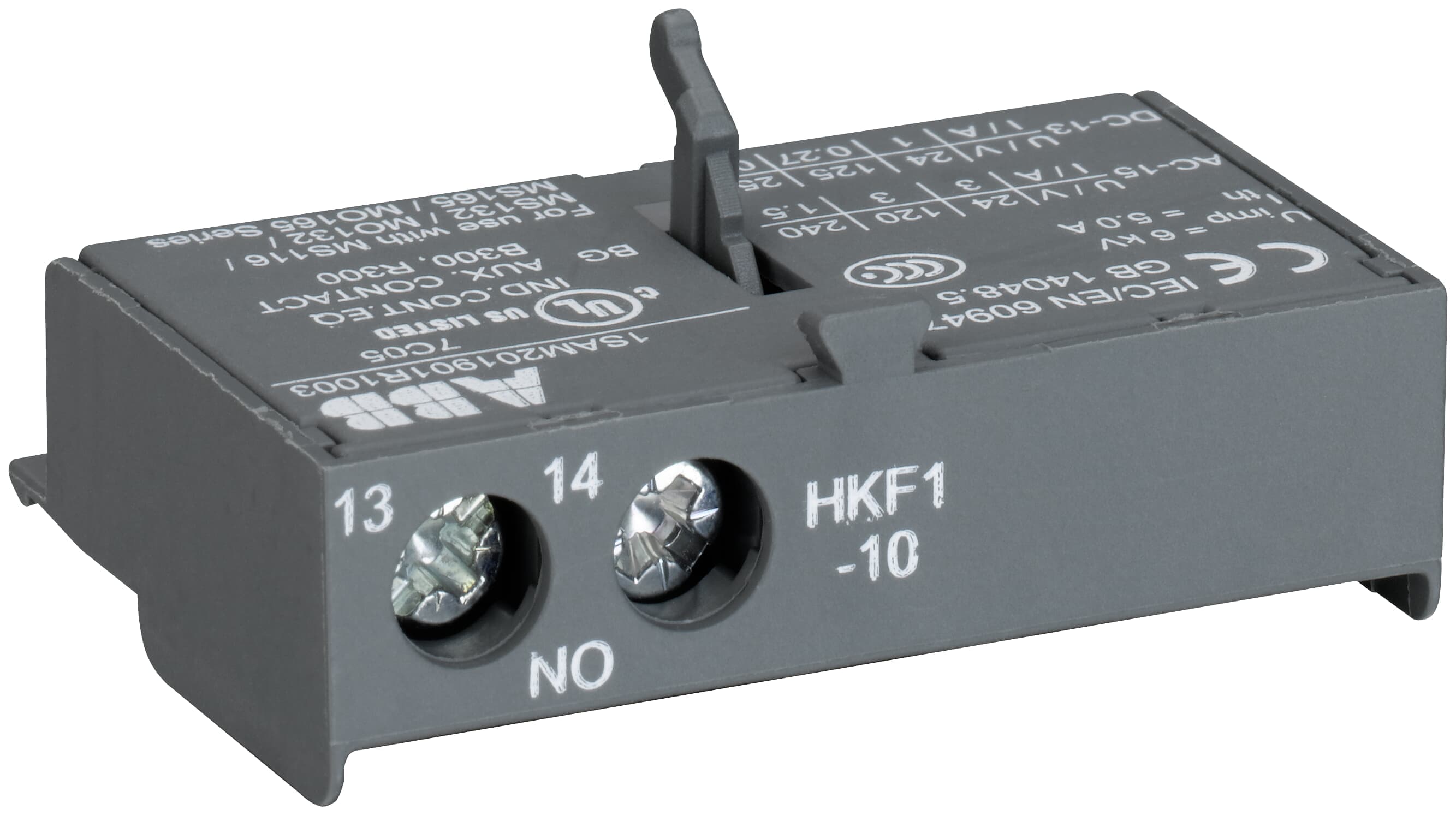

HKF1-10
رقم القطعة: 1SAM201901R1003
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
بادئ تشغيل محرك يدوي HKF1-10
المواصفات
| Extended Product Type | HKF1-10 |
|---|---|
| Product ID | 1SAM201901R1003 |
| EAN | 4013614502620 |
| Catalog Description | HKF1-10 Aux.-contact for front mounting |
| Long Description | Auxiliary contacts HKF1 with screw terminals change position with the main contacts of the manual motor starter. They are mounted on the front side of manual motor starters MS116, MS132 or MS165. Auxiliary contacts HKF1 are available as normally open or normally closed contacts. |
| Display Name | HKF1-10 |
| Country of Origin | India |
| Made To Order | No |
| Warranty Return | Product under warranty must be returned |
| Product Sales Status | Active |
| Quote Only | No |
| Stocked At Warehouses | INABB015EXPU |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85365080 |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals | 2CDC131011M6802 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Product Net Width | 45 mm |
| Product Net Depth / Length | 26.5 mm |
| Product Net Height | 12.5 mm |
| Product Net Weight | 0.013 kg |
| Number of Auxiliary Contacts NO | 1 |
| Number of Auxiliary Contacts NC | 0 |
| Rated Operational Voltage | 250 V |
| Rated Frequency (f) | Auxiliary Circuit DC |
| Rated Insulation Voltage (U<sub>i</sub>) | 250 V |
| Rated Impulse Withstand Voltage (U<sub>imp</sub>) | Auxiliary Circuit 6 kV |
| Electrical Durability | 100000 cycle |
| Mechanical Durability | Nr. Operations 100000 cycle |
| Wire Stripping Length | Auxiliary Circuit 8 mm |
| Degree of Protection | IP20 |
| Recommended Screw Driver | M3 |
| Tightening Torque | Auxiliary Circuit 0.8 ... 1.2 N·m |
| Terminal Type | Screw Terminals |
| Maximum Operating Voltage UL/CSA | Main Circuit 250 V AC |
| Tightening Torque UL/CSA | Auxiliary Circuit 7 in·lb |
| Ambient Air Temperature | Operation -25 ... +60 °C |
| Resistance to Shock acc. to IEC 60068-2-27 | 11 ms Pulse 25g |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SAA963005-4502 |
| RoHS Declaration | 1SAA963006-4501 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006539 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| A2L Certificate – IEC | 1SAA963000-4601 |
| CB Certificate | 1SAA963003-2002 |
| CCC Certificate | 2024010305656672 |
| Declaration of Conformity - CE | 1SAD101100-3410 |
| Declaration of Conformity - UKCA | 1SAD201100-3410 |
| RINA Certificate | 1SAA963002-0802 |
| UL Certificate | UL_E137861 |
| Package Level 1 Units | box 10 piece |
| Package Level 1 Width | 148 mm |
| Package Level 1 Depth / Length | 36 mm |
| Package Level 1 Height | 50 mm |
| Package Level 1 Gross Weight | 0.195 kg |
| Package Level 1 EAN | 4013614502637 |
| Package Level 2 Units | carton 500 piece |
| Package Level 2 Width | 280 mm |
| Package Level 2 Depth / Length | 395 mm |
| Package Level 2 Height | 210 mm |
| Package Level 2 Gross Weight | 10.125 kg |
| Package Level 2 EAN | 4013614522741 |
| Object Classification Code | Q |
| ETIM 9 | EC000041 - Auxiliary contact block |
| eClass | V11.0 : 27371302 |
| UNSPSC | 39121522 |
| IDEA Granular Category Code (IGCC) | 4743 >> Auxiliary contact block |
| E-Number (Norway) | 4364294 |
| Source URL | https://new.abb.com/products/1SAM201901R1003/hkf1-10 |
| ABB Taxonomy Path | Low Voltage Products and Systems > Control Products > Manual Motor Starters > Manual Motor Starters |
| ABB Classification IDs | 9AAC910006, 9AAC166172, 9AAC100130, 9AAF629500, 9AAC159109 |
| Connecting Capacity Auxiliary Circuit | Flexible with Ferrule 1/2x 0.75 ... 1.5 mm² |
| Connecting Capacity Auxiliary Circuit UL/CSA | Flexible 1/2x 16-14 AWG |
| Contact Rating UL/CSA | B300 |
| Resistance to Vibrations | 5g 3 ... 150 Hz |
| CQC Certificate | CQC2017010304032779 |
| Declaration of Conformity - CCC | 2020980304001251 |
| ETIM 10 | EC000041 - Auxiliary contact block |
| Instructions and Manuals (Part 3) | 1SBC100214C0202 |
| Mounting Position | 1 ... 6 |
| LR Certificate | 1SAA963001-0501 |
