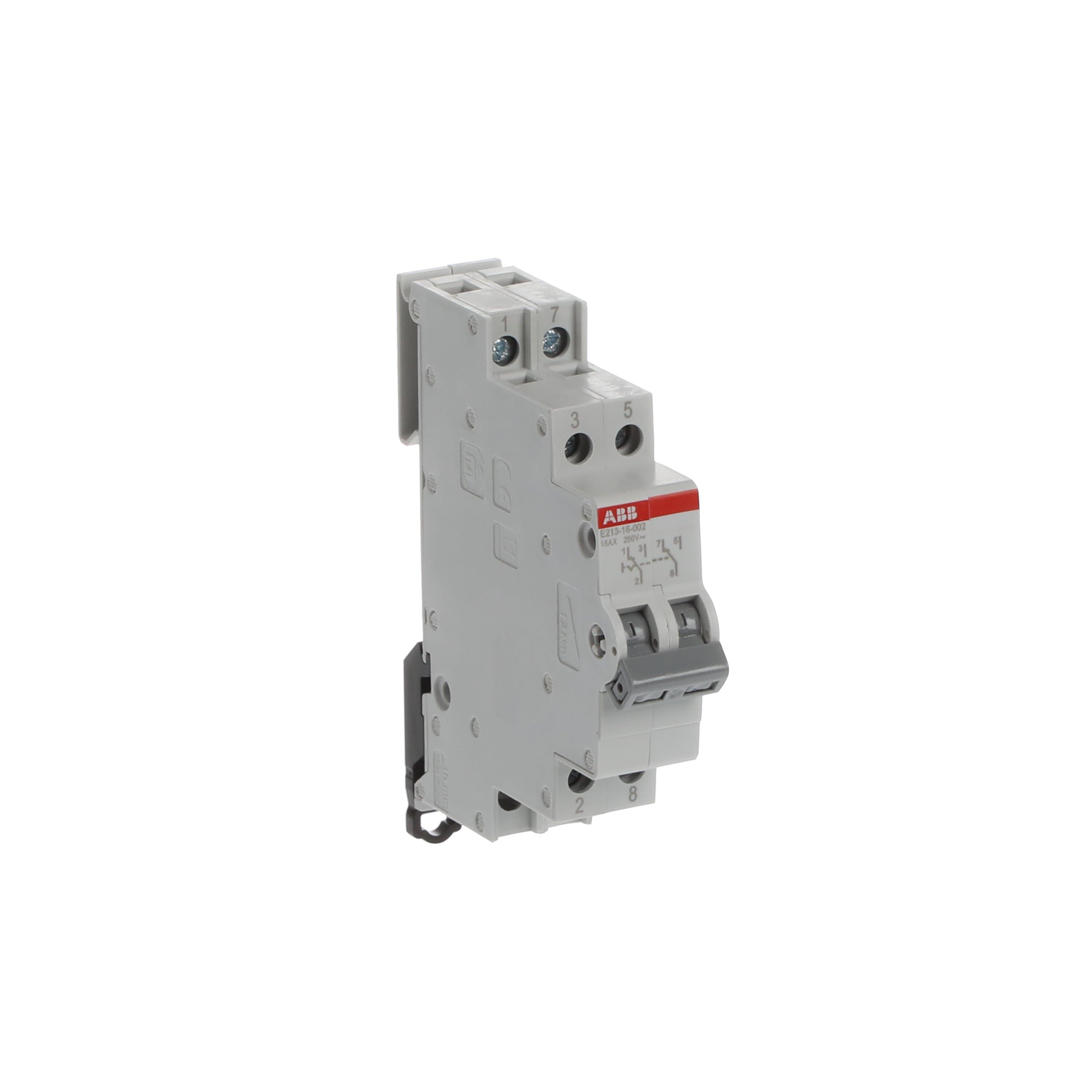

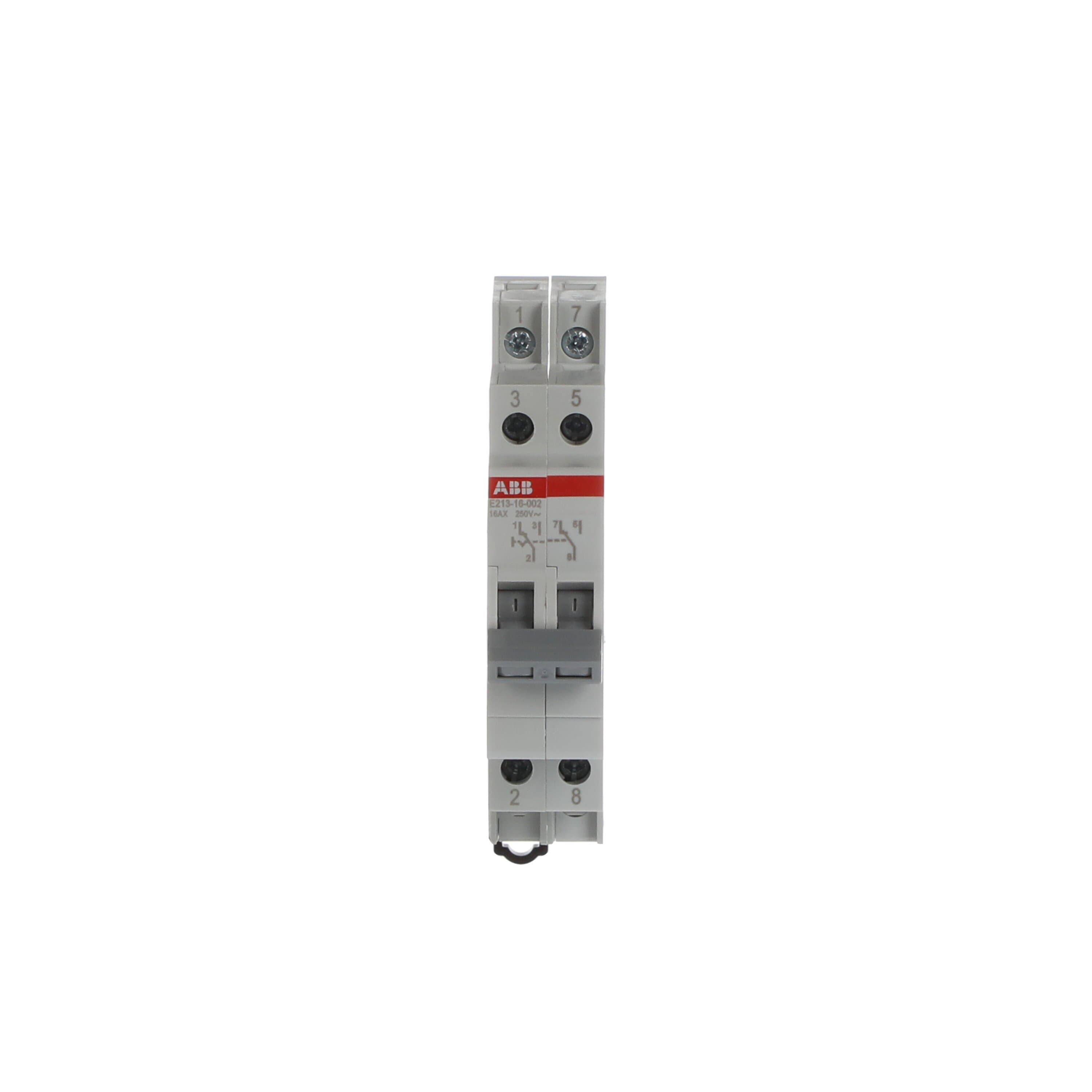

E213-16-002
رقم القطعة: 2CCA703045R0001
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
مفتاح تحكم E213-16-002، ثنائي الأقطاب
المواصفات
| Extended Product Type | E213-16-002 |
|---|---|
| Product ID | 2CCA703045R0001 |
| EAN | 7612270938704 |
| Catalog Description | Change over Switch, 16 A, acc. to EN 250 V AC, 0NO, 0NC, 0CO, El. Color: Grey, MW: 1 |
| Long Description | Change over switches according DIN EN 60669-1, VDE 0632 Part 1, Rated currents: 16/25 A, 250 VACPDC, Contacts: 1 CO/2 CO, Module width: 0,5/1 |
| Display Name | E213-16-002 |
| EPLAN Data | 9AAC407653_EPLAN |
| Data Sheet, Technical Information | 2CCC441003C0101 |
| Product Net Width | 18 mm |
| Product Net Depth / Length | 68 mm |
| Product Net Height | 85 mm |
| Product Net Weight | 87 g |
| Number of Main Contacts NO | 0 |
| Number of Main Contacts NC | 0 |
| Number of Poles | 2P |
| Standards | EN60669-1 |
| Rated Operational Voltage | acc. to EN 250 V AC |
| Rated Frequency (f) | 50/60 Hz |
| Power Loss | Total 0.82 W |
| Degree of Protection | IP20 |
| Tightening Torque | 1.2-1.5 N·m |
| Width in Number of Modular Spacings | 1 |
| Ambient Air Temperature | Operation -25...+55 °C |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| REACH Declaration | 2CCC005047D0201 |
| RoHS Declaration | 9AKK108472A5566 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Consumer |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| CB Certificate | 9AKK108466A3845 |
| CCC Certificate | 9AKK108466A3835 |
| Declaration of Conformity - CE | 2CCC441014D0201 |
| Declaration of Conformity - UKCA | 9AKK108467A6137 |
| Package Level 1 Units | box 10 piece |
| Package Level 1 Gross Weight | 966 g |
| Object Classification Code | S |
| ETIM 9 | EC001545 - Main switch for distribution board |
| eClass | V11.0 : 27142301 |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5293 >> Switch disconnector |
| E-Number (Finland) | 3602427 |
| E-Number (Norway) | 1429757 |
| E-Number (Sweden) | 2102797 |
| Source URL | https://new.abb.com/products/2CCA703045R0001/e213-16-002 |
| ABB Taxonomy Path | Low Voltage Products and Systems > Modular DIN Rail Products > Command and Signalling Devices > Control Switches, Pushbuttons and Indicator Lights > Switches, Pushbuttons and Indicator Lights, E210 |
| ABB Classification IDs | 9AAC910006, 9AAC407652, 9AAC407653 |
| ETIM 10 | EC001545 - Main switch for distribution board |
| Remarks | Sealable in the On and Off positions |
| Environmental Information | 2CCC441003C0201 |
| Rated Voltage (U<sub>r</sub>) | Minimum 250 V |
| Rated Current (I<sub>n</sub>) | 16 A |
| VDE Certificate | 9AKK107991A9822 |
| Number of Auxiliary Contacts CO (SPDT) | 2 |
| Connecting Capacity | Solid 1x1…6 mm² |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| RoHS Date | 20260417 |
| REACH Date | 20260414 |
| Built-In Depth (<em>t<sub>2</sub></em>) | 68 mm |
| Input Voltage Type | AC |
| Switch Type | Double Interrupting Contacts |
| Material of Conductor | Copper |
| Cover Color | Grey |
| Number of Contacts CO | 0 |
| Number of Contacts NC | 0 |
| Number of Contacts NO | 0 |
| Control Element Color | Grey |
| E-Number (Switzerland) | 437163238 |
