MS132-16
رقم القطعة: 1SAM350000R1011
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف

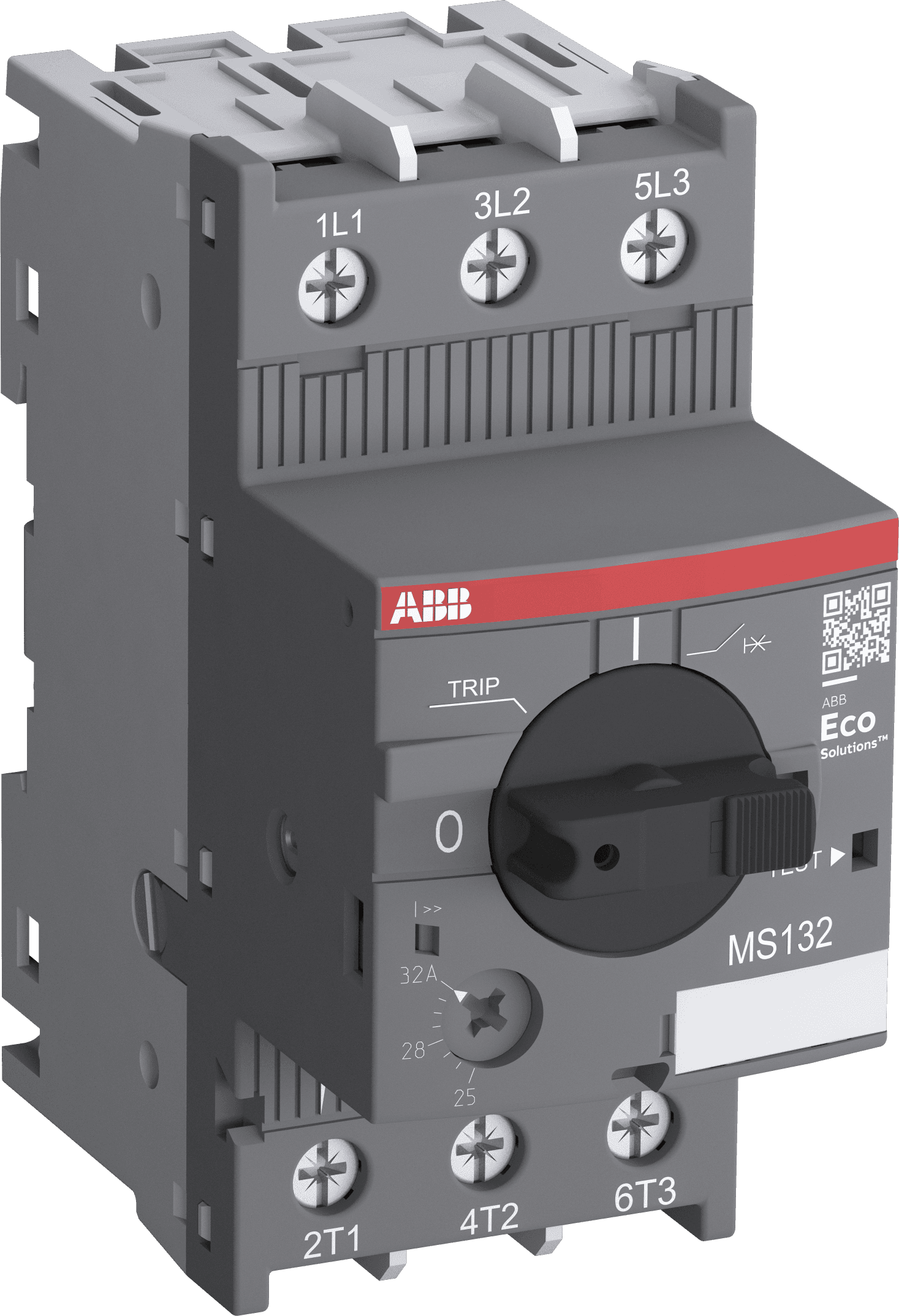

بادئ تشغيل محرك يدوي MS132-16، ثلاثي الأقطاب
المواصفات
| Extended Product Type | MS132-16 |
|---|---|
| Product ID | 1SAM350000R1011 |
| EAN | 4013614400117 |
| Catalog Description | MS132-16 Manual Motor Starter 10 ... 16 A |
| Long Description | The MS132-16 manual motor starter (also known as motor protection circuit breaker or manual motor protector) is a compact 45 mm width device with a rated operational current of Ie = 16.0 A. This device is used to manually switch on and off motors and to protect them reliably and without the need for a fuse from short-circuits, overload and phase failures. The manual motor starter offers a rated service short-circuit breaking capacity Ics = 100 kA at 400 VAC and trip class 10. Further features are the build-in disconnect function, temperature compensation, trip-free mechanism and a rotary handle with a clear switch position indication. The manual motor starter is suitable for three- and single-phase applications. The handle is lockable to protect against unauthorized changes. Auxiliary contacts, signaling contacts, undervoltage releases, shunt trips, 3-phase bus bars, power in-feed blocks and terminal spacers are available as accessory. |
| Display Name | MS132-16 |
| Country of Origin | Germany |
| Made To Order | No |
| Warranty Return | Product under warranty must be returned |
| Product Sales Status | Active |
| Quote Only | No |
| Stocked At Warehouses | AETAD009EXPU |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362010 |
| Data Sheet, Technical Information | 2CDC131021D0202 |
| Instructions and Manuals | 2CDC131022M6802 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Product Net Width | 45 mm |
| Product Net Depth / Length | 86.55 mm |
| Product Net Height | 97.8 mm |
| Product Net Weight | 0.31 kg |
| Number of Poles | 3P |
| Standards | IEC/EN 60947-1 |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Frequency (f) | Main Circuit 50 Hz |
| Rated Operational Current AC-3 (I<sub>e</sub>) | 16 A |
| Rated Operational Power AC-3 (P<sub>e</sub>) | (400 V) Three Phase 7.5 kW |
| Rated Insulation Voltage (U<sub>i</sub>) | 690 V |
| Rated Impulse Withstand Voltage (U<sub>imp</sub>) | Main Circuit 6 kV |
| Electrical Durability | 50000 cycle |
| Mechanical Durability | Nr. Operations 100000 cycle |
| Power Loss | at Rated Operating Conditions per Pole 1.1 ... 2.8 W |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| Connecting Capacity Main Circuit | Flexible with Ferrule 1/2x 0.75 ... 6 mm² |
| Wire Stripping Length | Main Circuit 10 mm |
| Degree of Protection | Housing IP20 |
| Recommended Screw Driver | Pozidriv 2 |
| Tightening Torque | Main Circuit 2 N·m |
| Terminal Type | Screw Terminals |
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V AC |
| General Use Rating UL/CSA | (600 V AC) 16 A |
| Horsepower Rating UL/CSA | (200 V AC) Three Phase 3 Hp |
| Connecting Capacity Main Circuit UL/CSA | Flexible 1/2x 16-8 AWG |
| Tightening Torque UL/CSA | Main Circuit 18 in·lb |
| Full Load Amps Motor Use | (200 V AC) Three Phase 11 A |
| Ambient Air Temperature | Around the Enclosure 0 ... +40 °C |
| Maximum Operating Altitude Permissible | 2000 m |
| Resistance to Shock acc. to IEC 60068-2-27 | 11 ms Pulse 25g |
| Pollution Degree | 3 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SAA963005-4502 |
| RoHS Declaration | 1SAA963006-4501 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006539 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill |
| EcoSolutions Profile | 1SFC100125C0353 |
| End Of Life Disassembling Instructions | 1SAC200332H0001 |
| Environmental Product Declaration - EPD | 1SAC200360H0001 |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 80 % |
| A2L Certificate – IEC | 1SAA963000-4601 |
| ABS Certificate | 1SAA963001-0101 |
| CB Certificate | 1SAA963002-2002 |
| CCC Certificate | 2024010307654702 |
| Declaration of Conformity - CE | 1SAD101100-3402 |
| Declaration of Conformity - UKCA | 1SAD201100-3402 |
| RINA Certificate | 1SAA963002-0802 |
| UL Certificate | E137861-20090225 |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 92 mm |
| Package Level 1 Depth / Length | 102 mm |
| Package Level 1 Height | 50 mm |
| Package Level 1 Gross Weight | 0.325 kg |
| Package Level 1 EAN | 4013614400117 |
| Package Level 2 Units | carton 40 piece |
| Package Level 2 Width | 280 mm |
| Package Level 2 Depth / Length | 395 mm |
| Package Level 2 Height | 210 mm |
| Package Level 2 Gross Weight | 13.386 kg |
| Package Level 2 EAN | 4013614409011 |
| Object Classification Code | F |
| ETIM 9 | EC000074 - Motor protection circuit-breaker |
| eClass | V11.0 : 27370401 |
| UNSPSC | 39121521 |
| IDEA Granular Category Code (IGCC) | 4731 >> Manual Starters |
| E-Number (Finland) | 3705995 |
| E-Number (Norway) | 4364080 |
| E-Number (Sweden) | 3112127 |
